141
ELECTRICAL AND IGNITION
ELECTRIC START TESTS
7

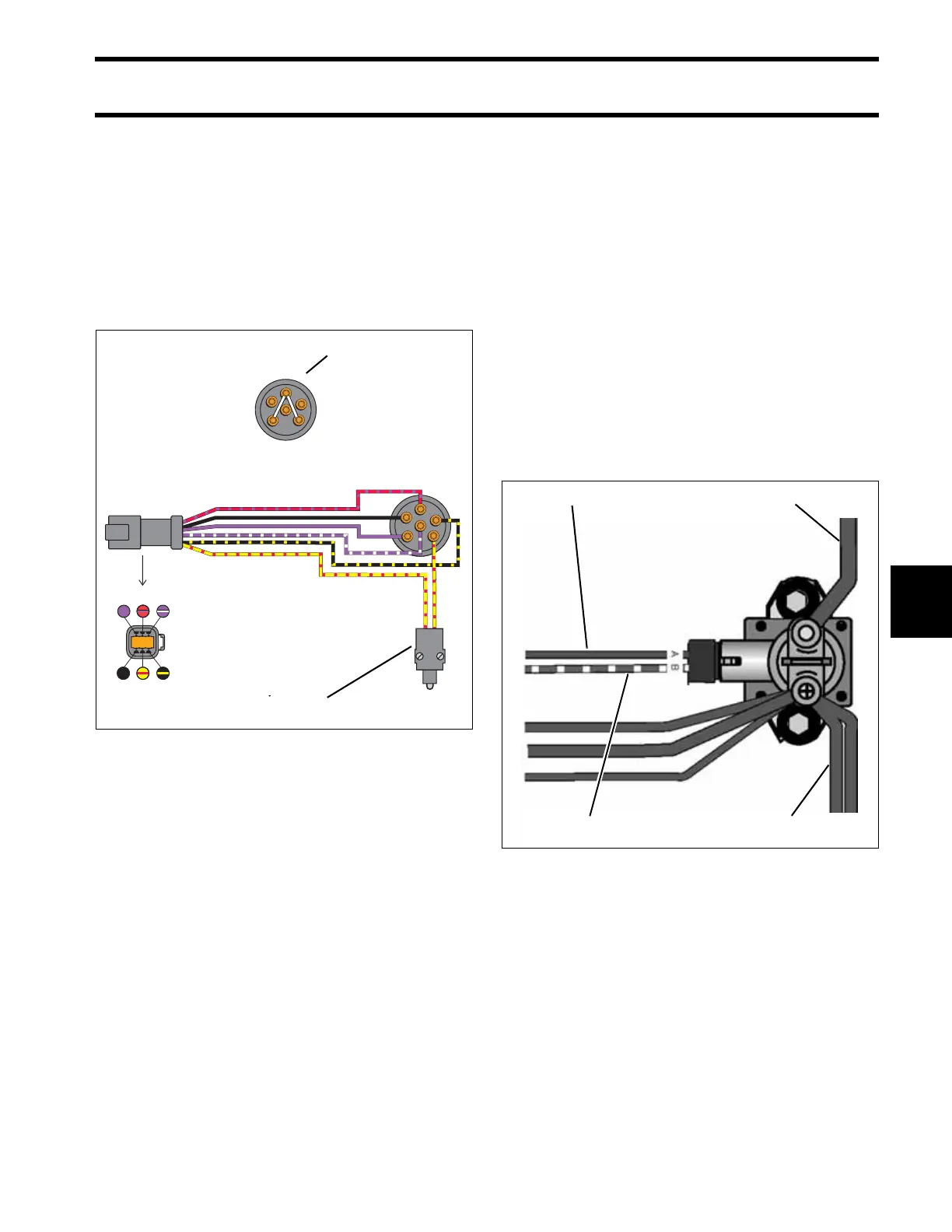

Key Switch, START Position
Key switch START:
Switches 12 V to terminal “S” of key switch and
to the neutral safety switch (in remote control).
A closed neutral safety switch provides 12 V to
the engine wire harness yellow/red wire and
terminal 26 of EMM J-1A connector.
EMM grounds brown/white wire to activate sole-
noid.
ELECTRIC START TESTS
Starter Solenoid Test
Disconnect the B+ (POS) battery cable at the bat-
tery.
IMPORTANT: Disconnect all wiring from sole-
noid terminals before proceeding with this test.
Use a digital multimeter to measure resistance.
Put one meter lead on the starter positive (+)
cable terminal and the other lead on the battery
positive (+) cable terminal:
Meter must not show continuity (high reading).
If meter shows continuity (low reading), replace
the solenoid.
Apply B+ to terminal “A” of solenoid and ground
(NEG) to terminal “B” of solenoid. Measure resis-
tance between the starter positive (+) cable termi-
nal and the positive battery (+) cable terminal.
The solenoid must close with an audible click.
Meter must show continuity (low reading).
If meter shows no continuity (high reading),
replace the solenoid.
1. Ignition switch, START position – Continuity
between terminals “B” and “A”; “B” and “S”
2. Terminal “S”, 12 V
3. Neutral safety switch
000691R
1
2 3
B
M
M
C
A
S
M
B
S
A
C
M
456
123
1. “A” terminal, B+ (purple)
2. “B” terminal, NEG (brown/white)
3. Starter positive (+) cable terminal
4. Battery positive cable (B+) terminal
004121
13
2 4
