157
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING
7

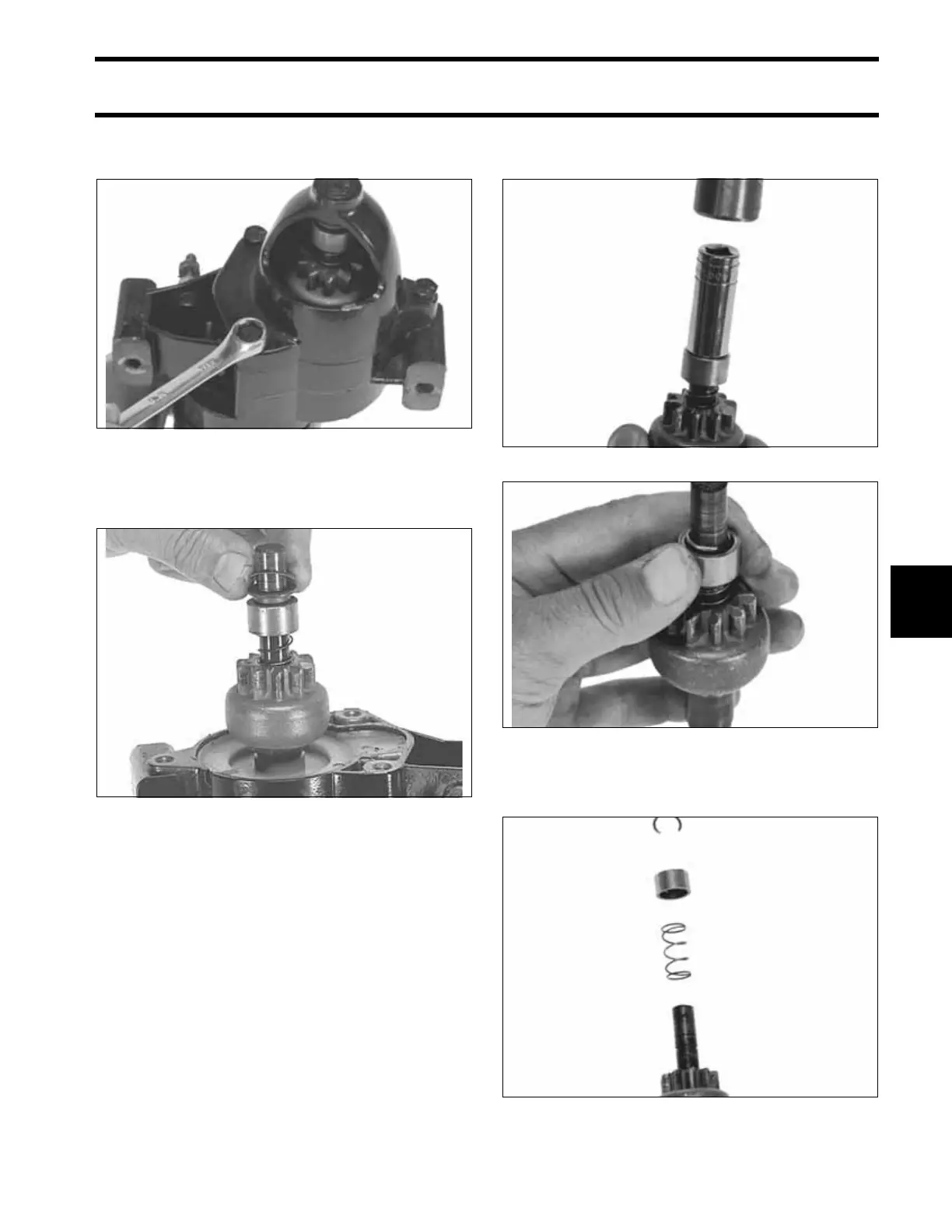

Remove the screws, lock washers, and pinion
housing.
Starter Disassembly
Lift and remove the wave washer and bushing.
Place an appropriate-sized deep socket on the
spacer.
Hit the socket with a mallet to lower the spacer
and expose the retaining ring under the spacer.
Remove the retaining ring, spacer, and spring
from pinion shaft.
30373
30372
30371
30360
30369
