233
POWERHEAD

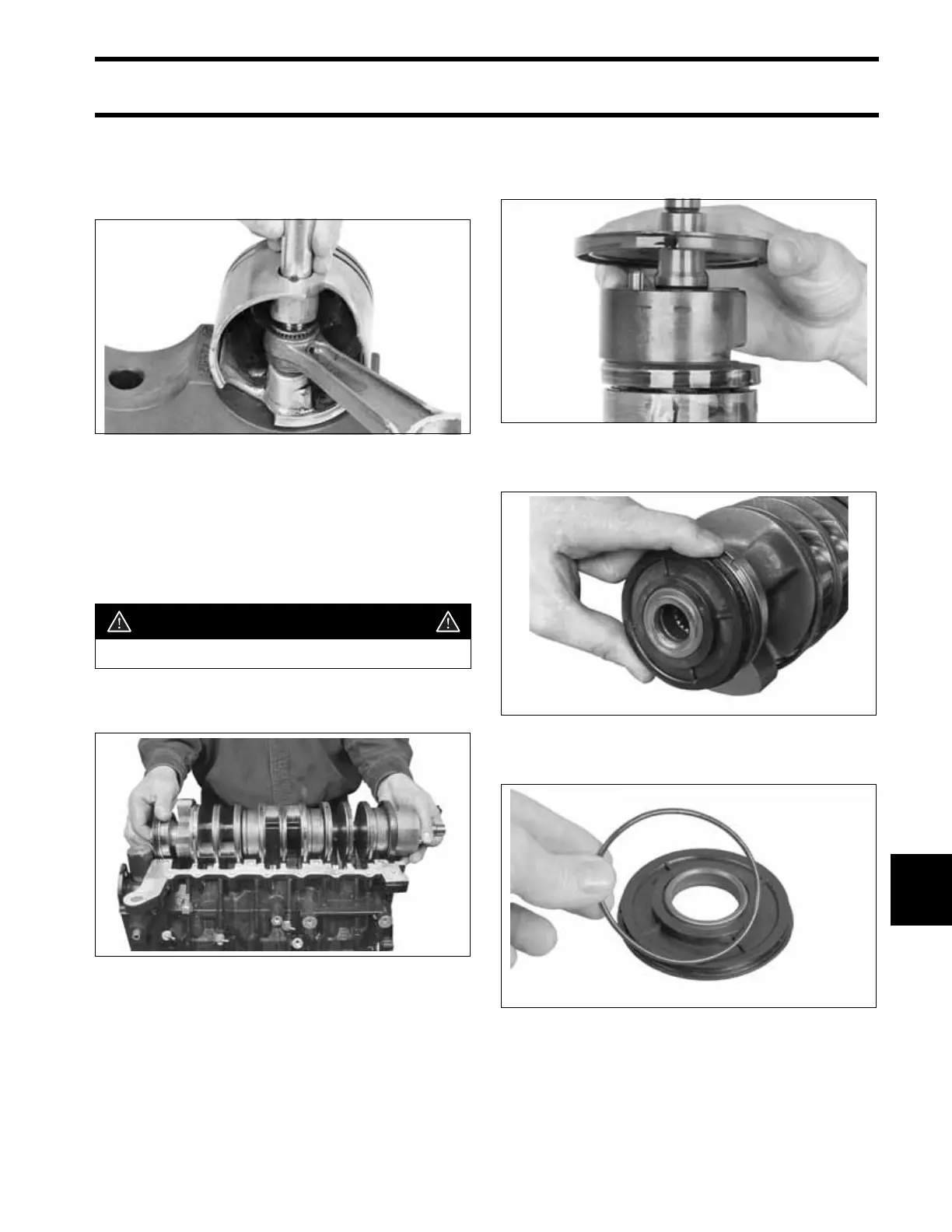

POWERHEAD DISASSEMBLY
11
The wrist pin fit is loose on both sides. Push the
wrist pin through to free the piston from the con-
necting rod. If necessary, use Wrist Pin Pressing
Tool, P/N 326356, to remove the wrist pin bearing.
Be careful not to lose any of the 28 needle bear-
ings or the two wrist pin washers. If any of the
bearings are worn or lost, replace all 28 bearings
during reassembly.
Crankshaft Removal
Carefully lift crankshaft straight up and remove
from crankcase.
Remove upper seal from crankshaft. Discard the
seal. A new upper seal must be installed on
assembly.
Remove the lower bearing seal housing.
Remove the housing O-ring. Discard O-ring.
46520
WARNING
Wear safety glasses to avoid injury.
005285
49068
005280
002044
To Next Page
