315

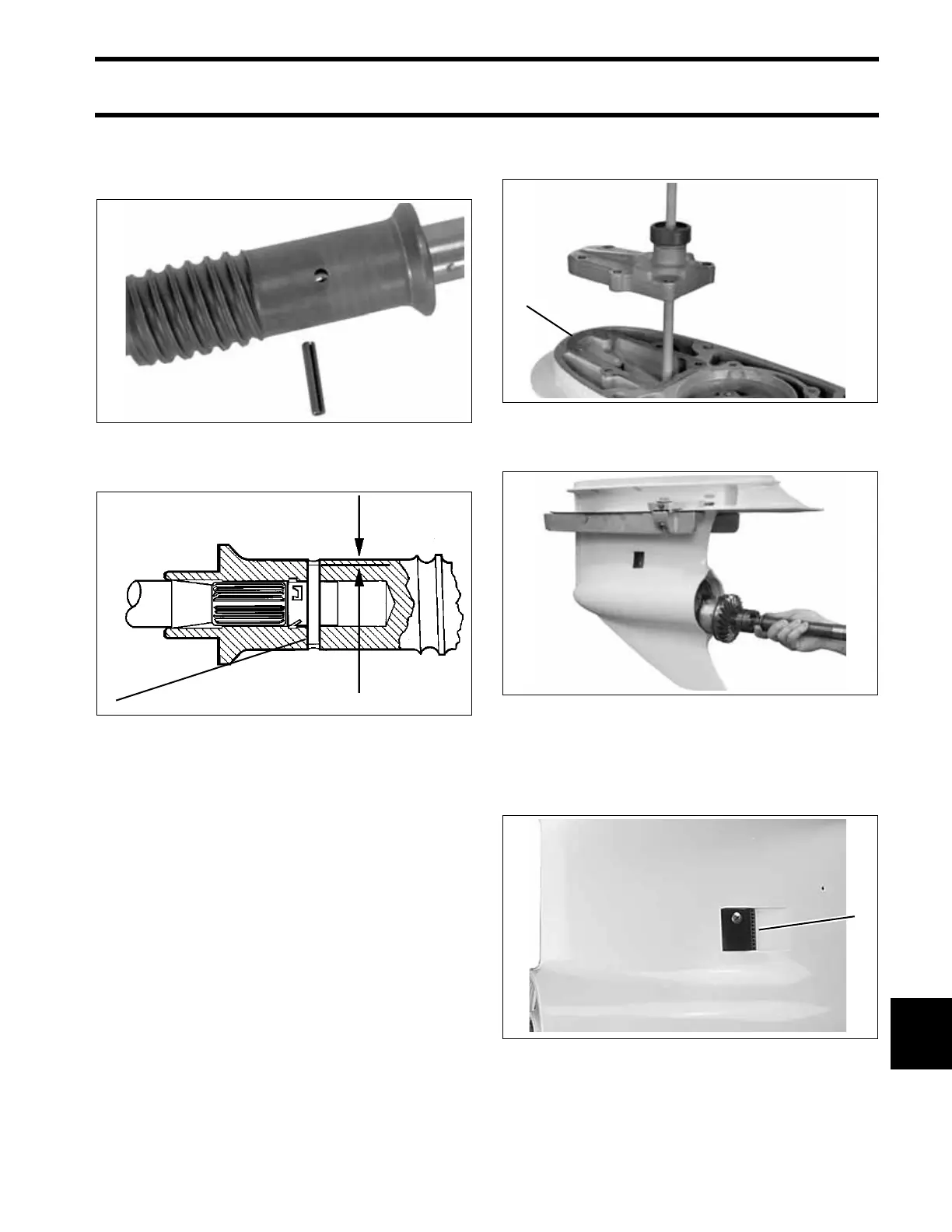

GEARCASE – STANDARD ROTATION
GEARCASE DISASSEMBLY
13
Install the upper driveshaft into the lower drive-
shaft, aligning the holes in the driveshaft retainer
and the lower driveshaft.
Install the roll pin to the specified dimension.
Shift Housing, Gear and
Propeller Shaft Removal
Push down on the shift rod. This will move the
detent lever downward to clear the inside of the
gearcase when the shaft assembly is pulled out.
Unscrew the shift rod from the detent lever.
Remove screws, cover, and shift rod from the
gearcase.
Discard the cover gasket. Remove and discard
the shift rod O-ring from inside of cover.
Remove propeller shaft assembly from gearcase.
Water Intake Screens
Remove and clean water intake screens. Replace
if damaged.
29330
1. Roll pin DR4610
1
0.125 in.
(3.2 mm)
1. Cover gasket COA3141
006839
1. Water intake screen 001991
1
1
