Evinrude E-TEC E115DSLSCR User Manual

320
GEARCASE – STANDARD ROTATION
SHIFTER, BEARING AND SEAL SERVICE
“S2” TYPE GEARCASE
Use a mallet to drive the bearing from the hous-
ing.
“O”, “L,”, “L2”, “M” AND “M2” TYPE
GEARCASES
Use a 7/8 in. wrench to hold the remover in place.
Use a 3/4 in. wrench to turn flange nut clockwise.
Draw the bearing up from the housing.

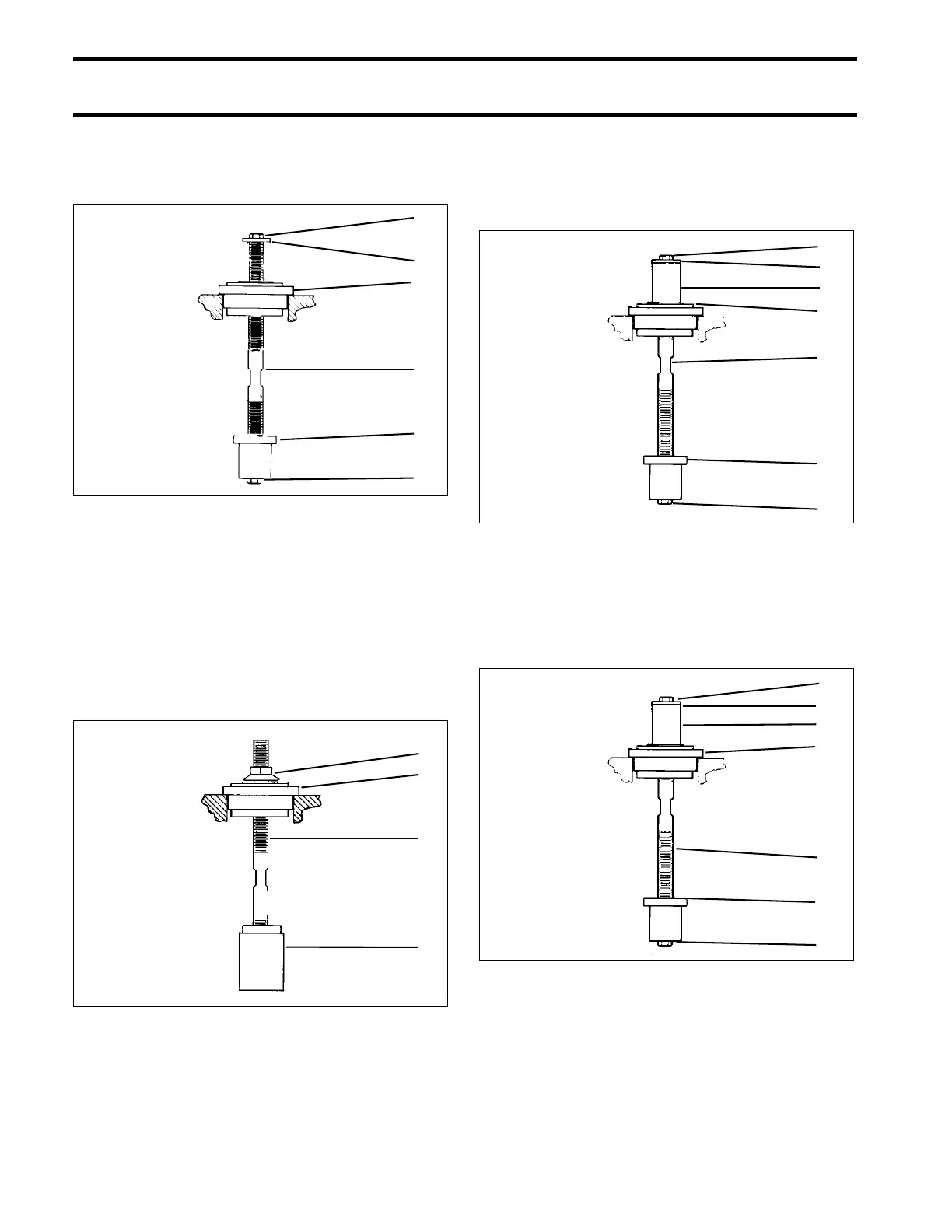

Pinion Bearing Installation
Assemble the following components of Pinion
Bearing Remover and Installer, P/N 391257, as
shown:
1. 1/4-20 x 1/2 in. Hex Head Screw
2. 1 in. O.D. Flat Washer
3. Plate, P/N 391260
4. Rod, P/N 326582
5. Installer/Remover, P/N 326574
6. 1/4-20 x 1 1/4 in. Hex Head Screw
824163
1. Flange nut, P/N 326586
2. Plate, P/N 391260
3. Rod, P/N 326582
4. Remover, P/N 326579
DR3419
1
2
3
4
5
6
1
2
3
4
“S2” Type Gearcases
1. 1/4-20 X 1/2 in. Hex head screw
2. 1 in. O.D. Flat washer
3. Spacer, P/N 341437
4. Plate, P/N 391260
5. Rod, P/N 326582
6. Installer/Remover, P/N 326574
7. 1/4-20 X 1 1/4 in. Hex head screw
824182
“O”, “L”, “L2”, “M” and “M2” Type Gearcases
1. 1/4-20 X 1/2 in. Hex head screw
2. 1 in. O.D. Flat washer
3. Spacer; P/N 350932 “M” and “M2”
P/N 326584 “L” and “L2”
4. Plate and Bearing P/N 391260
5. Rod P/N 326582
6. Installer/Remover, P/N 350958
7. 1/4-20 X 1 1/4 in. Hex head screw
824182
1
2
3
4
5
6
7
1
2
3*
4
5
6
7
