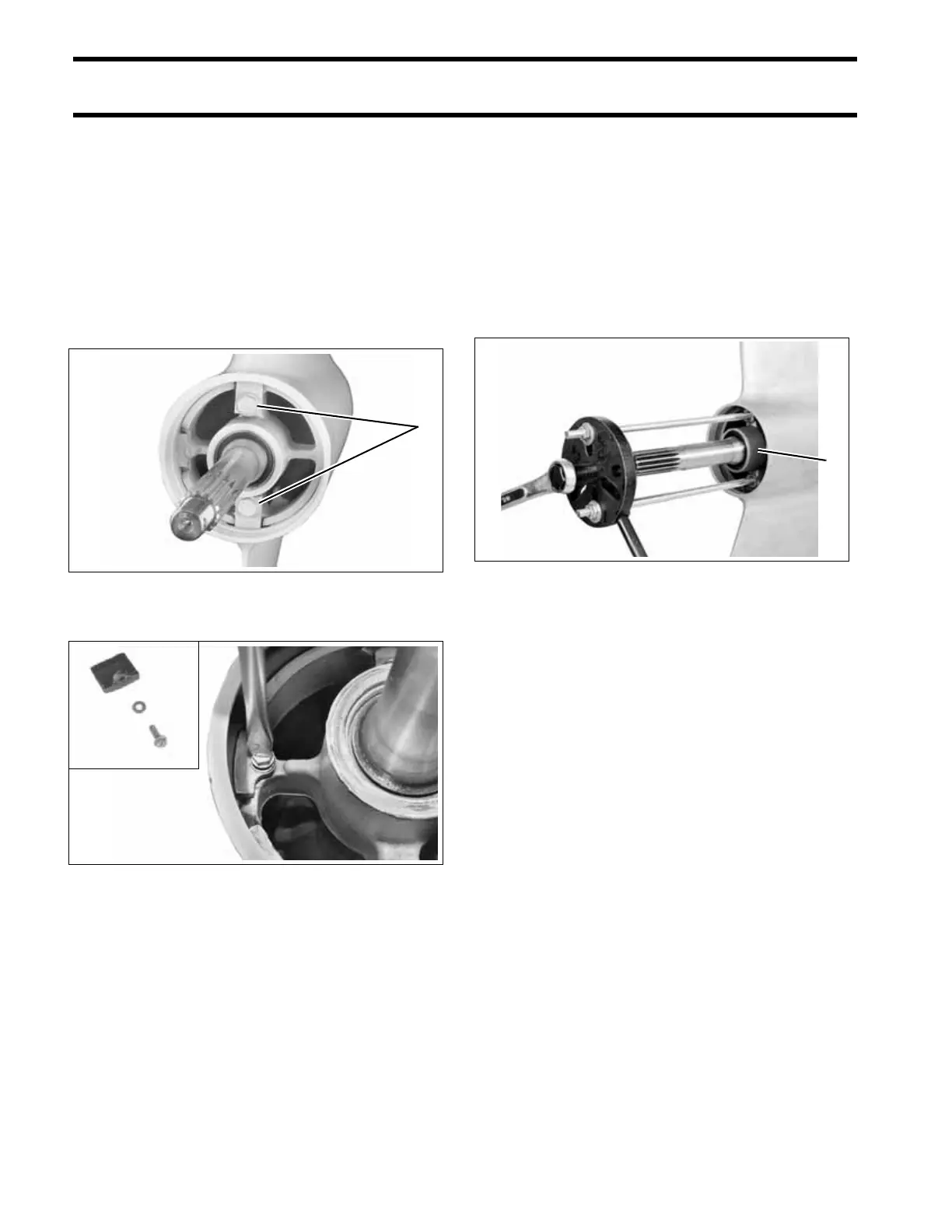

308
GEARCASE – STANDARD ROTATION
GEARCASE DISASSEMBLY
Propeller Shaft Bearing Housing
Removal – “S2”, “O”, “L” and “M”
Type
IMPORTANT: Identify gearcase type before dis-
assembly. For counter rotation gearcases, refer to
GEARCASE DISASSEMBLY on p. 338.
Remove the two screws, washers, and retainers
holding the propeller shaft bearing housing.
Remove wedge, screw, and washer.
Remove the propeller shaft bearing housing from
the gearcase using the following:
Puller body, screw, and handle from Universal
Puller Set, P/N 378103.
Two 5/16-18 x 11 in. (279 mm) threaded rods,
two large 5/16 in. I.D. flat washers, and two
5/16-18 nuts (obtain locally).
Assemble components and pull the bearing hous-
ing from the gearcase.
Remove the thrust washer, thrust bearing, and
reverse gear from gearcase.
1. Retainer tab screws 001989
DSM02291
DSC02361
1
1. Bearing housing – slides in or out 22775
1
