380
TRIM AND TILT
SERVICING – THREE PISTON SYSTEM

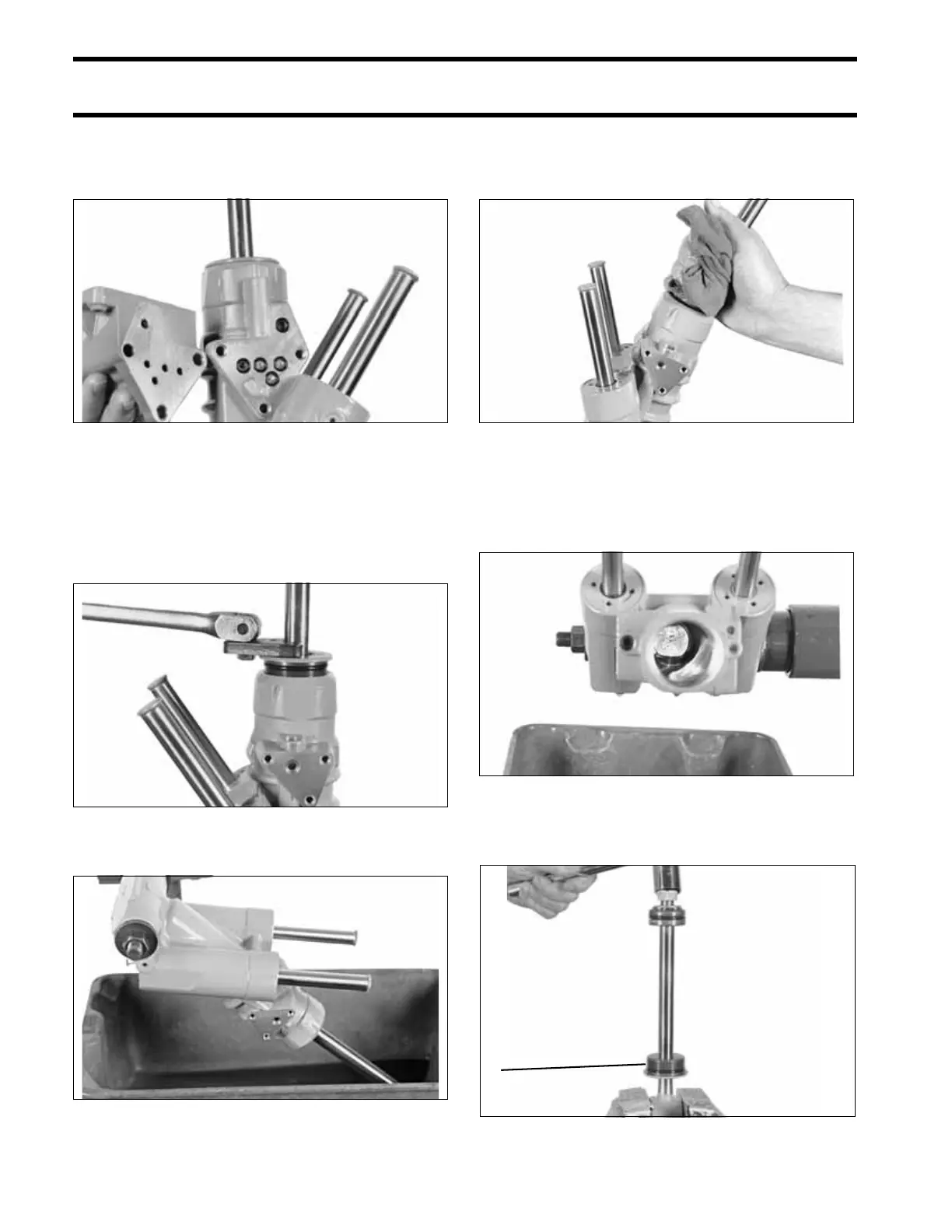

Remove the manifold. Remove five O-rings from
cylinder body. Check machined surfaces for nicks
and scratches.
Tilt Piston Removal
Use Tilt Cylinder End Cap Remover/Installer,
P/N 326485, or Universal Spanner Wrench,
P/N 912084, and a breaker bar, to unscrew the tilt
rod end cap.
Drain the fluid from above the piston.
Slowly pull the piston out with a rag wrapped
around the rod and the top of the cylinder. Drain
the remaining fluid from the cylinder.
Inspect the bore of the tilt cylinder for excessive
scoring. If the bore of the tilt cylinder is scored or
damaged, the hydraulic assembly must be
replaced.
Clamp the rod eye tightly in a soft jaw vise.
Remove the nut from the piston end of the rod.
41799
41788
41789
41765
41767
1. End cap 41781
1
