232
POWERHEAD
POWERHEAD DISASSEMBLY

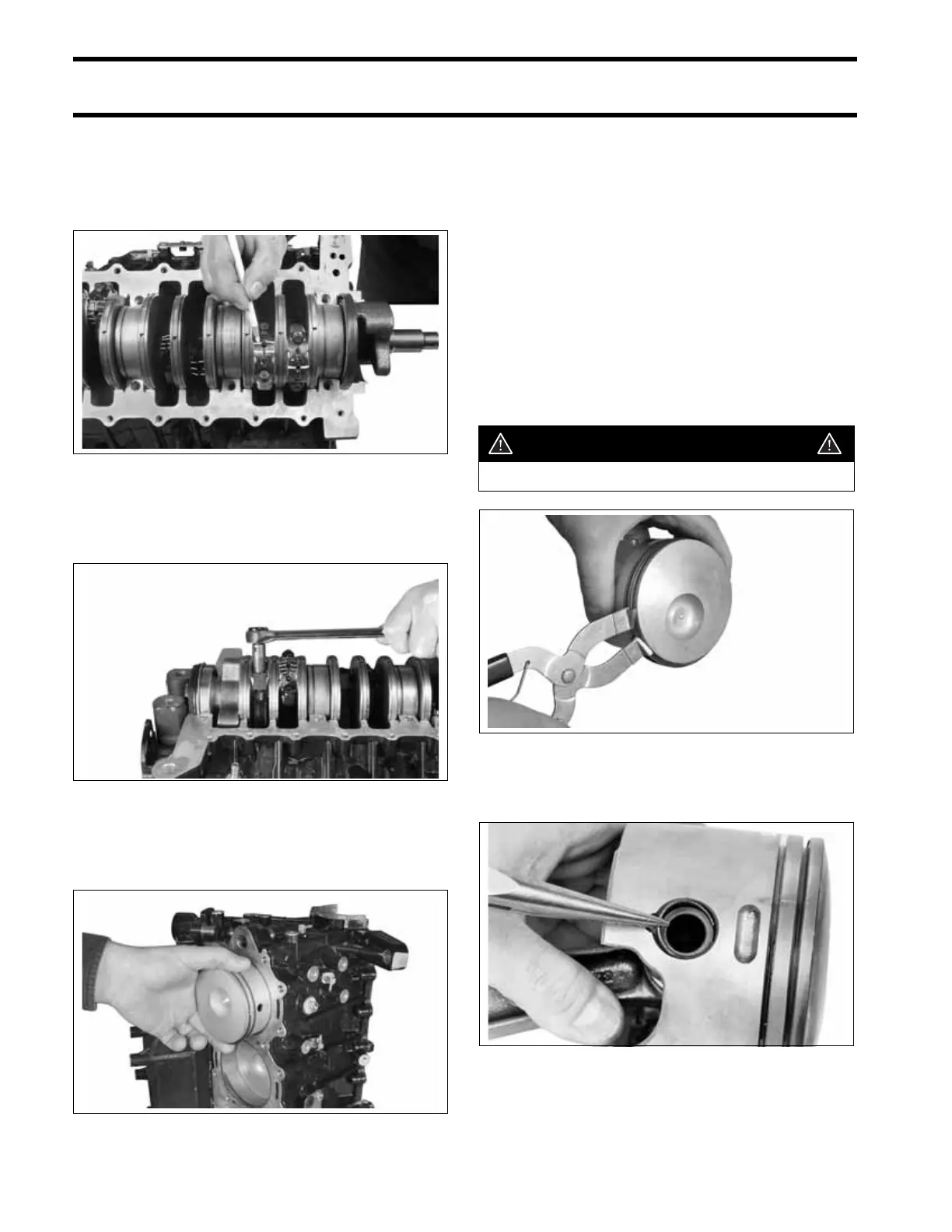

Connecting Rods and Pistons
Use a permanent marker to identify each connect-
ing rod cap, connecting rod, and piston by cylinder
number. Number 1 is closest to the flywheel.
Use Torquing Socket, P/N 331638, to loosen in
stages the rod cap retaining screws. DO NOT
remove the screws.
Use one hand to support the piston, and remove
the rod cap screws with your other hand. Remove
each piston and rod assembly.
IMPORTANT: Reattach each rod cap to its rod
as soon as the piston is removed. Each cap is
unique and can only be installed on its mated rod.
Do not allow rod to contact inside surface of cylin-
der or crankshaft.
IMPORTANT: Identify all internal components
so that if reused, they can be reinstalled in their
original positions.
Repeat steps for each remaining piston and con-
necting rod.
Use an appropriate ring expander to remove all
piston rings from pistons. Discard the rings.
Remove wrist pin retaining rings. Discard retaining
rings.
005292
005303
005301
WARNING
Wear safety glasses to avoid injury.
002054
46524
