156
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING

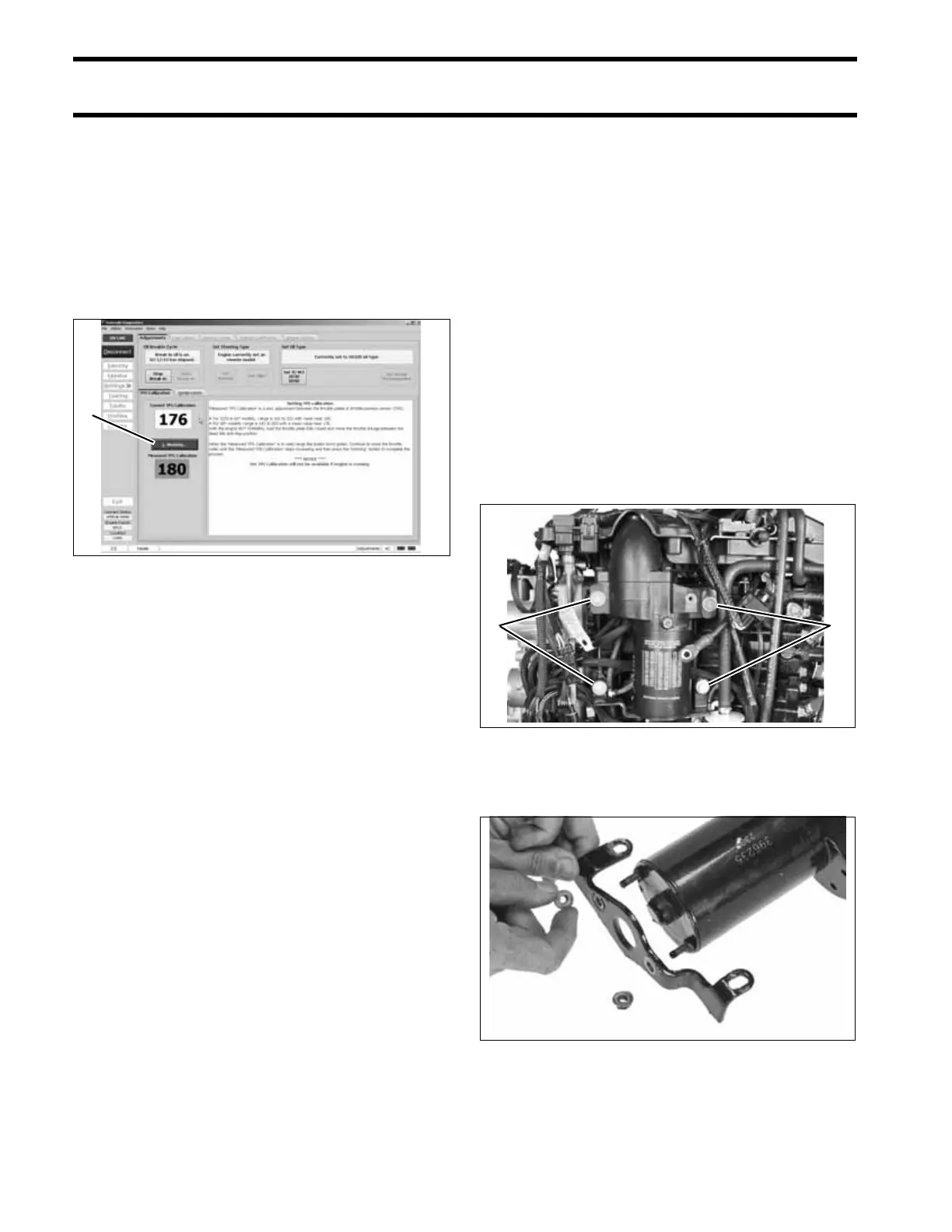

TPS CALIBRATION
Use Evinrude Diagnostics software to tell the
EMM what throttle position sensor voltage is when
the throttle plates begin to open.
Remove the air silencer.
On the Settings screen of the diagnostic software,
click the “Set TPS Calibration” button.
While holding the throttle plates closed, advance
the throttle linkage until it stops. The “Measured
TPS Calibration” field on the screen will increase.
Click the “Working” button in the software to cali-
brate the TPS.
Install the air silencer.
Set TPS Calibration after replacing or adjusting
any throttle body or throttle linkage parts.
ELECTRIC STARTER
SERVICING
Starter Removal
IMPORTANT: Do not clean the starter drive
while the starter motor and drive are installed on
the powerhead. The cleaning agent could drain
into the starter motor, washing dirt from the drive
into the starter bearings and commutator.
Disconnect the battery cables at the battery.
Remove the starter positive (+) cable from post on
starter.
Remove the four frame and bracket mounting
screws. Remove the starter.
Loosen the two nuts used to fasten the starter
bracket. Remove the nuts and bracket.
1. TPS Calibration button 006810
1
005373
30374
21
