387
TRIM AND TILT
SERVICING – THREE PISTON SYSTEM
14
Spanner Wrench, P/N 912084. Torque caps to 60
to 70 ft. lbs. (81 to 95 N·m).

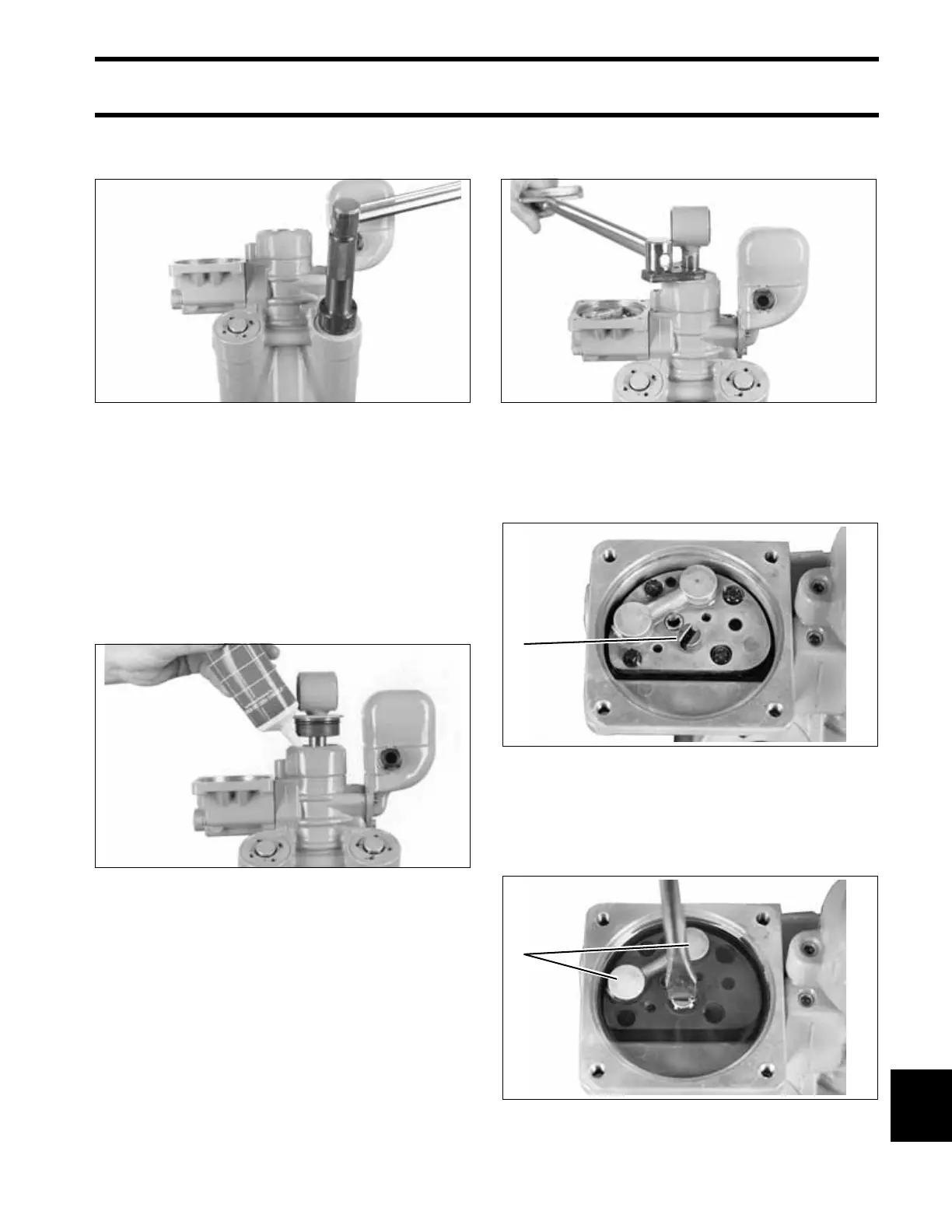

Tilt Rod Installation
Lubricate the tilt rod piston. Slide the end cap all
the way up on the rod assembly. Place the piston
end of the rod assembly into the cylinder body.
Push it in until the end cap just clears the cylinder
top. Leave enough room to pour fluid into the cyl-
inder. Fill the cylinder with Power Trim/Tilt &
Steering Fluid. Failure to fill the cylinder could
cause difficulty purging air from the unit.
Screw tilt cylinder end cap into cylinder body. Use
Tilt Cylinder End Cap Remover/Installer,
P/N 326485, or Universal Spanner Wrench,
P/N 912084. Torque cap to 58 to 87 ft. lbs. (79 to
118 N·m).
Motor Installation
Position the pump manifold so the pump mounting
surface is level. Install the coupler into the pump.
Fill the pump cavity with Power Trim/Tilt & Steer-
ing Fluid up to the top of the two bosses. Rotate
the coupler clockwise and then counterclockwise
until no more air bubbles come out of the pump.
41868
41869
41870
1. Coupler 41852
1. Bosses 41854
1
1
