273
MIDSECTION
TILT TUBE
12
TILT TUBE

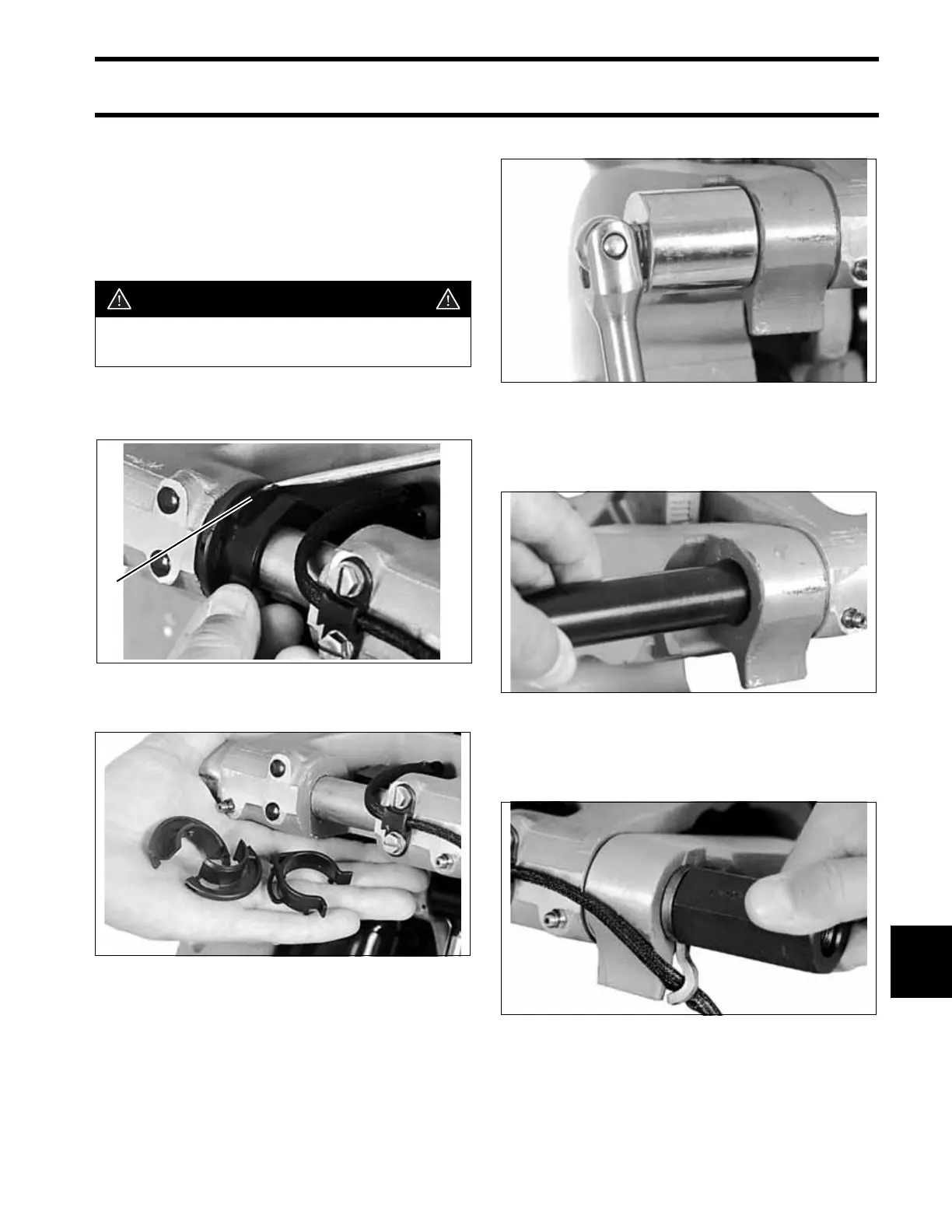

The tilt tube may be serviced without major disas-
sembly of the outboard using Tilt Tube Service
Kit, P/N 434523.
Removal
Pull the locking tabs on the tilt limit cam loose
from the collar.
Remove the cam and collar from the tilt tube.
Remove the nut from the starboard side.
Thread the spacer from Tilt Tube Service Kit,
P/N 434523, onto the starboard end of the tilt
tube.
Remove steering cable wiper nut from tilt tube.
Thread the adapter from Tilt Tube Service Kit,
P/N 434523, onto the port end of the tilt tube.
WARNING
Support the outboard with a suitable
hoist.
1. Locking tabs 30749
30748
1
30747
30746
30745
To Next Page
