319
GEARCASE – STANDARD ROTATION
SHIFTER, BEARING AND SEAL SERVICE
13

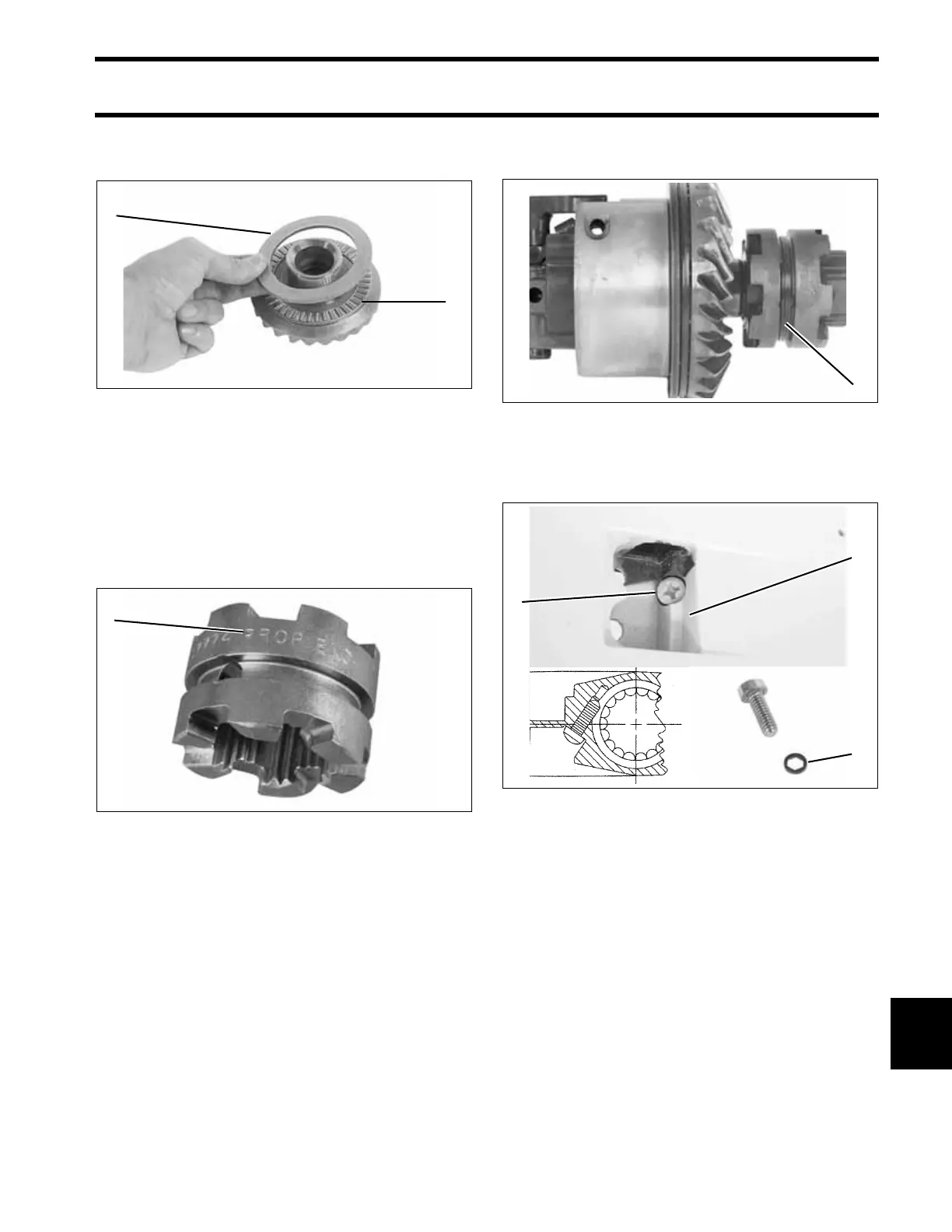

IMPORTANT: Bearing and washer must be
installed in the correct order.
Align holes in the clutch dog with slot in the pro-
peller shaft. Install the clutch dog on the shaft with
“PROP END” facing rear of the shaft.
IMPORTANT: The clutch dog is not symmetri-
cal. If installed backward, it will not fully engage
and will immediately damage itself and the gears.
Slide the propeller shaft onto the shift shaft, align
the hole in the shaft with the hole in the clutch
dog, install the pin and then, a new clutch dog
retaining spring. Place three coils over each end
of the pin, MAKING SURE NONE OF THE COILS
OVERLAP OR ARE LOOSE.
Pinion Bearing Removal
Remove pinion bearing retaining screw.
Assemble Pinion Bearing Remover and Installer,
P/N 391257, in the gearcase as follows:
1. Thrust bearing
2. Thrust washer
DSC02297
1. “PROP END” 006840
1
2
1
1. Retaining spring COB3101
1. Pinion bearing retaining screw
2. Water screen pocket
3. Seal
DSC02370
DRC7416
DSC02313
1
2
3
1
