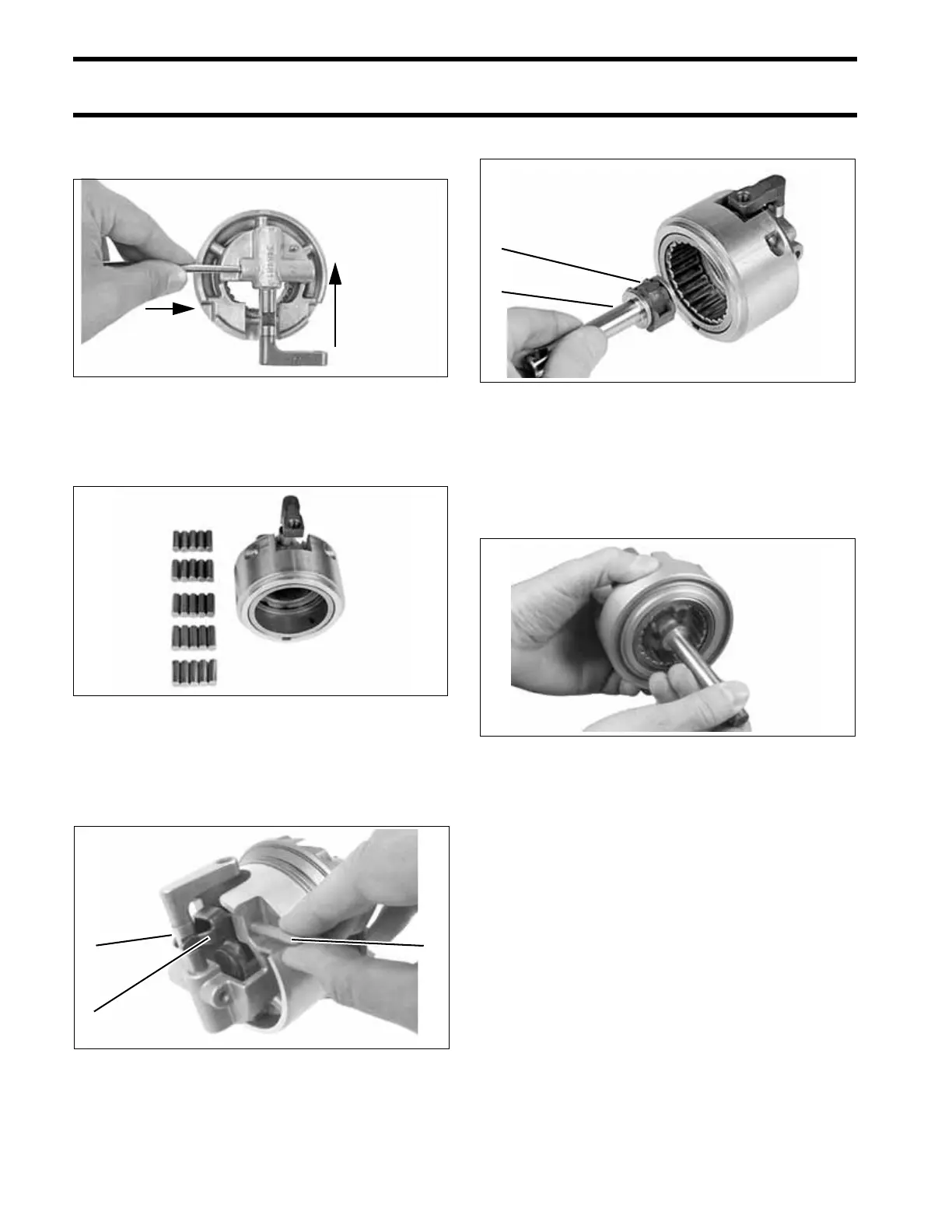

GEARCASE – STANDARD ROTATION
SHIFTER, BEARING AND SEAL SERVICE
the ball, remove the tool and position detent to
engage NEUTRAL position.
Thoroughly grease 25 needle bearings with Nee-
dle Bearing grease and place in the bearing case.
(Note: “S2” Type has caged roller bearing.)
With shifter detent in NEUTRAL, install arms of
shift lever into detent slots. Align the pivot holes
and insert the retaining pin. Push shifter detent
down.
Rest the cradle on the shift shaft.
Place the shift lever arms into the recesses of the
shift cradle. Pull shifter detent back up to NEU-
TRAL position to hold the cradle and shaft in
place.
Coat thrust bearing and thrust washer with Needle
Bearing grease. Place the bearing on the back of
the gear. Set the washer on top of the thrust bear-
ing. Insert the gear, bearing, and washer into the
bearing housing.
DSC02506
4520
1. Shifter detent
2. Shift lever
3. Pin, shift lever
DSC02449
31
2
TYPICAL
1. Cradle
2. Shift shaft
4512
001219
1
2
