276
MIDSECTION
EXHAUST HOUSING

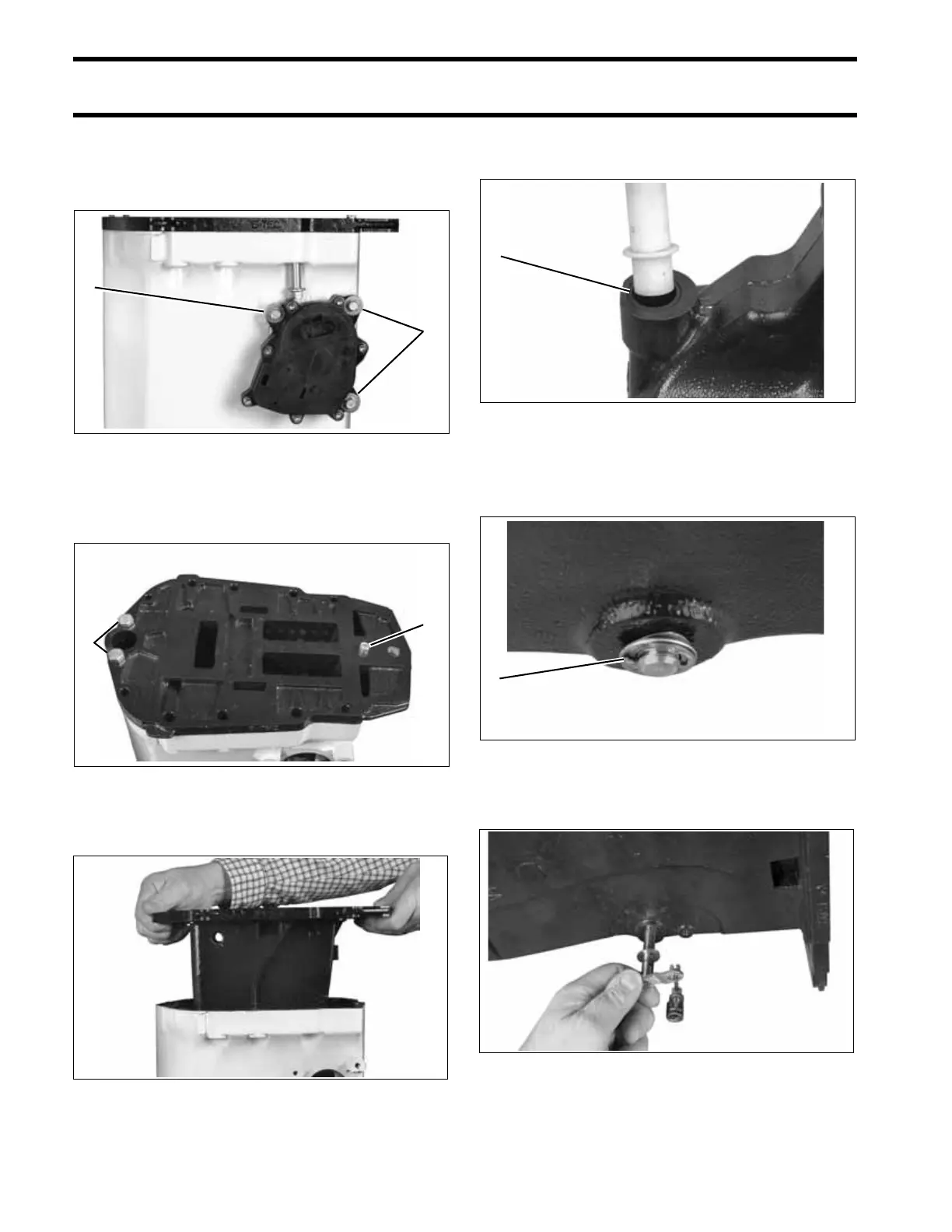

Exhaust Housing Disassembly
Remove three screws and exhaust valve actuator
(V4 models).
Remove the front and rear screws retaining the
adapter/inner exhaust housing to the exhaust
housing.
Lift the adapter/inner exhaust housing out of the
exhaust housing.
Remove the water tube. Inspect water tube grom-
met and replace if necessary.
V4 MODELS
Remove circlip and washers from exhaust valve
shaft on starboard side of inner exhaust housing.
Remove exhaust valve shaft and washer from port
side of inner exhaust housing.
Remove exhaust valves from inside the inner
exhaust housing.
1. Actuator screws 005206
1. Adapter retaining screws 005205
005207
1
1
1
1
1. Water tube grommet 005210
1. Circlip 005211
005212
1
1
