382
TRIM AND TILT
SERVICING – THREE PISTON SYSTEM

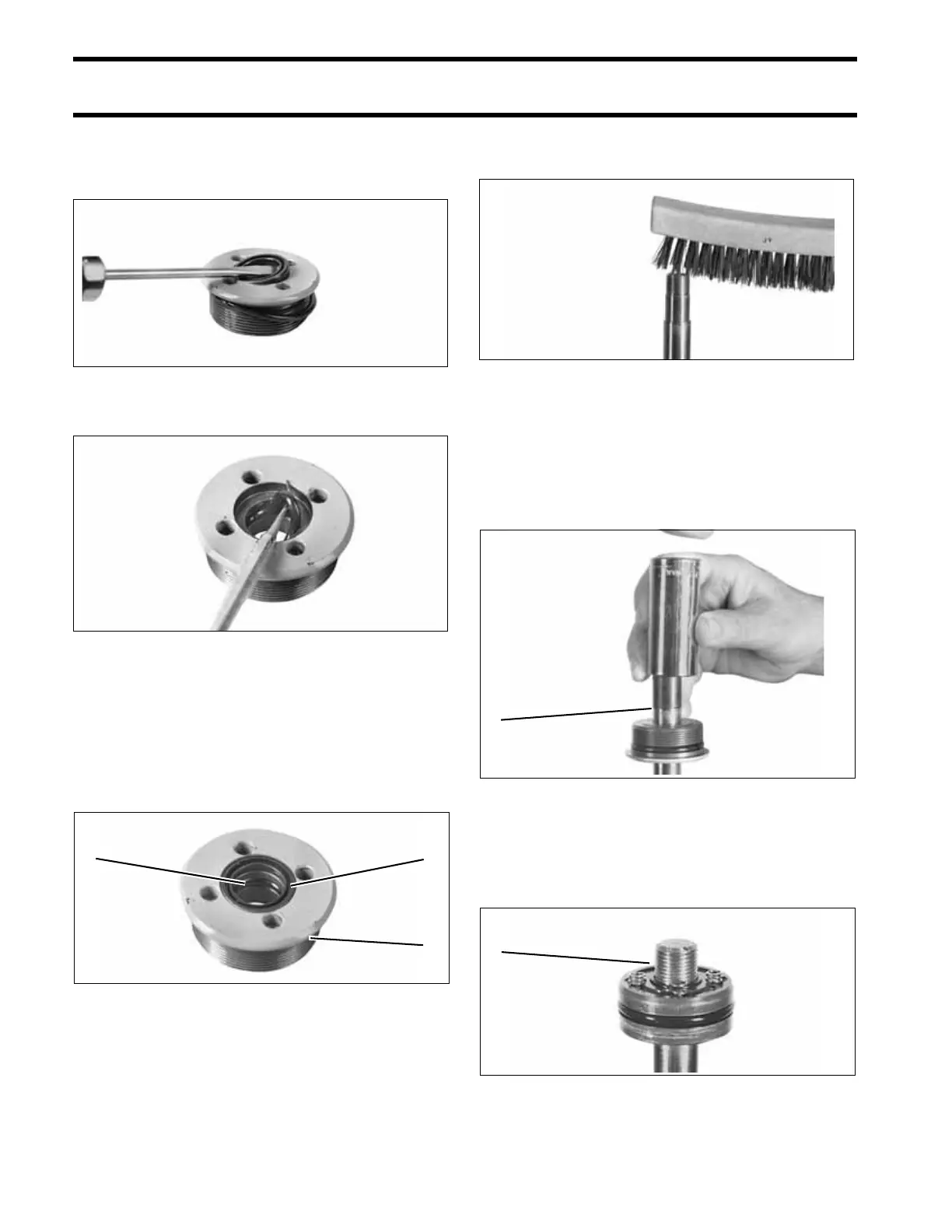

Use a screwdriver to carefully pry the scraper out
of the end cap. Discard the scraper. Remove and
discard the large outer O-ring.
Remove and discard inner O-ring of the end cap.
Tilt Rod Assembly
Clean the end cap thoroughly, then lubricate and
install a new O-ring in the end cap. Lubricate and
install a new scraper. The scraper is installed with
the lip facing out. Lubricate and install a new
O-ring on the outside of the end cap.
Use a wire brush to clean all thread-locking mate-
rial from the threads on the tilt rod.
Lubricate the inside surface of the end cap. Lubri-
cate and install Tilt Cylinder Seal Protector,
P/N 326005. Use a deep-well socket and a plastic
mallet to drive the end cap onto the rod, then
remove the seal protector. Slide the end cap down
the tilt rod.
Remove any lubricant from the threads on the tilt
rod, prime with Locquic Primer, and let dry. Slide
the piston assembly onto the tilt rod. Place a new
rod O-ring over the threads.
41791
41792
1. Inner O-ring
2. Lip
3. Outer O-ring
41795
2
3
1
41821
1. Tilt Cylinder Seal Protector 41824
1. O-ring 41816
1
1
