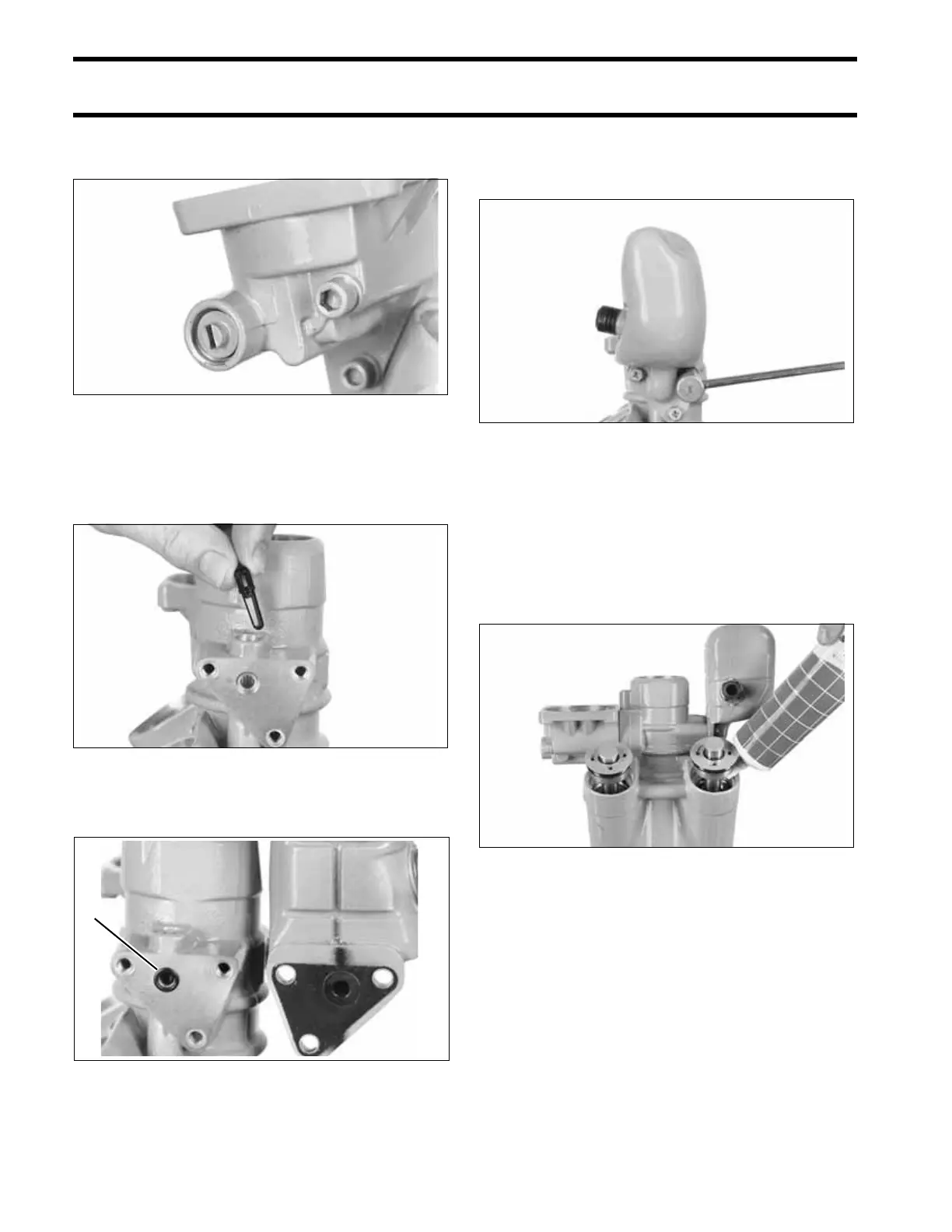

386
TRIM AND TILT
SERVICING – THREE PISTON SYSTEM
removed later for the Pressure Leakdown Test
on p. 368.
Install the reservoir filter screen in the cylinder
body. Make sure that the screen is seated. Use a
6 mm Allen wrench to install the plug. Tighten the
plug securely.
Lubricate and place a new reservoir O-ring in the
cylinder body.
Attach the reservoir to the cylinder body with three
Pozidriv screws. Torque the screws to 35 to 52 in.
lbs. (4.0 to 5.9 N·m).
Trim Rod Installation
Lubricate the trim rod pistons. Place the rod
assemblies into the body. Push them in until the
end caps just clear the tops of the cylinders. Fill
the cylinders with Power Trim/Tilt & Steering
Fluid. Failure to fill the cylinders could cause diffi-
culty in purging air from the unit.
Screw the trim rod end caps into the cylinder
body. Use Trim Cylinder End Cap
Remover/Installer, P/N 436710, or Universal
41851
41863
1. O-ring 41865
1
41866
41867
