384
TRIM AND TILT
SERVICING – THREE PISTON SYSTEM

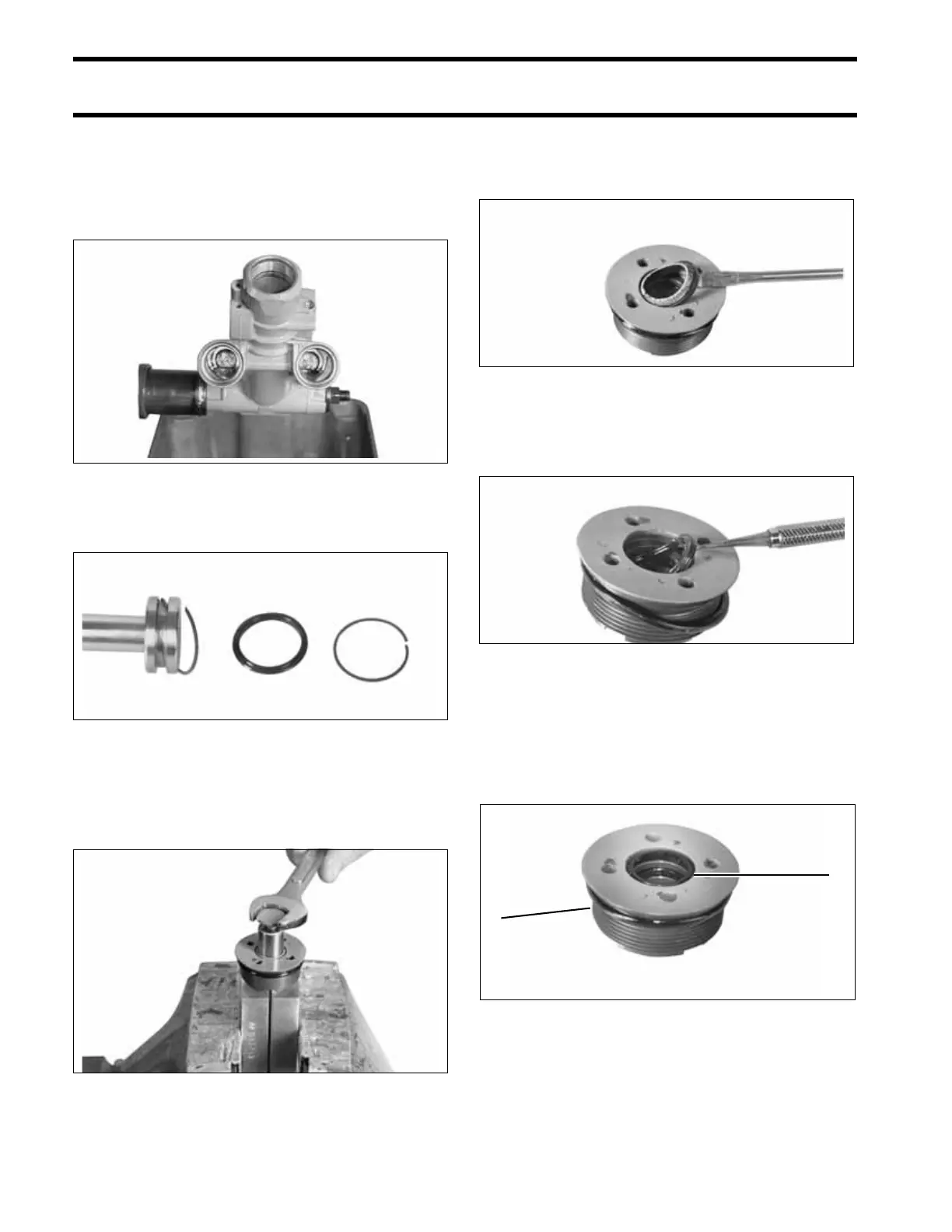

Drain the remaining fluid from the cylinders.
Inspect both bores of the trim cylinders for exces-
sive scoring. If one or both trim bores are scored
or damaged, the hydraulic assembly must be
replaced.
Remove and discard both back-up rings and the
O-ring from each trim rod piston.
Using Hydraulic Cylinder Rod Holder,
P/N 983213, clamp the rod tightly in a vise.
Remove the thrust pad from the trim rod, then
remove the end cap.
Remove the rod from the vise. Use a small screw-
driver to carefully pry the scraper out of the end
cap. Discard the scraper.
Use a suitable tool to remove the inner quad-ring
and the outer O-ring. Discard the quad-ring and
O-ring.
Trim Rod Assembly
Lubricate and install a new quad-ring and scraper
in the end cap. Install the scraper with the bevel
facing out. Lubricate and install a new O-ring on
the outside of the end cap.
41840
41841
41842
41843
41844
1. Bevel
2. O-ring
41845
1
2
