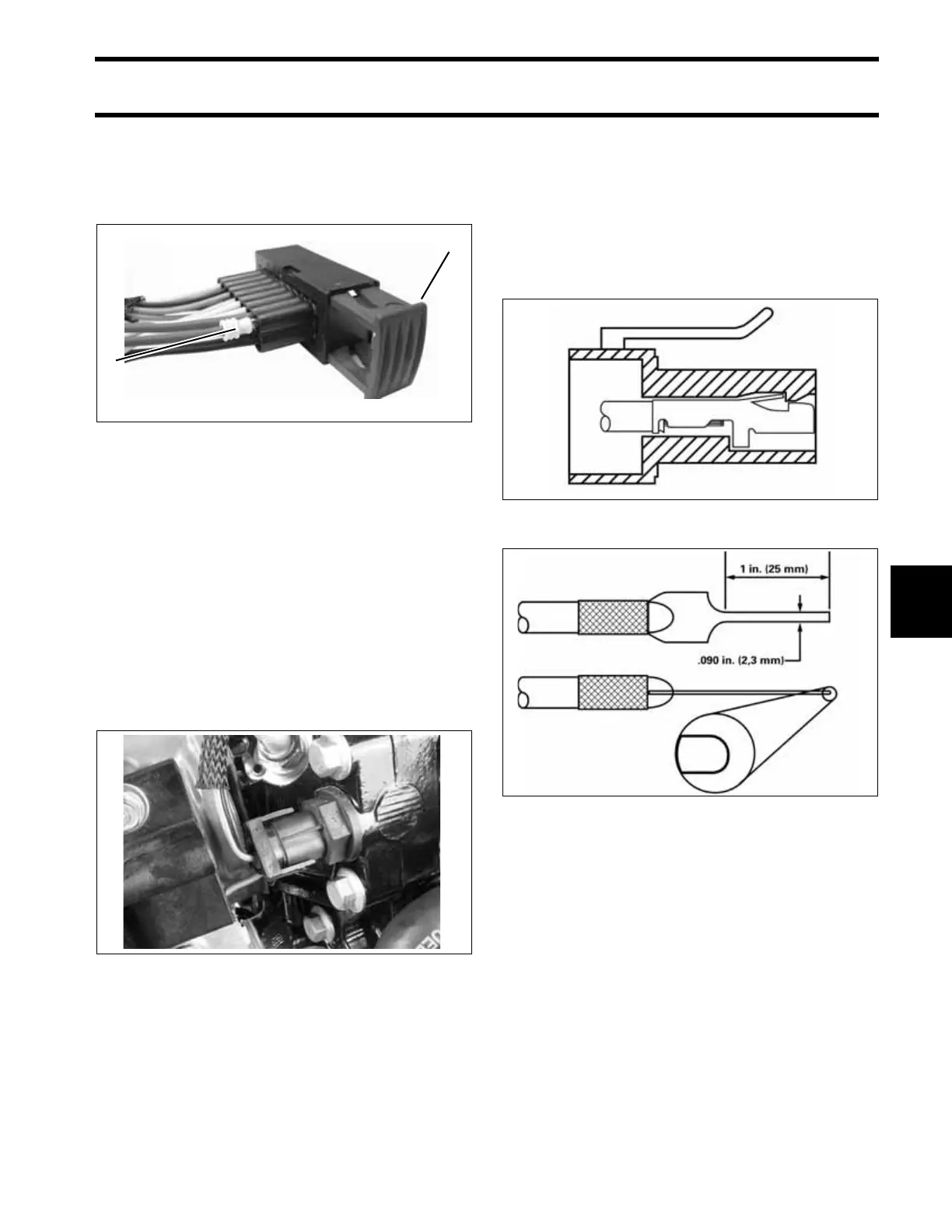

ELECTRICAL AND IGNITION
CONNECTOR SERVICING
7
Terminal Installation
Align terminal with connector housing and push
terminal with seal into connector housing until
seated.
Packard
â€
Connectors
IMPORTANT: Always use the appropriate
meter test probes and adapters when testing com-
ponents fitted with these terminals.
Disconnect
Lift latch(s). Remove connector.
Connect
Confirm the seal is in place. Push connector onto
housing until latched.
Terminal Removal
A tab on the back side of the terminal engages a
shoulder in the connector housing to hold the ter-
minal in place. The terminal is removed by push-
ing wire and terminal through connector housing.
Insert a thin wire, such as a paper clip, into the
connector above the terminal to release tab.
1. Latch
2. Terminal with seal
002456
DSC02124
1
2
TYPICAL DRC5940
Terminal Tool DRC5941
