229
POWERHEAD

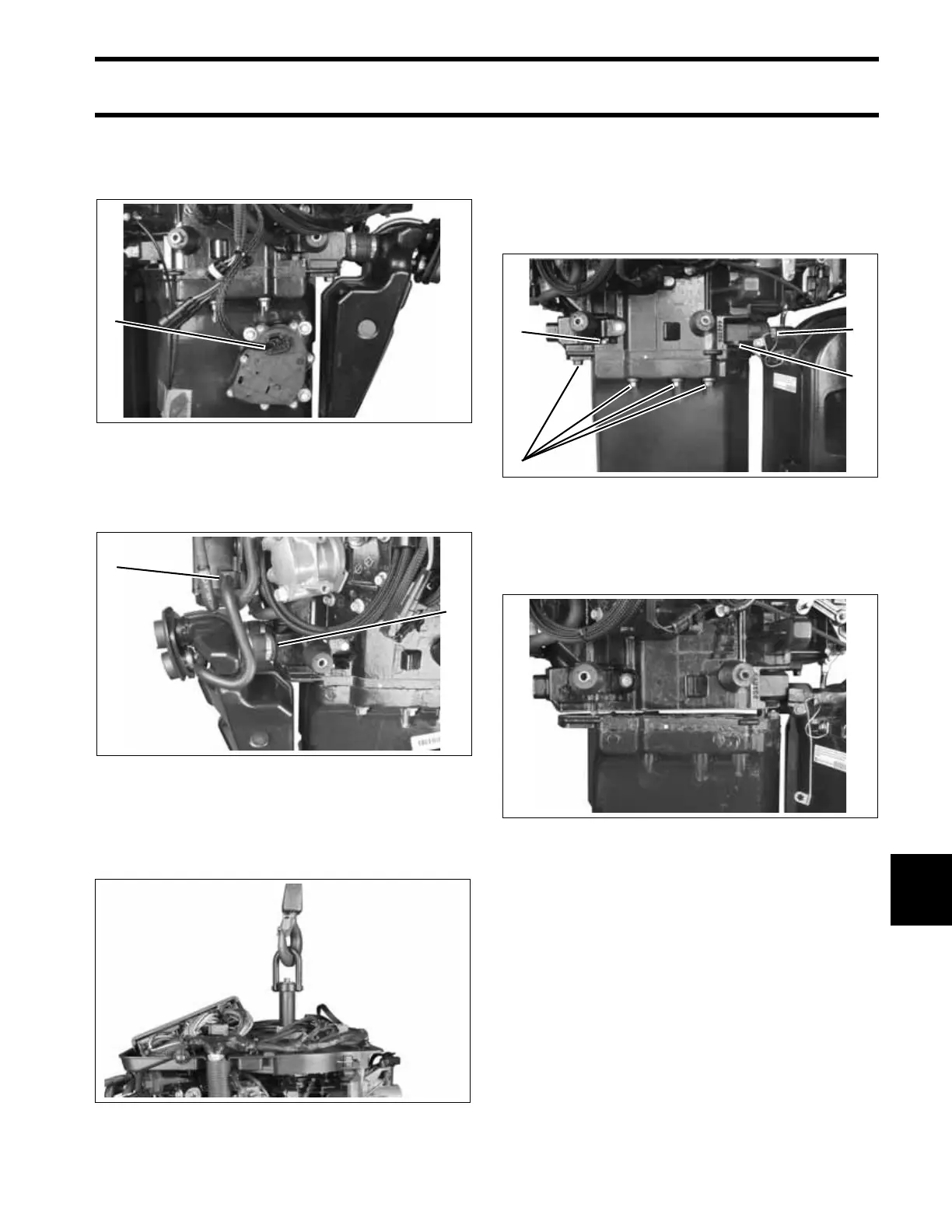

POWERHEAD REMOVAL
11
Disconnect electrical harness from exhaust valve
actuator (V4 models). It is not necessary to
remove actuator from exhaust housing.
Disconnect water overflow hose from vapor sepa-
rator. Remove clamps and muffler assembly from
rear of powerhead.
Install Lifting Tool, P/N 342672, on crankshaft.
Tighten mounting screw securely using an Allen
1/4 in. hexagonal wrench.
Fasten appropriate chain hook to eye of tool and
support weight of powerhead with hoist.
Remove the four small powerhead screws, seven
large powerhead screws, and the upper mount
screws.
Use a suitable tool to carefully separate the pow-
erhead from exhaust housing.
IMPORTANT: Do not damage the powerhead
adapter mating surfaces when separating.
1. Actuator connector 005247
1. Overflow indicator hose
2. Muffler clamps
005243
005260
1
2
1
1. Large powerhead screws
2. Small powerhead screws
3. Upper mount screws
005273
005259
3
2
2
1
