GEARCASE
SERVICE CHARTS
295
13

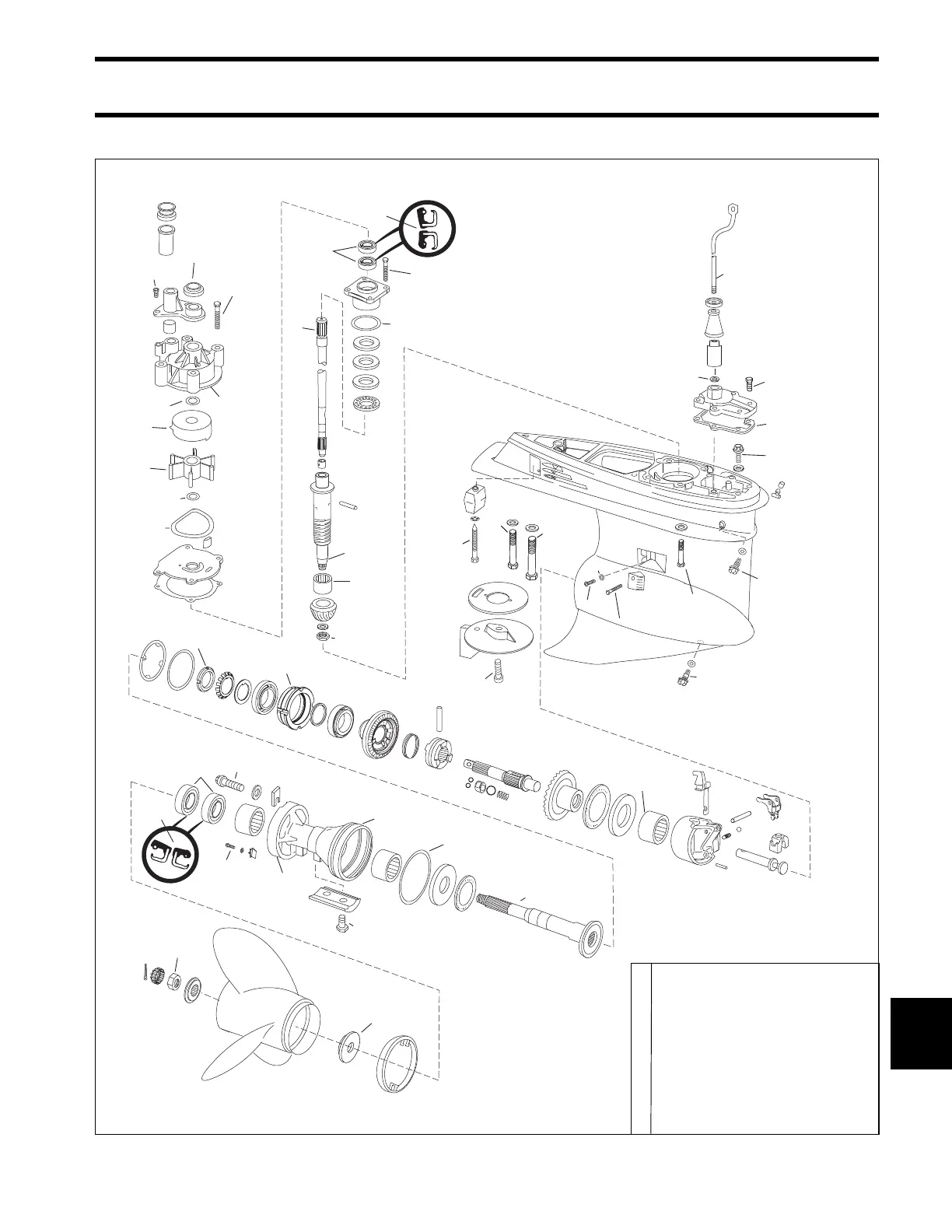

V6 COUNTER ROTATION “M”-TYPE GEARCASE
70-80 Ft. lbs.
(95-109 N·m)
A
A
100-110 Ft. lbs.
(136-149 N·m)
B
B
E
E
B
A
B
C
A
A
B
C
B
D
B
B
A
B
B
A
B
B
B
108-132 In. lbs.
(12-15 N·m)
15-20 In. lbs.
(1.7-2.3 N·m)
18-20 Ft. lbs.
(24-27 N·m)
100 Ft. lbs.
(136 N·m)
35-40 Ft. lbs.
(47-54 N·m)
24-36 In. lbs.
(3-4 N·m)
60-84 In. lbs.
(7-9.5 N·m)
120-144 In. lbs.
(13.5-16.5 N·m)
G
60-84 In. lbs.
(7-9.5 N·m)
26-28 Ft. lbs.
(35-38 N·m)
60-84 In. lbs.
(7-9.5 N·m)
60-84 In. lbs.
(7-9.5 N·m)
60-84 In. lbs.
(7-9.5 N·m)
18-20 Ft. Lbs.
(24-27 N·m)
F
18-20 Ft. lbs.
(24-27 N·m)
26-28 Ft. lbs.
(35-38 N·m)
40-50 Ft. lbs.
(54-68 N·m)
B
B
C
A
A
A
J
14-18 In. lbs.
(1.5-2 N·m)
J
G
X
200 Ft. lbs.
(271 N·m)
B
X
006590
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
J Gearcase Lubricant
X See Service Manual Text
