312
GEARCASE – STANDARD ROTATION
GEARCASE DISASSEMBLY

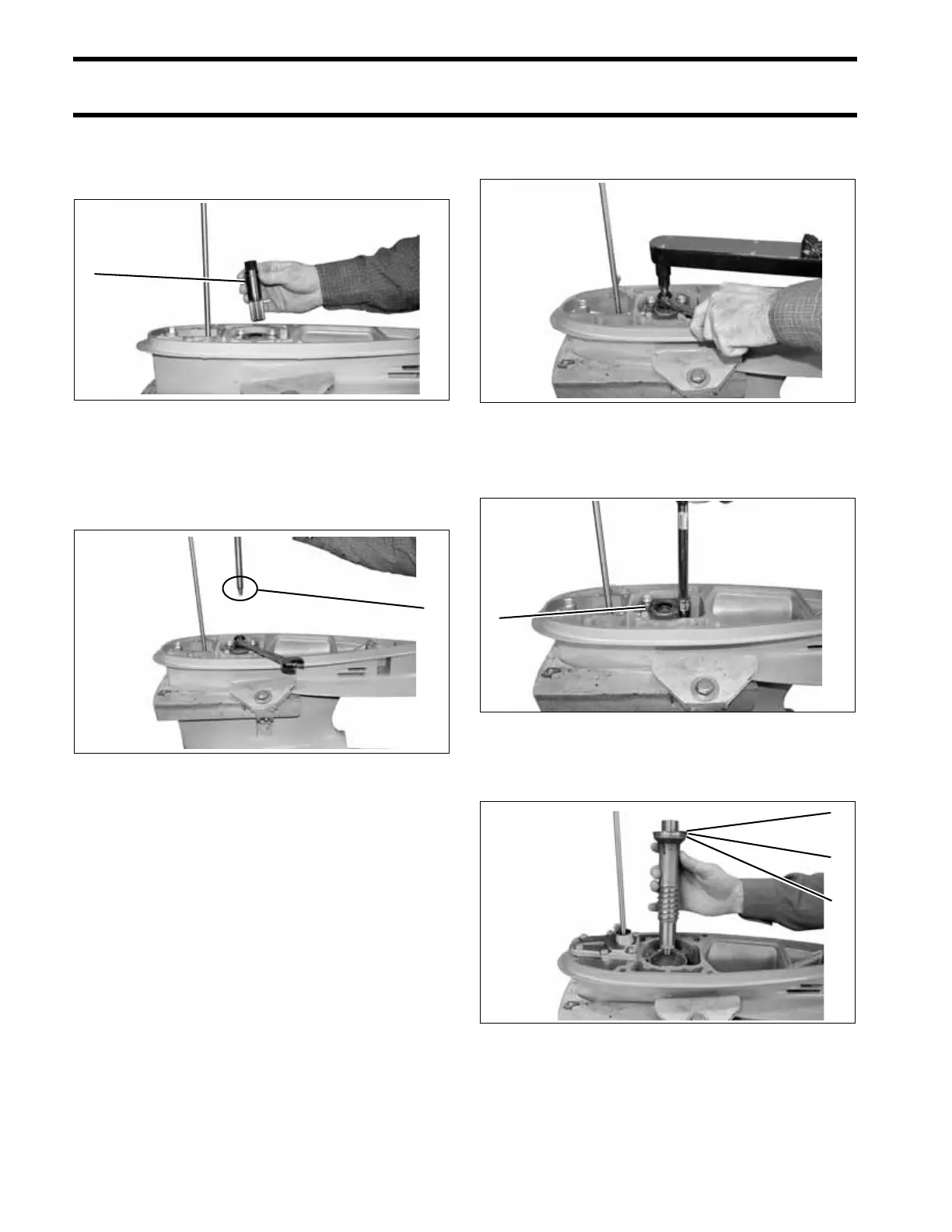

With driveshaft bearing housing and screws in
place, insert Lower Driveshaft Spline Tool,
P/N 5007052, into lower driveshaft.
Insert Lower Driveshaft Wrench, P/N 352877,
through Lower Driveshaft Spline Tool and lower
driveshaft. Seat hex tip of wrench in head of pin-
ion screw.
IMPORTANT: Make sure Lower Driveshaft
Wrench is fully seated in head of pinion screw.
Use a long 3/4 in. combination wrench to hold
lower Driveshaft Spline Tool and a 1/2” drive
wrench to turn the Lower Driveshaft Wrench in a
counterclockwise direction. Loosen screw com-
pletely
Remove the four driveshaft bearing housing
screws and then the bearing housing.
Remove shims, thrust washer, and thrust bearing
with the lower driveshaft.
1. Lower Driveshaft Spline Tool 005407
1. Wrench, hex tip
1
1
005409
1. Driveshaft bearing housing 005426
1. Shims
2. Thrust bearing
3. Thrust washer
005410
1
1
2
3
