323
GEARCASE – STANDARD ROTATION
SHIFTER, BEARING AND SEAL SERVICE
13

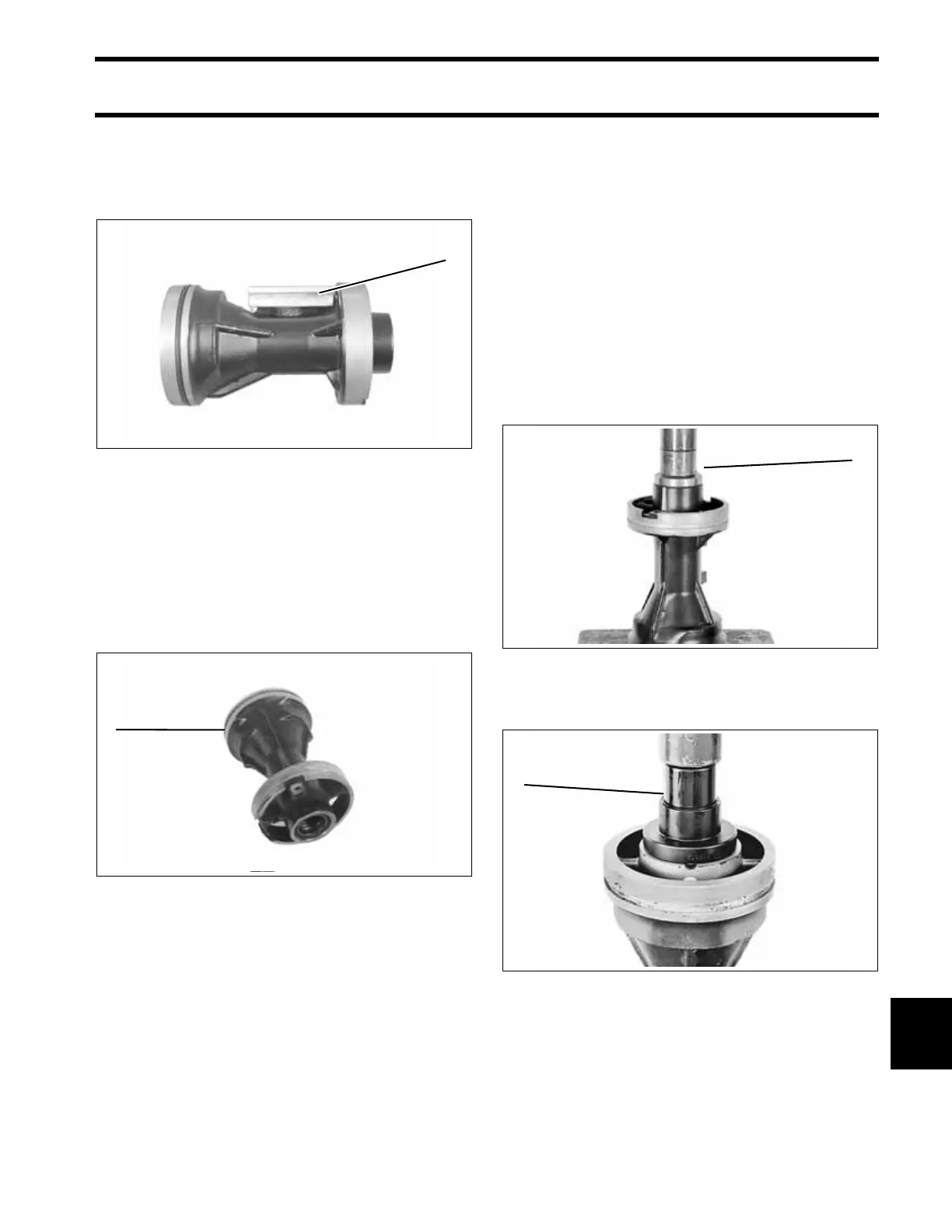

Inspect the bearing housing anode. Replace
anode if it is reduced to two-thirds of original size.
Tighten screws to a torque of 108 to 132 in. lbs.
(12 to 15 N·m).
Discard the bearing housing O-ring. Clean the
housing and bearings in solvent and dry thor-
oughly. If bearings were not replaced, rotate the
needles to check for freedom of movement.
Inspect O-ring groove(s). Sand off any sharp
edges that might cut O-ring. Remove any nicks or
burrs on front of bearing housing.
Bearing Installation
Oil, then install new bearings in bearing housing.
Place the lettered end of the bearing case on the
bearing installer, then press the bearing into the
housing until the tool seats. When installed, the
lettered end of the bearing should be visible.
STANDARD ROTATION HOUSING
Bearing Installation Tool:
• P/N 326562 – “S2” type
• P/N 339750 – “O”, “L” and “M” type
• P/N 354139 – “M2”, “O,” “L,”, “L2”, and “M” type
with longer housing.
STANDARD ROTATION HOUSING
1. Anode 001220
1. O-ring groove DSC02291
1
1
Rear Bearing
1. Bearing installation tool
44237
Forward Bearing
1. Bearing installation tool
29967
1
1
