TRIM AND TILT
SERVICING – THREE PISTON SYSTEM

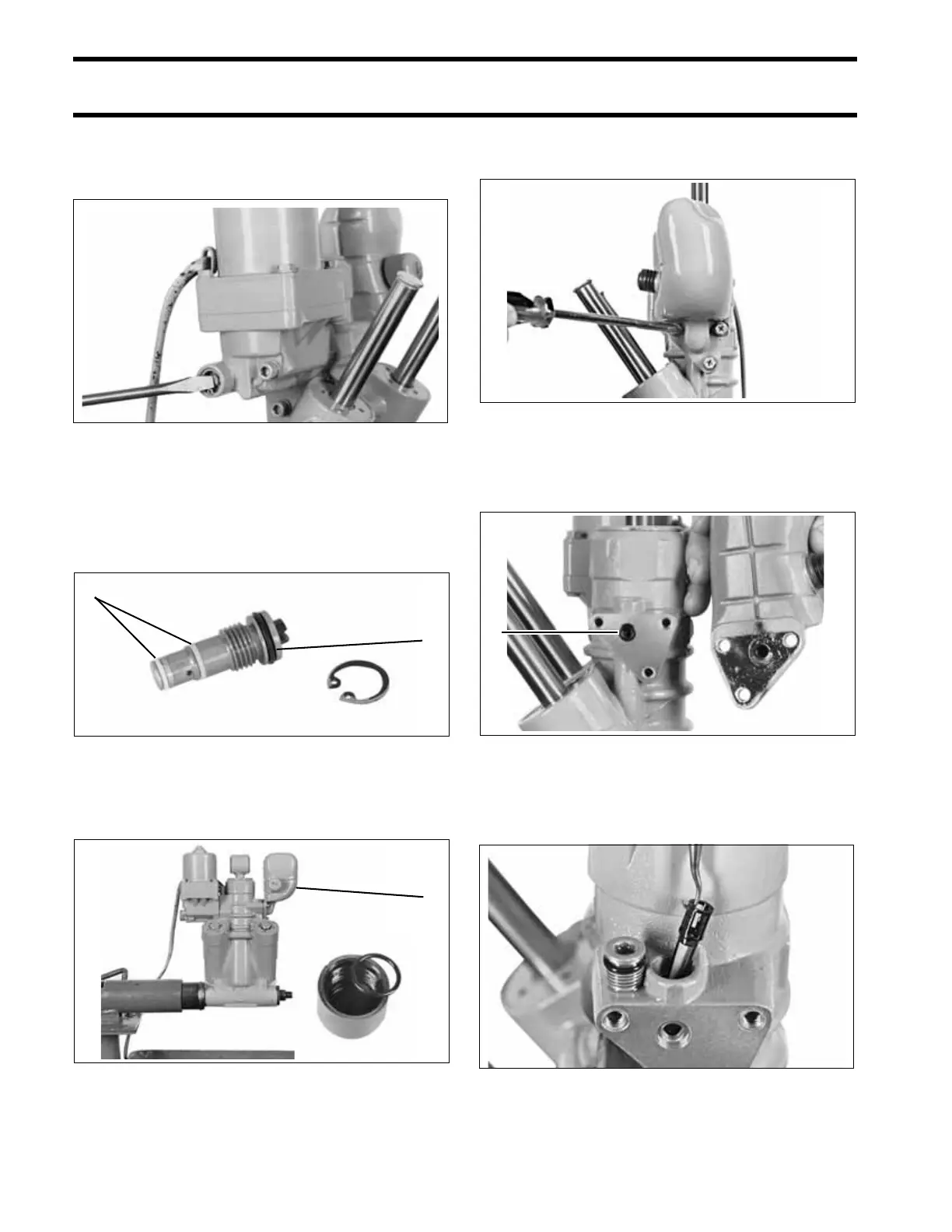

Screw the manual release valve in. Remove the
retaining ring using retaining ring pliers. Remove
the manual release valve.
Inspect O-ring and two plastic split rings on the
manual release valve for nicks and cuts. Inspect
tip of valve for damage. The two plastic split rings
are not available separately. If rings are damaged,
replace the manual release valve.
Remove reservoir cap and drain the fluid into a
container. Inspect the O-ring in the cap.
Remove the three Pozidriv screws securing the
reservoir to cylinder body. Remove reservoir.
Remove the reservoir O-ring from the cylinder
body. Check machined surfaces for nicks and
scratches.
Use a 6 mm hex wrench to remove the plug from
the cylinder body. Inspect the O-ring and the filter.
Replace, if necessary.
41739
1. O-ring
2. Plastic split rings
22863
1. Reservoir cap 41736
41751
1
2
1
41753
1. O-ring 41759
41787
1
