391
TRIM AND TILT
SERVICING–SINGLE PISTON SYSTEM
14

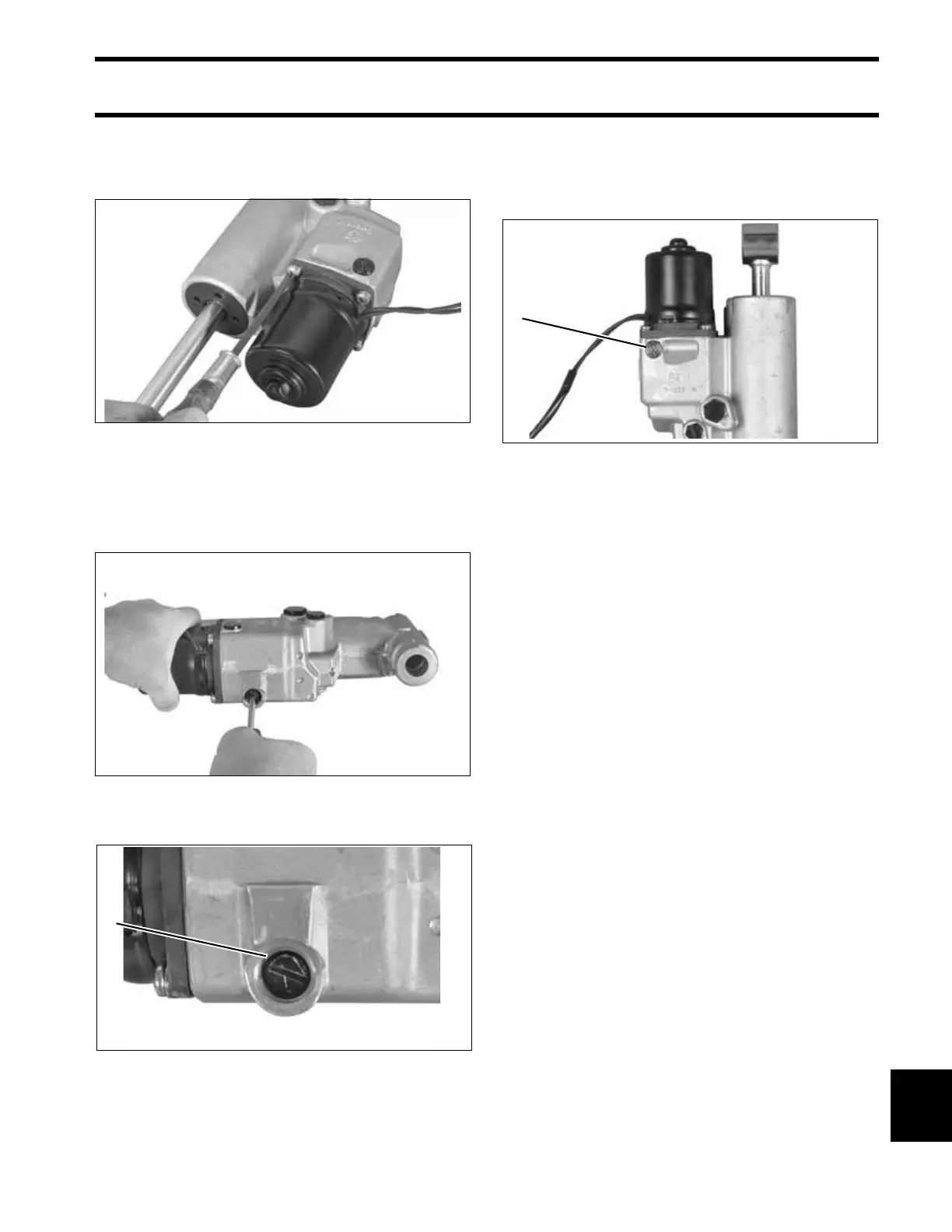

Position the motor on the manifold and install four
new screws and lock washers. Tighten the screws
35 to 50 in. lbs. (4 to 5.6 N·m).
Oil O-rings and install them on the manual release
valve. Oil and install the manual release valve.
Tighten the valve to a torque of 45 to 55 in. lbs.
(5.1 to 6.2 N·m).
Install new retaining ring in groove.
Fill the oil reservoir up to the fill plug with
Evinrude/Johnson Biodegradable TNT Fluid.
Install and tighten the fill plug. Do not torque the
plug at this time.
Run the motor, then recheck oil level. Cycle the
unit several times and check the oil level when the
cylinder is fully extended. Oil should be level with
bottom of fill port. Install and tighten the fill plug to
a torque of 45 to 55 in. lbs. (5.1 to 6.2 N·m).
004282
004285
1. Retaining ring 004283
1
1. Reservoir cap 004278
1
