Evinrude E-TEC E115DSLSCR User Manual

1
2
3
4
Evinrude E-TEC

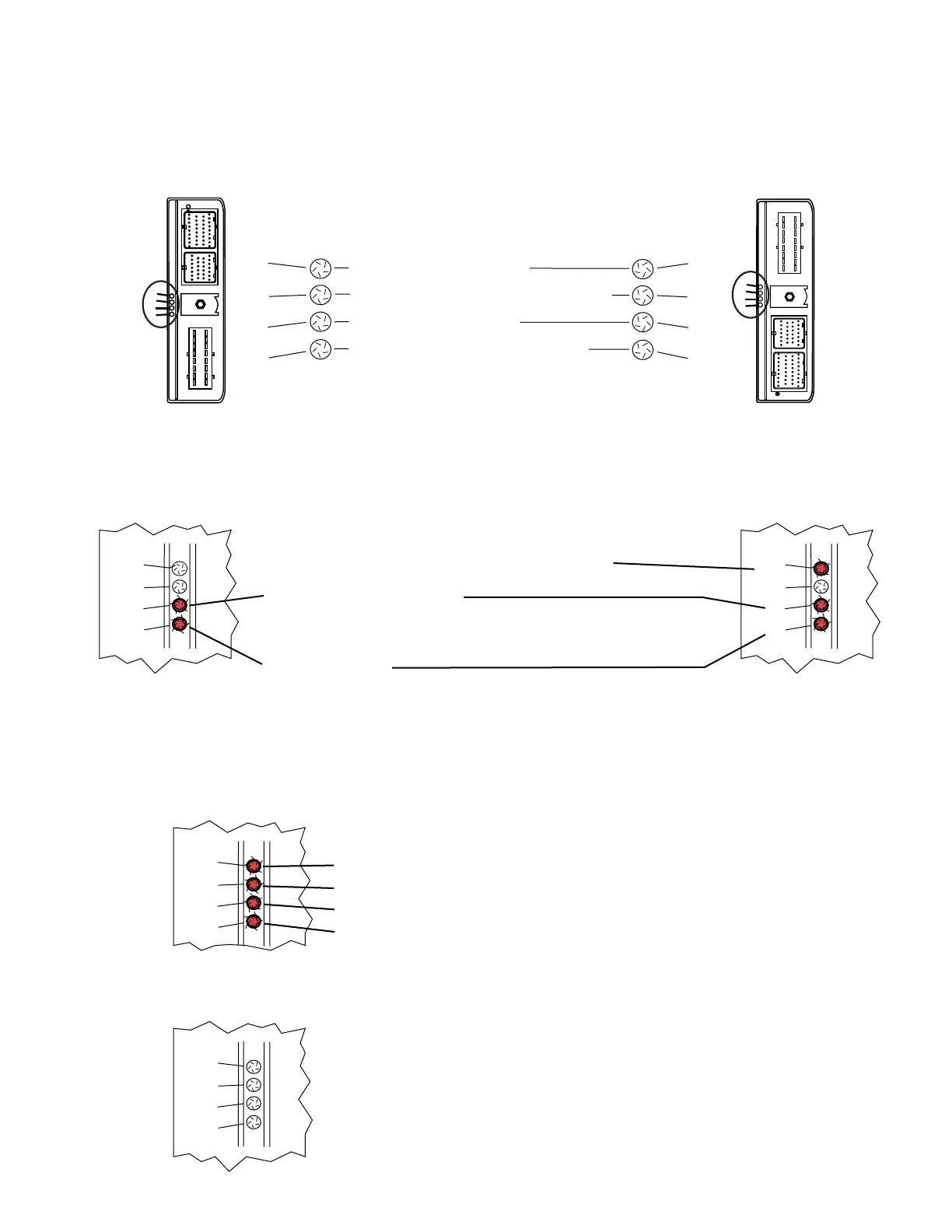

EMM LED Diagnostic Indicators
1
2
3
4
Charging / 55V Circuit
CPS OK - Injection/Ignition/Fault
Sensors / 5V Circuits
Stop Circuit - No Oil/
Overheat
KEY ON : LED’s illuminate to indicate circuit function
STARTING : LED’s illuminate to indicate circuit function
RUNNING : LED’s illuminate to indicate circuit fault
1
2
3
4
1
2
3
4
1
2
3
4
Exception: ALL LED’s ON / FLASHING indicates
Winterization Mode
Stop circuit OK
FLASHING LED – URGENT
overheat or no oil condition
Engine will not start – Correct problem and clear codes
Sensors / 5V Circuits OK
FLASHING LED – URGENT
conditon – Code 57
Engine will not start – Correct problem and clear codes
Indicates 30V (or higher) on 55V circuit
Indicates CPS working and EMM SYNC
1
2
3
4
Start assist circuit (SAC) OK (V models only)
Stop circuit OK
Sensor circuits working
1
2
3
4
1
2
3
4
In-line Models
V Models
Note: No LED’s ON indicates EMM not receiving battery voltage
or Recoil Start model.
For more information, refer to SYSTEM ANALYSIS in the Service Manual.
