54
INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
Install trunnion cover and screw. Tighten retaining
screw to a torque of 60 to 80 in. lbs. (7 to 9 N·m).
Throttle Cable Installation and Adjustment
With remote control lever in NEUTRAL, pull firmly
on firmly on throttle cable casing to remove slack.
Place throttle cable on throttle lever pin and install
washer and retainer clip.
Make sure that idle stop of the throttle lever is
against the crankcase.
Adjust the throttle cable trunnion to align with the
trunnion block. Place the cable trunnion in the
trunnion block.
IMPORTANT: Move control handle to FOR-
WARD and pull back slowly to NEUTRAL. Make
sure the engine throttle lever is against the stop. If
not, remove slack by adjusting cable trunnion.
Install the trunnion cover and screw. Tighten the
retaining screw to a torque of 60 to 80 in. lbs. (7 to
9 N·m).

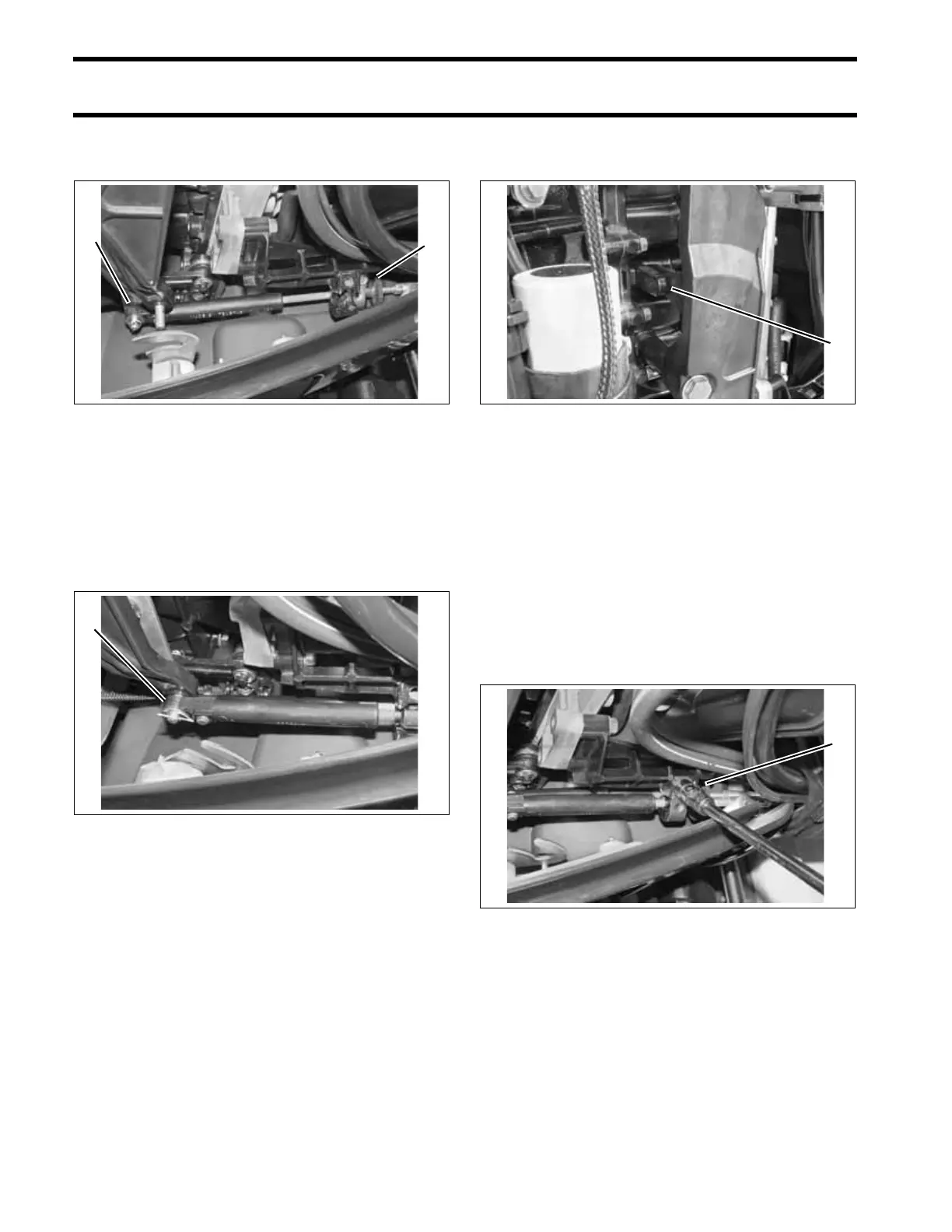

1. Shift cable retainer clip and washer
2. Shift cable trunnion
004956
1. Throttle cable retainer clip and washer 004957
21
1
1. Throttle linkage, idle stop against crankcase 004947
1. Trunnion cover and screw, throttle cable 004958
1
1
