Extron electronics SMP 300 Series User Manual

SMP300 Series • Web-Based User Interface 99
Logs
The Logs page within Troubleshooting displays a list (log) of alerts and notices for any
event set up for a status other than Disabled in the Configuration > Alarms and Traps
> Alarm Message panel. All log entries are read-only. The logs can be sorted, filtered,
searched, or exported to a comma-separated values (CSV) file.
To open this page, click the Troubleshooting tab at the top of the embedded web pages,
then click the Logs tab on the second tier of tabs (see figure82).

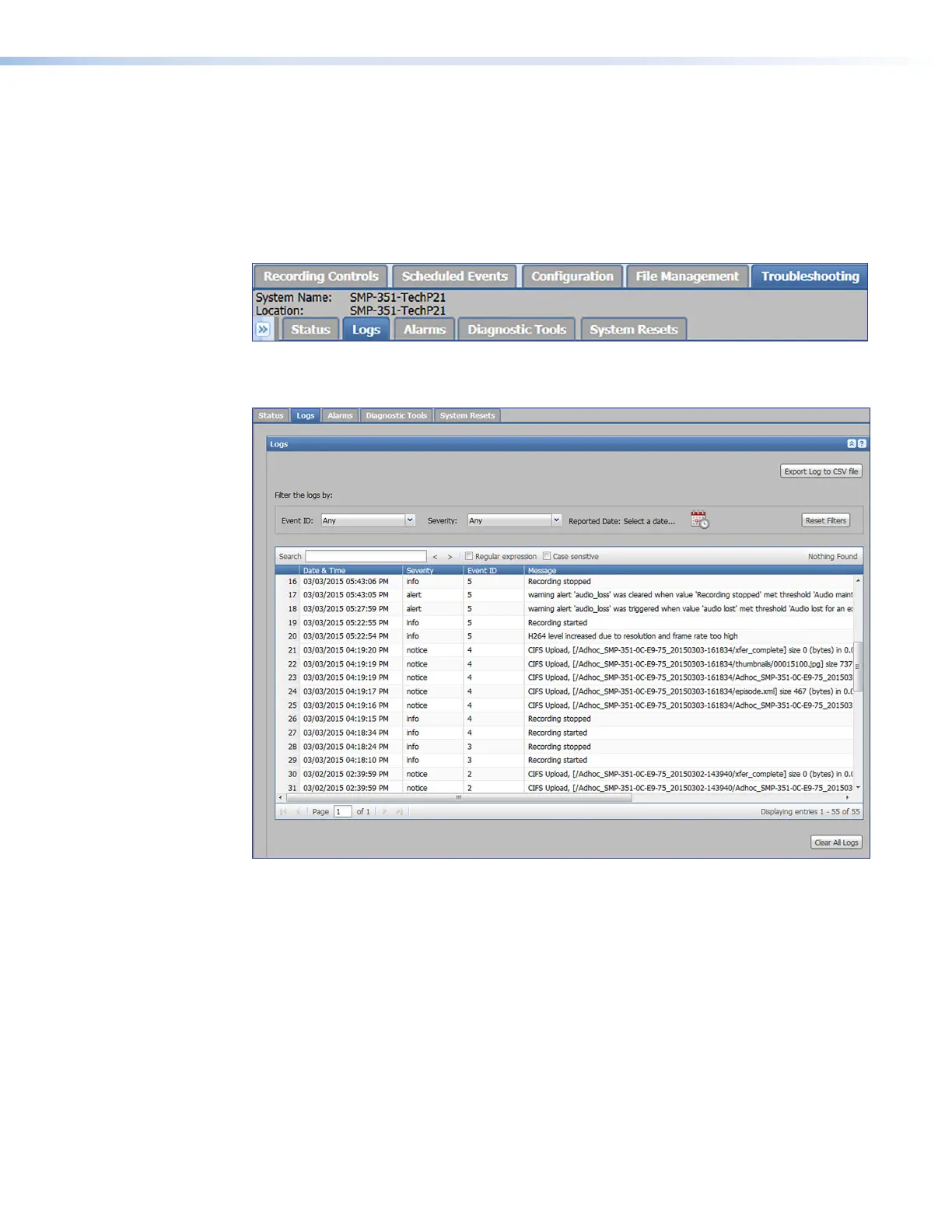

Figure 82. Troubleshooting Tab, Logs Sub-tab
The Logs page opens, showing filtering controls and the log list (see figure83).
Figure 83. Logs Page
For further information, see the SMP300SeriesEmbedded Web Pages Help File.
82
83
