SMP 300 Series • Front Panel Operations 46
Record Drive Limiter
Configure the record drive locations to be limited or to be fully
automatic. The following limitations can be selected:
• OFF (not restricted, default) — Record to internal memory
and any connected drives.
• ON
MENUMENU
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
ADVANCED
CONFIG
Rotate { to toggle Auto
Memory On or Off.
Rotate either to select
reboot or to reset all
advanced configurations.
Rotate either to select a
test pattern.
Rotate [ to select input.
Rotate { to toggle on or off.
Rotate either to select
a resolution.
Rotate either to select
the drive restriction.
IN<1> AUTO IMAGE
<OFF>
TEST PATTERN
<N/A>
RESET
<NONE>
AUTO MEMORY
<ON>
PREVIEW HDMI OUT
<1280X720@60Hz>
RECORD DRIVE LIMITER
<OFF/ON>
Based on the top level selection, the REC LOCATION submenu under Record/Stream
Config offers different record drive options (see Record and Stream Configuration
Menu on page33).
Reset
The Reset submenu provides a factory reset or firmware
reboot. The selections are:
• To Factory — Equivalent to a ZQQQ command (see
Resets on page116). The unit is reset to factory defaults
with the current firmware.
• Reboot Unit — Identical to a power cycle.
MENUMENU
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
ADVANCED
CONFIG
Rotate { to toggle Auto
Memory On or Off.
Rotate either to select
reboot or to reset all
advanced configurations.
Rotate either to select a
test pattern.
Rotate [ to select input.
Rotate { to toggle on or off.
Rotate either to select
a resolution.
Rotate either to select
the drive restriction.
IN<1> AUTO IMAGE
<OFF>
TEST PATTERN
<N/A>
RESET
<NONE>
AUTO MEMORY
<ON>
PREVIEW HDMI OUT
<1280X720@60Hz>
RECORD DRIVE LIMITER
<OFF/ON>
A reset or reboot confirmation message appears before the reset or reboot. After confirming,
the front panel LCD displays Resetting/Rebooting Unit.
NOTE: The factory configured passwords for all accounts on this device have been set
to the device serial number. In the event of a complete system reset, the passwords
convert to the default, which is no password (see Users and Roles on page86 to
change a password).

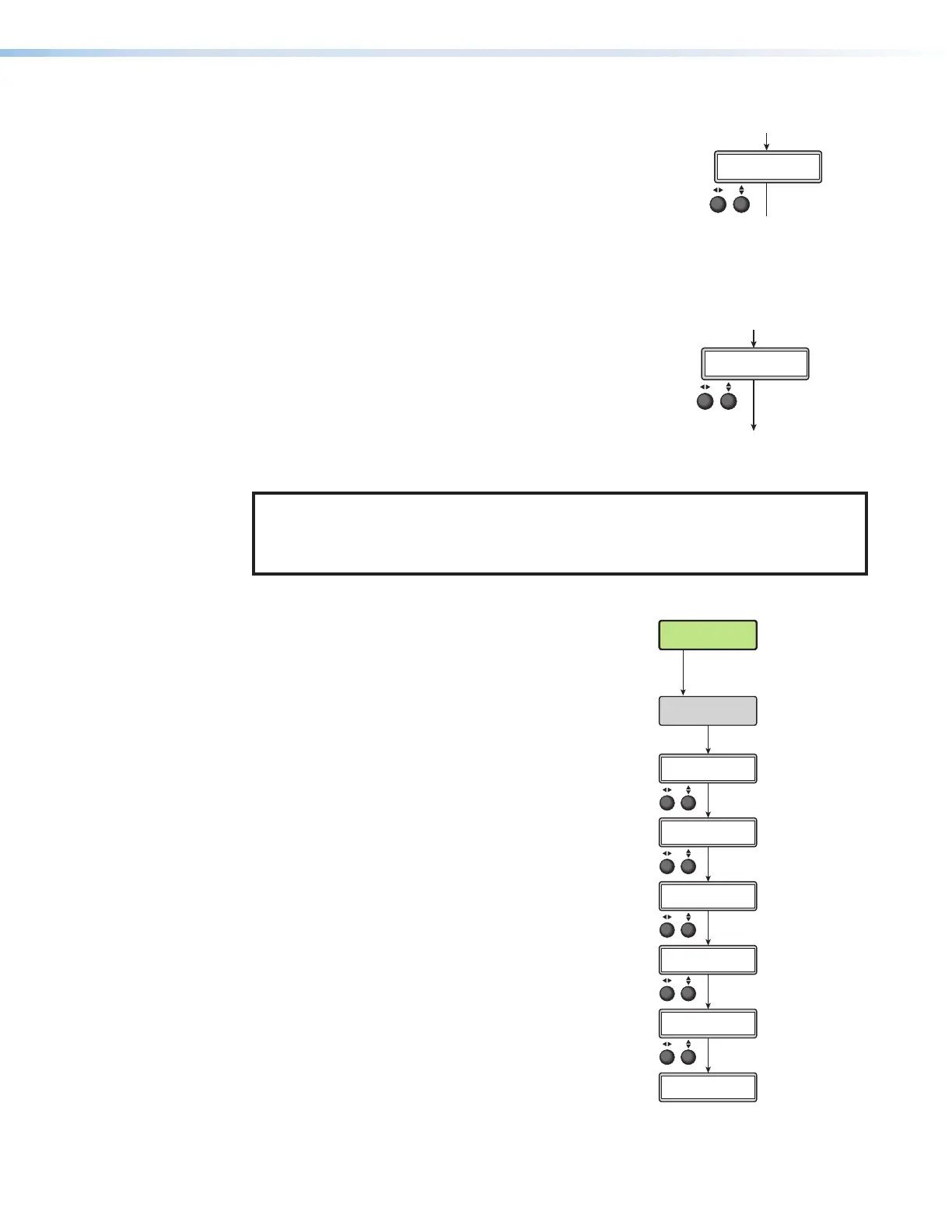

Comm Settings (View and Edit) Menu
The two Comm Settings menus provide a status of the
current serial port and IP settings for the communications
ports. A hidden menu allows changes to the settings.
The main menu defaults to the VIEW COMM SETTINGS
submenus for viewing all communication port settings.
Press NEXT to cycle through the submenu.
The VIEW COMM SETTINGS submenu is read‑only. To
make changes, press and hold NEXT and INPUT5
simultaneously for 3 seconds in the VIEW COMM SETTINGS
menu or any of the submenus. The VIEW COMM SETTINGS
menu changes to the EDIT COMM SETTINGS menu.
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
VIEW COMM
SETTINGS
This is set at the factory and cannot be
changed. (Skipped in “Edit” mode.)
Rotate either to toggle
DHCP mode On or Off.
Rotate [ to select octet field.
Rotate
{ to change address.
“Hidden” Menu*
Press and hold
INPUT 5 + NEXT
for 3 seconds.
Rotate either to change mask.
Rotate
[ to select octet field.
Rotate
{ to change address.
Rotate either to change
the baud rate.
SERIAL PORT
9600 RS232
DHCP MODE
<OFF> On
MAC ADRESS
005A6078CEC
IP ADDR
192.168.254.254
GATEWAY
000.000.000.000
SUBNET
255.255.000.000
EDIT COMM
SETTINGS
