Extron electronics SMP 300 Series User Manual

SMP 300 Series • Introduction 7
TCP/IP
Network
RCP 101
Inputs Outputs
1: HDMI/DVI
HDMI/DVI
rear panel
local output
LAN
port
2: HDMI/DVI
HDMI Loop-
through
(unprocessed)
Channel
A
3: Analog
component
video (YUVp,
YUVi) or
composite video
4: HDMI/DVI
5: 3G/SDI/HD-SDI
(optional)
Channel
B
SMP 300 Series
Deinter-
lacing,
scaling,
rasterizing,
blending
Frame rate
conversion
Archive
encoding
1
Confidence
encoding
Background
PNG le
(internal
storage)
Recording
les
Internal
storage
External
USB drive
(front or
rear port, or
RCP 101)
and
/or
AV
Controls
panel
preview
Str
eamed
archive
output
= Recorded le upload (if set up)
= Optional streamed output
Automatic
2
upload of
recording
to a
network
drive
2
For automatic uploading, set a default
destination (such as Panopto, Kaltura
system, Opencast system, or an FTP,
SFTP, or CIFS server location) to which to
publish recordings (Scheduled Events >
Publish Settings).
1
Archive encoding produces:
• one composite stream for SMP 351 models
• two (dual) streams or one composite stream
for SMP 352 models and for SMP 351
models with LinkLicense.
Streamed
condence
output
Data /
recording
Control
signals
+12 V
power
MARK
RECORD
USB STORAGE

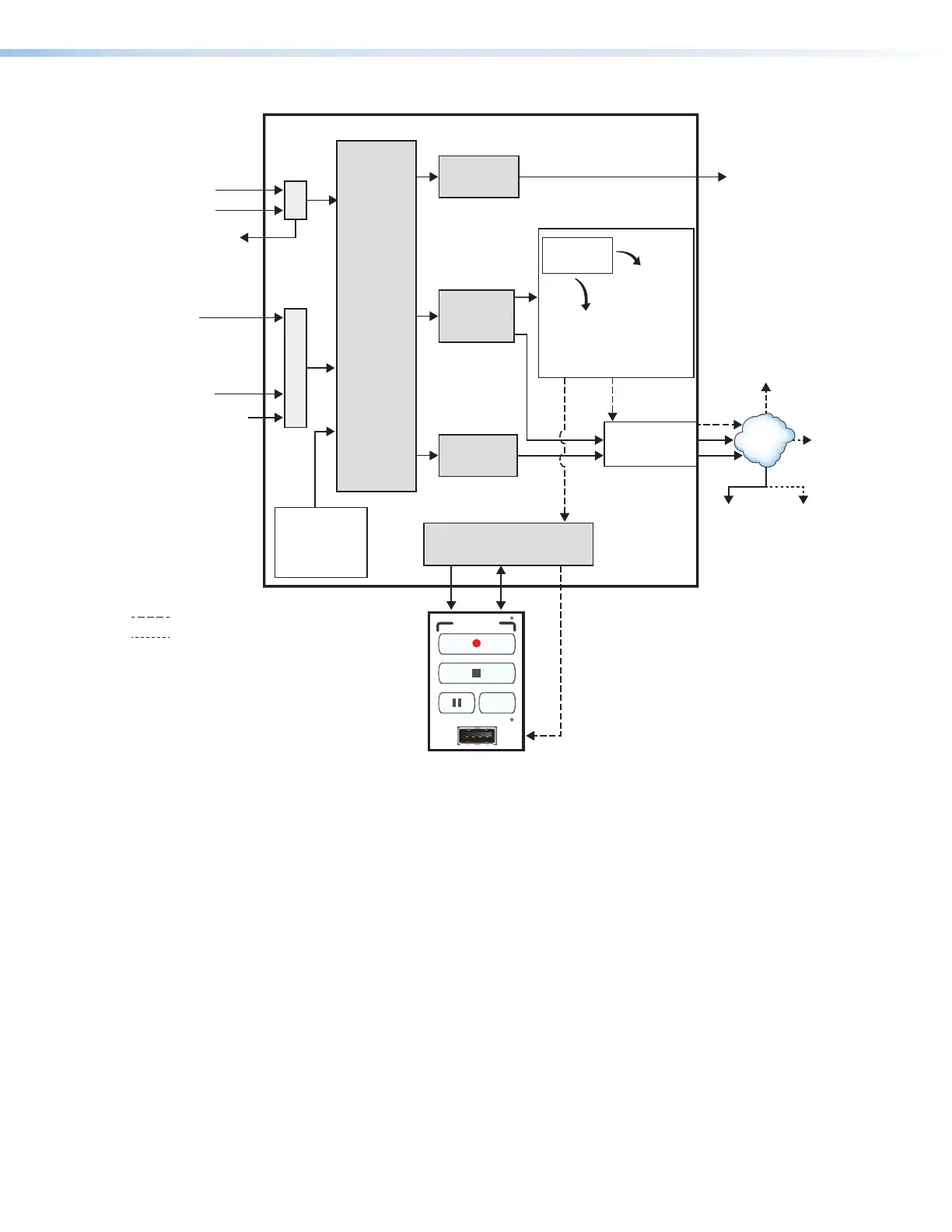

Figure 3. SMP300 Series Block Diagram
File Storage
Internal storage is available for storing background image files and recordings to be
uploaded to a file server. Some models have 150 GB internal, solid state storage. Other
models have 480 GB internal, solid state storage. View the total storage size for a model in
the storage information table found on the Recording Controls embedded web page (see
Storage Information in the SMP 300 Series Embedded Web Pages Help File) or by checking
the part number (Configuration > System Settings > Unit Identification). From
the front panel of the device, use the STATUS menu (see Status Menu on page48) and
scroll down to the Drive Space sub-menu to determine the total drive space and remaining
space.
Two USB ports (one on the front panel, one on the rear panel) provide a connection for
portable, user-provided USB drives for storing recordings. The optional RCP 101 also has a
USB port to connect a user-provided USB drive for storing recordings.
If the unit is connected to a LAN (see Add a Network Share on page96), background
image files provided by a user can be uploaded to the SMP or imported from a network
attached storage drive. To use background images in composite mode, the files must reside
in internal storage.
3
