SMP 300 Series • Front Panel Operations 21
Front Panel Operation
This section of the manual discusses the operation of the SMP300 Series from the front
panel.
Topics covered include:
• Front Panel Features
• Layout Presets (For Composite Mode Only)
• Power Up Procedure
• Front Panel Menu Operation
• Front Panel Lockout (Executive Modes)
• Alarms
Front Panel Features
USB STORAGE
Extron
CONFIG
ADJUST
1
2
3
4
I/O
AUDIO
CHANNEL A
CHANNEL B
LR
1
2
3
4
5
LAYOUT
PRESET
SWAPSWAP NEXT
MENU
NEXTMARK
AAA
BBB CCC DDD EEE FFF GGG HHH JJJIII
SMP 351
Streaming Media Processor

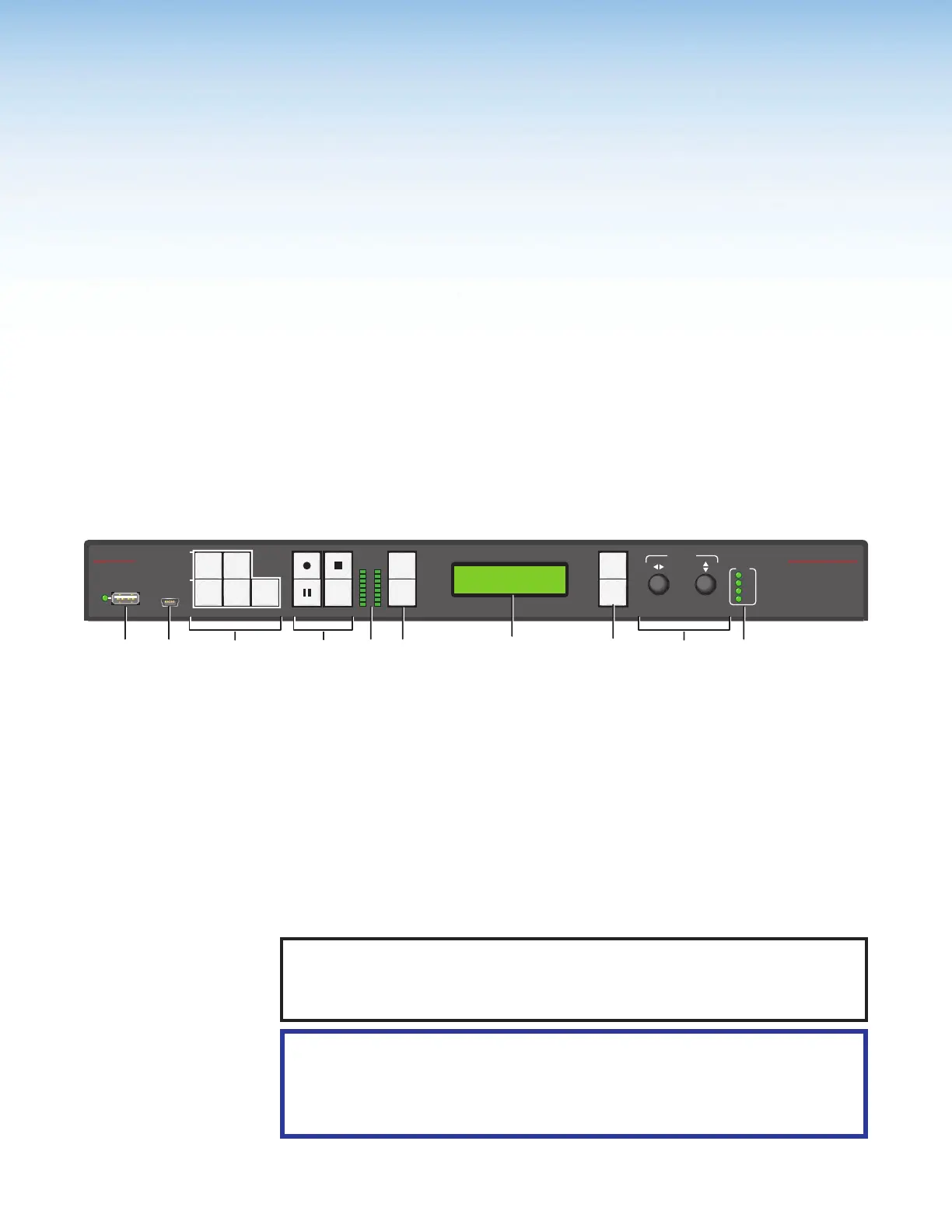

Figure 8. SMP300 Series Front Panel
A
Type A USB connector and activity LED for
external storage
F
Layout Preset and Swap buttons
B
USB mini B connector for configuration
G
Menu display
C
Input buttons for source selection
H
Menu navigation buttons (MENU and NEXT)
D
Record controls with LED indicators
I
Adjust knobs (left [ and right {)
E
Audio level indicators
J
I/O display LEDs
A
USB storage port and activity LED — Connect a USB compatible media device to
this port. The green LED blinks during both reading and writing of data. The storage
device can be any standard external hard drive or USB flash drive formatted with a
compatible file system.
NOTE: The SMP300 Series can detect and record to USB storage devices
using FAT32, VFAT long file name extensions, EXT2, EXT3, EXT4 file systems,
or NTFS‑formatted storage volumes. For FAT32 USB storage, file sizes must be
limited to 4GB or the recording creates multiple 4 GB files.
ATTENTION:
• Disconnecting a USB device while recording to it may result in corrupt or lost
data.
• Déconnecter un périphérique USB alors qu’un enregistrement y est effectué,
peut engendrer une altération ou une perte de données.
