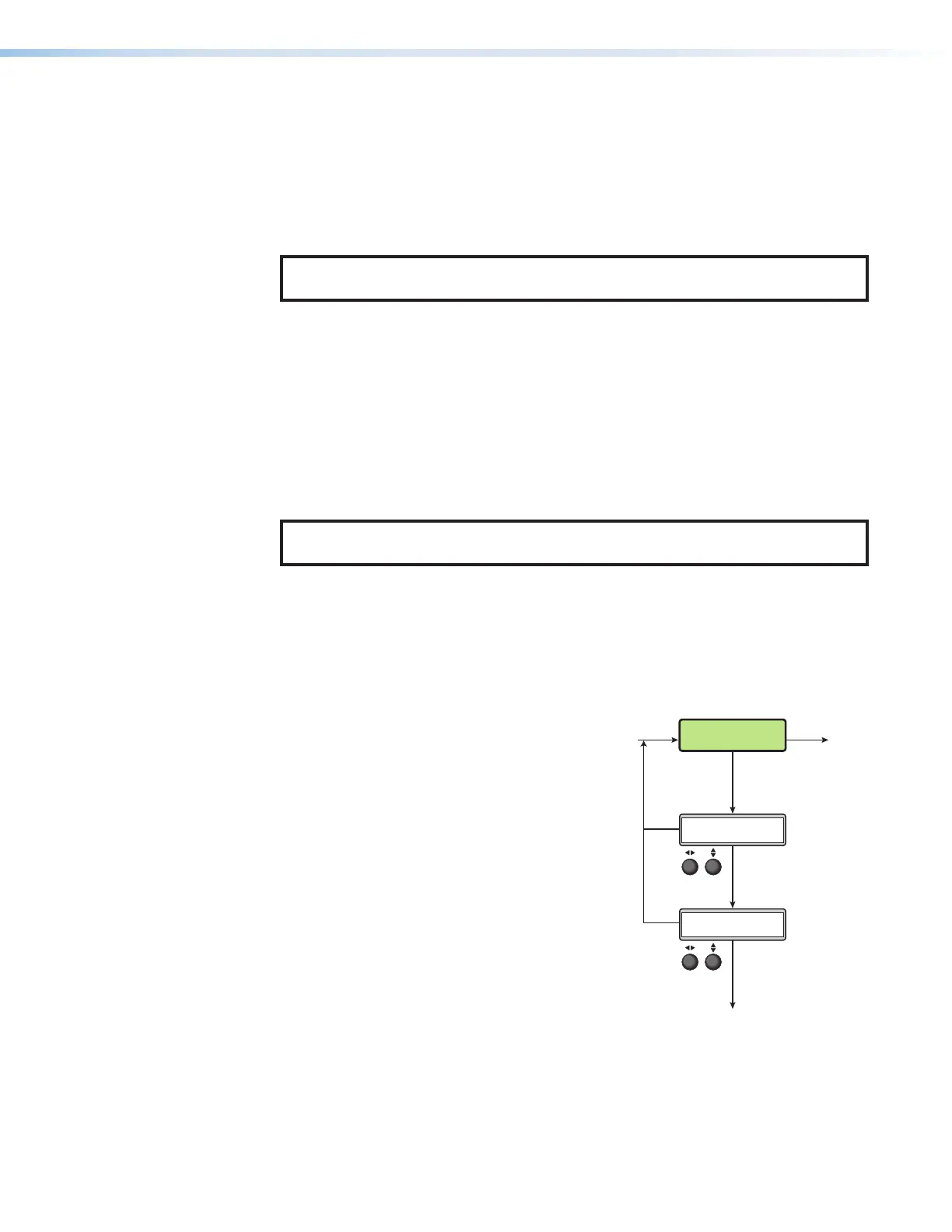

SMP 300 Series • Front Panel Operations 30
To save a user preset from the front panel:
1. From the Picture Control menu, configure the selected input as desired (see Input
Configuration Menu on page39).
2. Press MENU to cycle through the main menus to the Presets menu.
3. Press NEXT to cycle to the User Save submenu.
4. Rotate the left ([) ADJUST knob to select the input.
NOTE: Only the selected front panel channel A and the selected channel B inputs
are available.
5. Use the right ({) ADJUST knob to select one of the 16 user presets.
6. Press NEXT to save the new preset values.
Each input has sixteen user preset locations available. A configuration can be saved to any
preset number using this menu, the embedded web pages, or via SIS. Select N/A and press
NEXT to exit without saving settings.
To recall a user preset from the front panel:
1. Press MENU to cycle through the main menus to the Presets menu.
2. Press NEXT to cycle to the User Recall submenu.
3. Rotate the left ([) ADJUST knob to select the input.
NOTE: Only the selected front panel channel A and the selected channel B inputs
are available.
4. Use the left ({) ADJUST knob to select one of the sixteen user presets.
5. Press NEXT to select the new preset for the input.
Each input has 16 user presets recalled using this menu, the web pages, or via SIS. Select
N/A and press NEXT to exit without applying the user preset settings.
Picture Control Menu
The Picture Control menu includes all picture
settings such as color, tint, brightness, and contrast. In
composite mode, it allows the user to adjust horizontal
and vertical window positioning along with horizontal
and vertical window size for the selected input (see
Layout Presets (For Composite Mode Only) on
page23).
From the Picture Control menu, press NEXT to
move to the desired submenu.
In full screen mode, only channel A or only channelB
is displayed. If both channels are active, use the
ChannelSelect submenu and either adjustment
control to select between channel A and B. The
submenu displays the status of the selected window.
Within the submenu, use the ADJUST knobs to select
and change values as required.
Press MENU to exit the submenu.
0(18
0(18
0(18
0(18
1(;7
1(;7
0(18
1(;7
0(18
1(;7
CONTROL
PRESETS
H POSITION [A] V
<+0000> <+0000>
CHANNEL SELECT
<A> <ON>
ENCODER RECALL
<N/A>
ENCODER SAVE
<N/A>
Rotate = to select a channel.
Rotate ] to turn the channel
on or off.
Rotate = to adjust Horizontal
Position.
Rotate ] to adjust Vertical
Position.
Rotate either to
select a preset.
Press 0(18 to recall the
selected preset.
Press 1(;7 to continue.
Rotate either to select a
preset to save current
settings to.
Press 0(18 to save the
the new preset.
Press 1(;7 to continue.
