SMP 300 Series • Installation 15
Installation
This section provides information on:
• Mounting the SMP300 Series
• Rear Panel Overview
• Rear Panel Reset
Mounting the SMP300 Series
The SMP300 Series models are housed in a 1U high, full rack width metal enclosure that
can sit on a table with the provided rubber feet or mounted using the attached rack mounts.
Select a suitable mounting location (see Mounting the SMP300 Series on page138),
then choose an appropriate mounting option.
• Before connecting the SMP300 Series, turn off all devices that are to be connected.
• Connect all external devices to the SMP models before applying power.
Rear Panel Overview
50-60 Hz
100-240V 0.8A MAX
USB STORAGE
RESET
LAN
1
3
B-Y
R-YVID
/Y
5
4
HDMI
3G/HD/SDI
HDMI
HDMI
AUDIO
LR
LR
HDMI
LOOPOUT
2
INPUTS-CH A
INPUTS-CH B
OUTPUTS
1 234G
DIGITAL I/O
Tx Rx
RS-232
G
REMOTE
AUDIOLR AUDIOLR
MOUSE /
KEYBOARD
1
2
SMP 351
A
A
B
B
C
C
D
D E
E F
F
G
G
H
H
J
J
I
I
K
K
L
L M
M N
N O
O P
P Q
Q

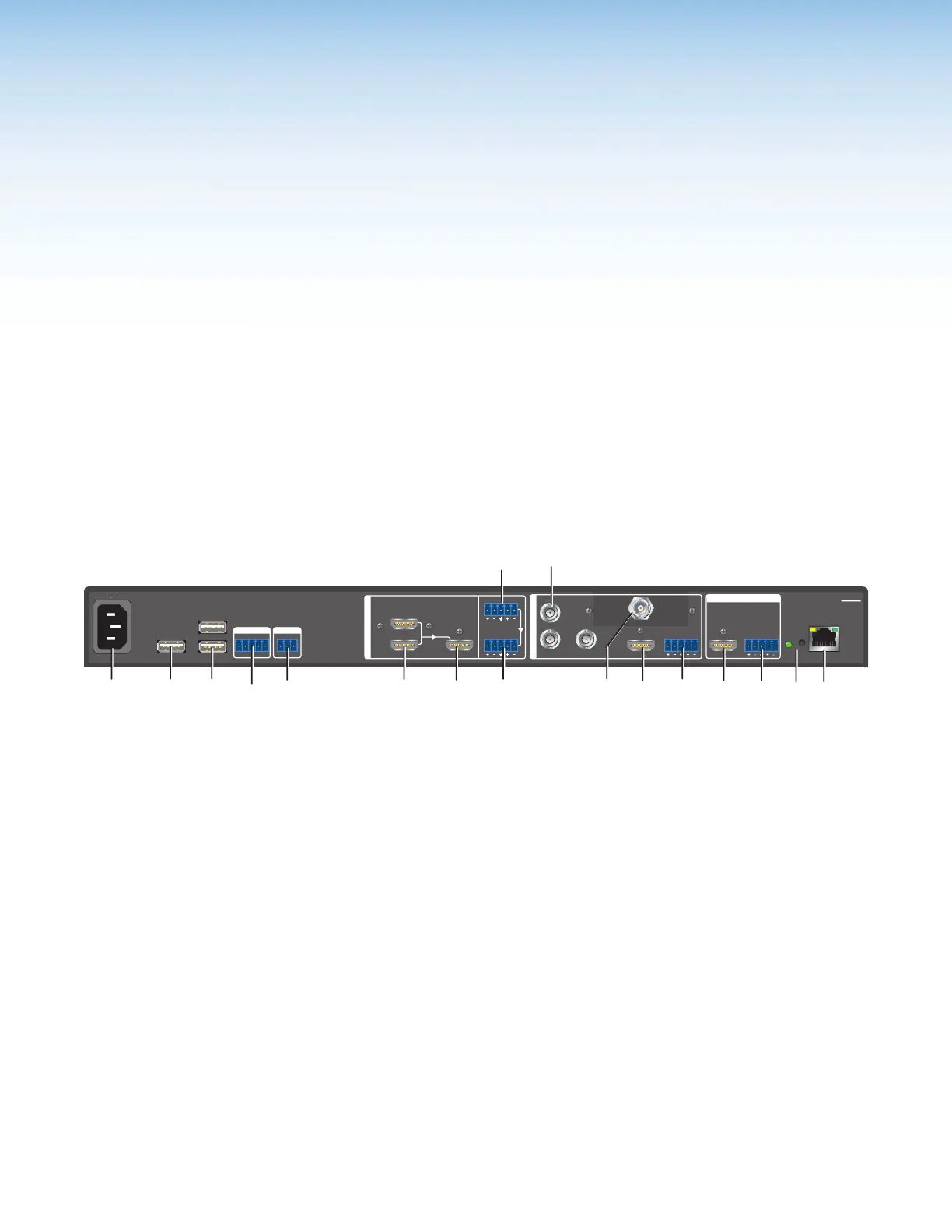

Figure 4. SMP300 Series Rear Panel (SMP351 3G-SDI shown)
A
100-240 VAC IEC connector for power input
J
(Optional input 5) 3G/HD/SDI input card
(SMP 351 3G-SDI and SMP 352 3G-SDI only)
B
USB type A port for external storage device
K
3.5 mm, 5-pole captive screw port for channelB
analog stereo audio input
C
(2) USB type A ports for mouse and keyboard, or
remote control RCP 101
L
HDMI loop thru from input 1 or 2
D
3.5 mm, 5-pole captive screw port for digital I/O
M
3.5 mm, 5-pole captive screw port for channel A
analog stereo audio loop output
E
3.5 mm, 3-pole captive screw port for Simple
Instruction Set (SIS™) control over RS-232
N
HDMI preview output
F
HDMI inputs 1 and 2
O
3.5 mm, 5-pole captive screw port for analog stereo
audio output
G
3.5 mm, 5-pole captive screw port for channelA
analog stereo audio input
P
Reset button and LED
H
3 BNC connectors for component or composite
video input 3
Q
RJ-45 Ethernet port for LAN connection
I
HDMI input 4
4
