SMP300 Series • Web-Based User Interface 88
Alarms and Traps
In the Alarms and Traps page within Configuration, an administrator can configure
e-mail account and communication settings to allow the unit to send notification e-mails.
This is also the location for selecting whether to log, display a message about, or send an
email about various conditions and errors experienced by the SMP300 Series.
To open this page, click the Configuration tab (see figure66) at the top of the SMP
embedded web pages and click the Alarms and Traps tab on the second tier of tabs.

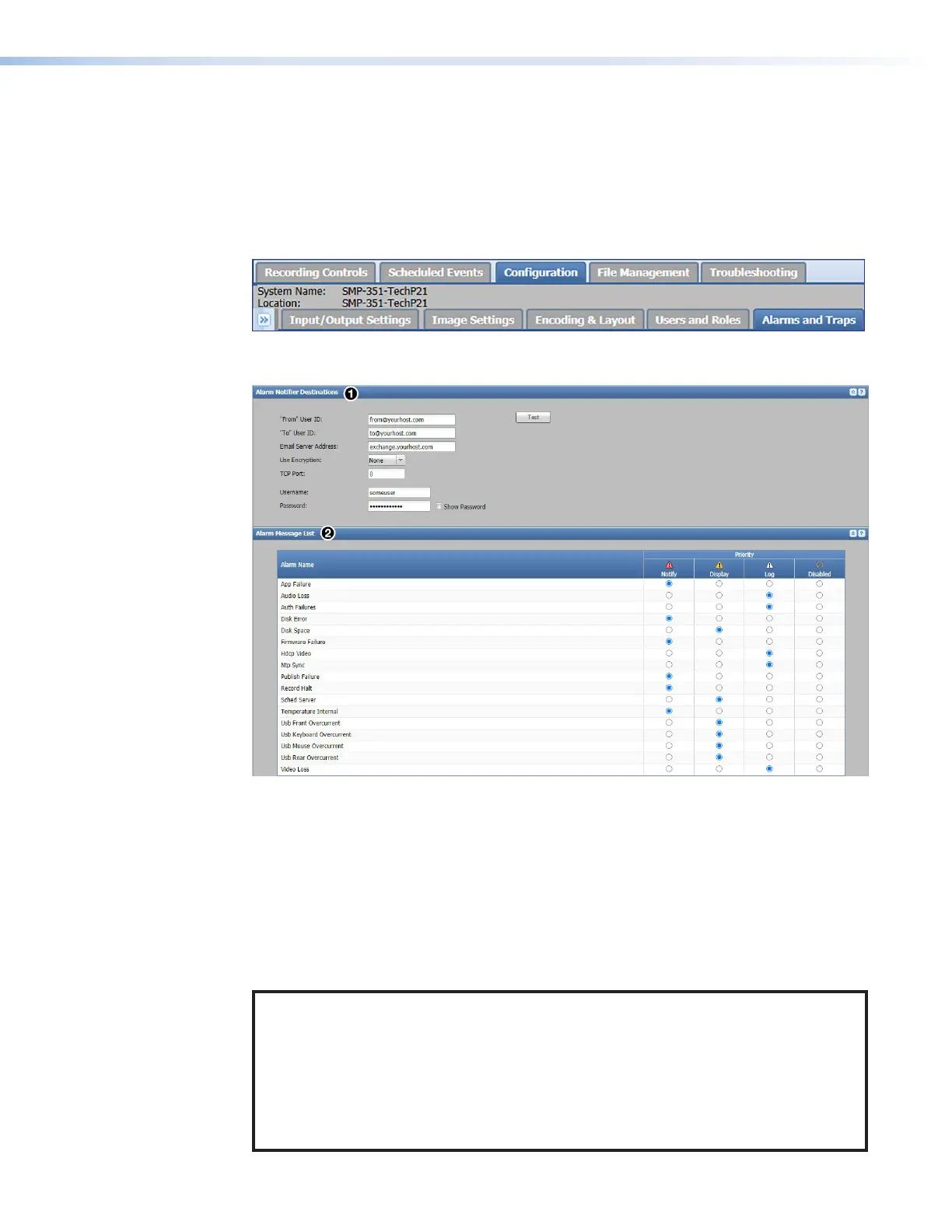

Figure 66. Configuration Tab, Alarms and Traps Subtab
The Alarms and Traps page opens, showing the two panels (see figure67).
Figure 67. Alarms and Traps Page
1
Alarm Notifier Destinations — Enter email sender and receiver information for alarm
notifications (see the Alarm table on page50 for more information on the alarms).
2
Alarm Message List — Choose the priority for a given alarm on the SMP, or disable
the alarm. The options for an alarm are:
• Notify — The SMP sends an email and unsolicited SIS response.
• Display — The indicate alarm LED is active on the front panel, AAP or wallplate,
and web page. The event is also logged.
• Log — The SMP records the alarm in the events log only.
• Disabled — The alarm is disabled.
NOTES:
• If internal storage space is nearly full (when the disk space alarm is triggered) and
the SMP is set up to automatically upload recordings to a server (see Publish
Settings on page69), then the SMP uses an automatic disc cleanup feature to
make room for new recordings. The unit automatically deletes previous recordings
that have been uploaded to a server, starting with the oldest recordings, until there
is enough free space on the disk.
• All active alarms can be manually cleared by an administrator via the web page.
66
67
