SMP 300 Series • Front Panel Operations 28
Presets Menu
The presets menu allows the user to save or recall encoder and user presets.
• From the default menu, press MENU to cycle to the Presets menu.
• Press NEXT to enter the submenus.
• Press NEXT to advance to the relevant submenu: Recall or Save.
• Within the submenu, use the ADJUST controls to select the preset, then press NEXT to
recall or save the selection.
• Press MENU to exit the submenu.
MENU
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
PRESETS
Rotate either to
select a preset to recall.
Rotate either to select
a preset # to save
current settings to.
Rotate [ to select an
input.
Rotate { to select a preset.
Rotate [ to select an
input.
Rotate { to select a preset.
ARCHIVE ENCODER
RECALL
<N/A>
ARCHIVE ENCODER
SAVE
<N/A>
IN<1> USER RECALL
<N/A>
IN<1> USER SAVE
<N/A>
MENU
NEXT
NEXT
NEXT
NEXT
NEXT
PRESETS
Rotate horizontal knob to select
encoder. Rotate vertical knob to
select a preset to recall.
Rotate horizontal knob to select
encoder. Rotate vertical knob to
select a preset to recall.
Rotate [ to select an
input.
Rotate { to select a preset.
Rotate [ to select an
input.
Rotate { to select a preset.
CHA ARCHIVE ENCODER
RECALL
<N/A>
CHA ARCHIVE ENCODER
SAVE
<N/A>
IN<1> USER RECALL
<N/A>
IN<1> USER SAVE
<N/A>

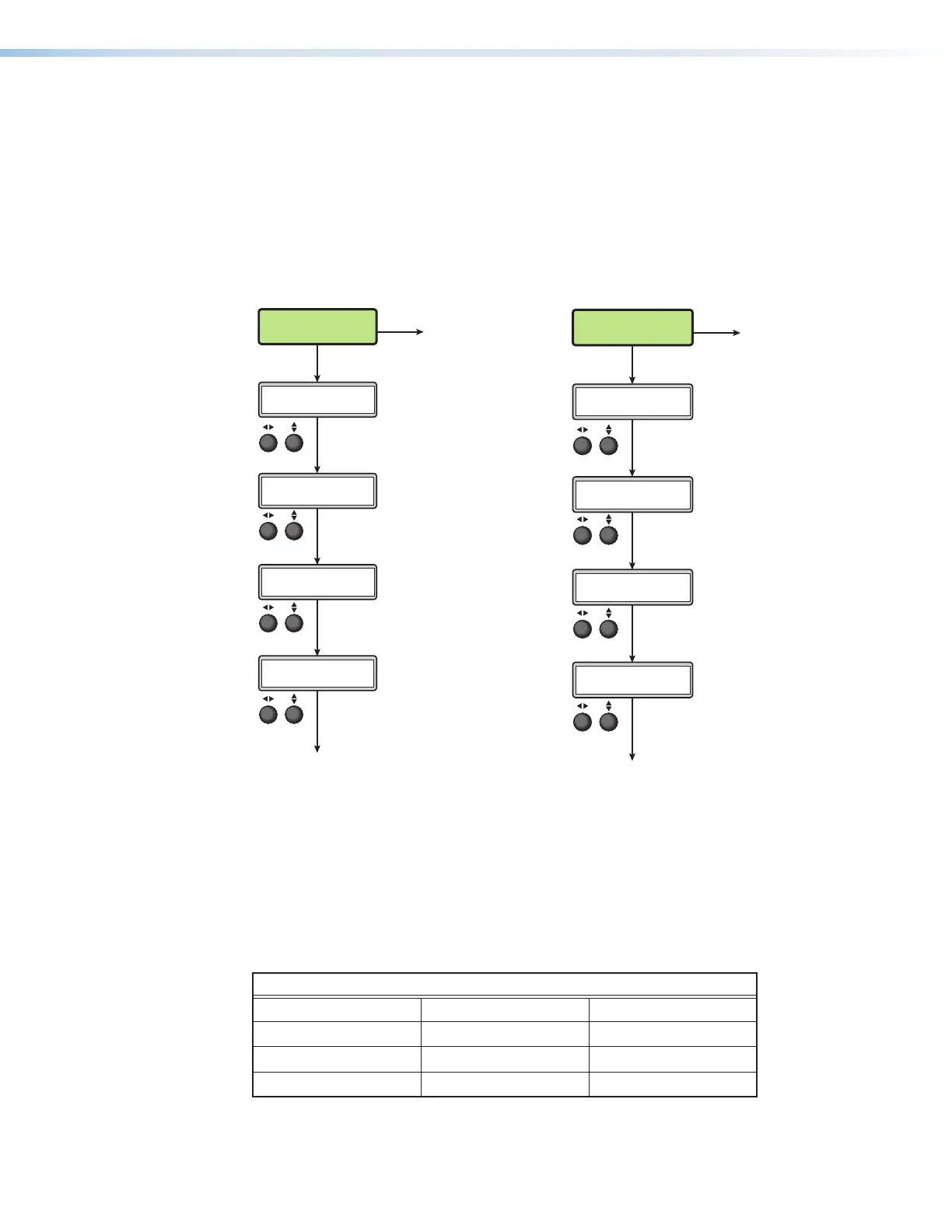

Figure 16. Presets Menu in
Composite Mode
Figure 17. Presets Menu in Dual
Channel Mode
Encoder presets
Encoder presets allow users to quickly switch between various encoder profiles for different
resolution and bit rates. There are 32 encoder presets for different streaming and recording
applications. Presets 33 through 42 are factory default presets to support Panopto quality
settings.
Encoder presets save the following parameters:
ENCODER PRESETS
Video Resolution
Profile Type
Record Mode
Video Bit Rate
Profile Level
GOP Length
Frame Rate
Audio Bit Rate
Preset Name
Bit Rate Control
Audio Delay
IDR Interval
