Extron electronics SMP 300 Series User Manual

SMP300 Series • Web-Based User Interface 100
Alarms
The Alarms tab within Troubleshooting displays a list of alerts for events as
determined in Configuration > Alarms and Traps > Alarm Message List. Alarm list
entries are read-only. The alarm list can be sorted, filtered, searched, or exported to a
comma-separated values (CSV) file.
To open this page, click the Troubleshooting tab at the top of the SMP300 Series
embedded web pages, then click the Alarms tab on the second tier of tabs (see figure84).

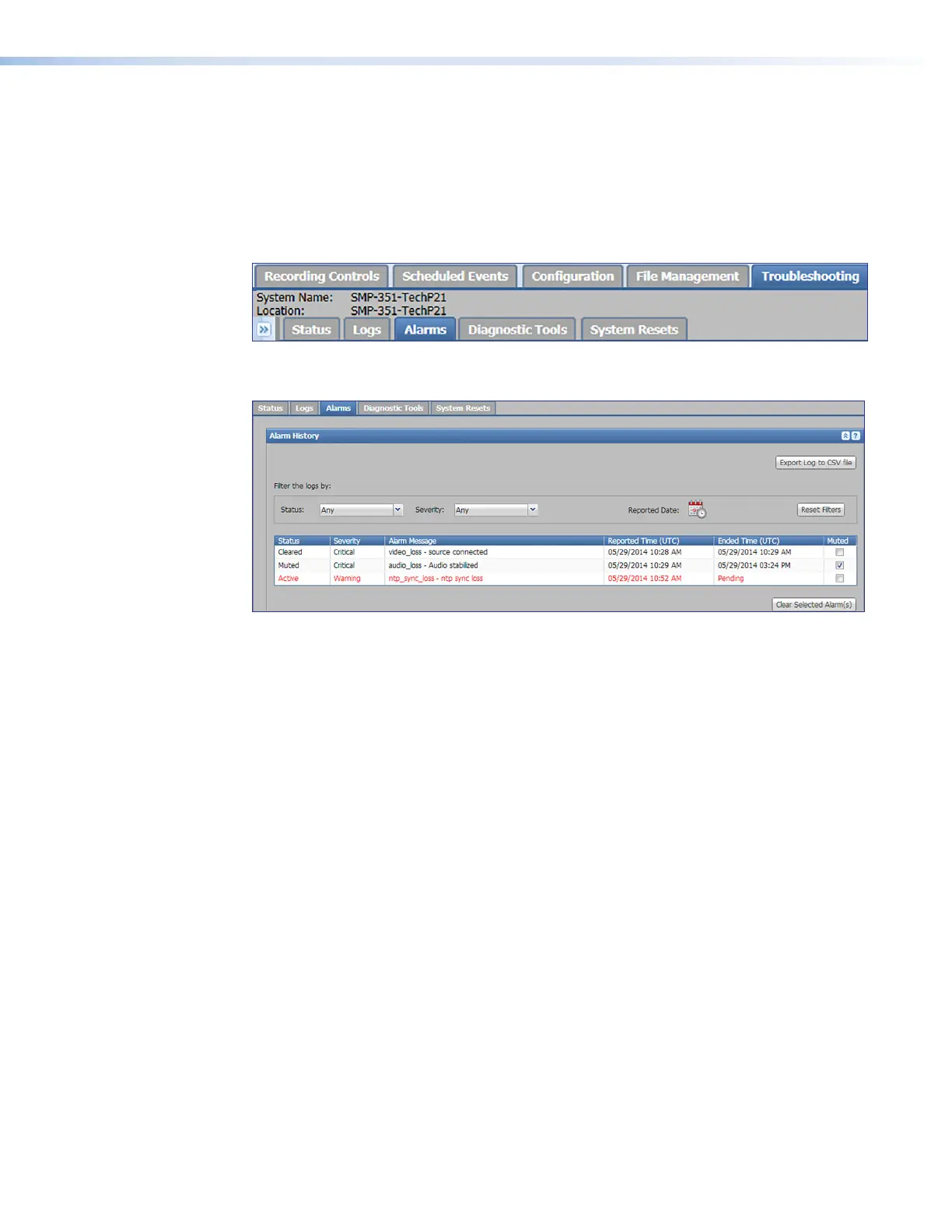

Figure 84. Troubleshooting, Alarms Sub-tab
The Alarms page opens, showing filtering controls and the alarm history list (see figure85).
Figure 85. Alarms Page, Alarm History Panel
• Active, unresolved alarms are displayed as red text.
• To clear or remove an alarm, select the row it is listed in and click Clear Selected
Alarm(s).
• To mute an alarm, so that it does not appear in the alarm list again the next time it is
triggered, select the checkbox for that alarm in the Muted column.
For further information about the Alarms page, see the SMP300SeriesEmbedded Web
Pages Help File.
