Extron electronics SMP 300 Series User Manual

SMP 300 Series • Front Panel Operations 26

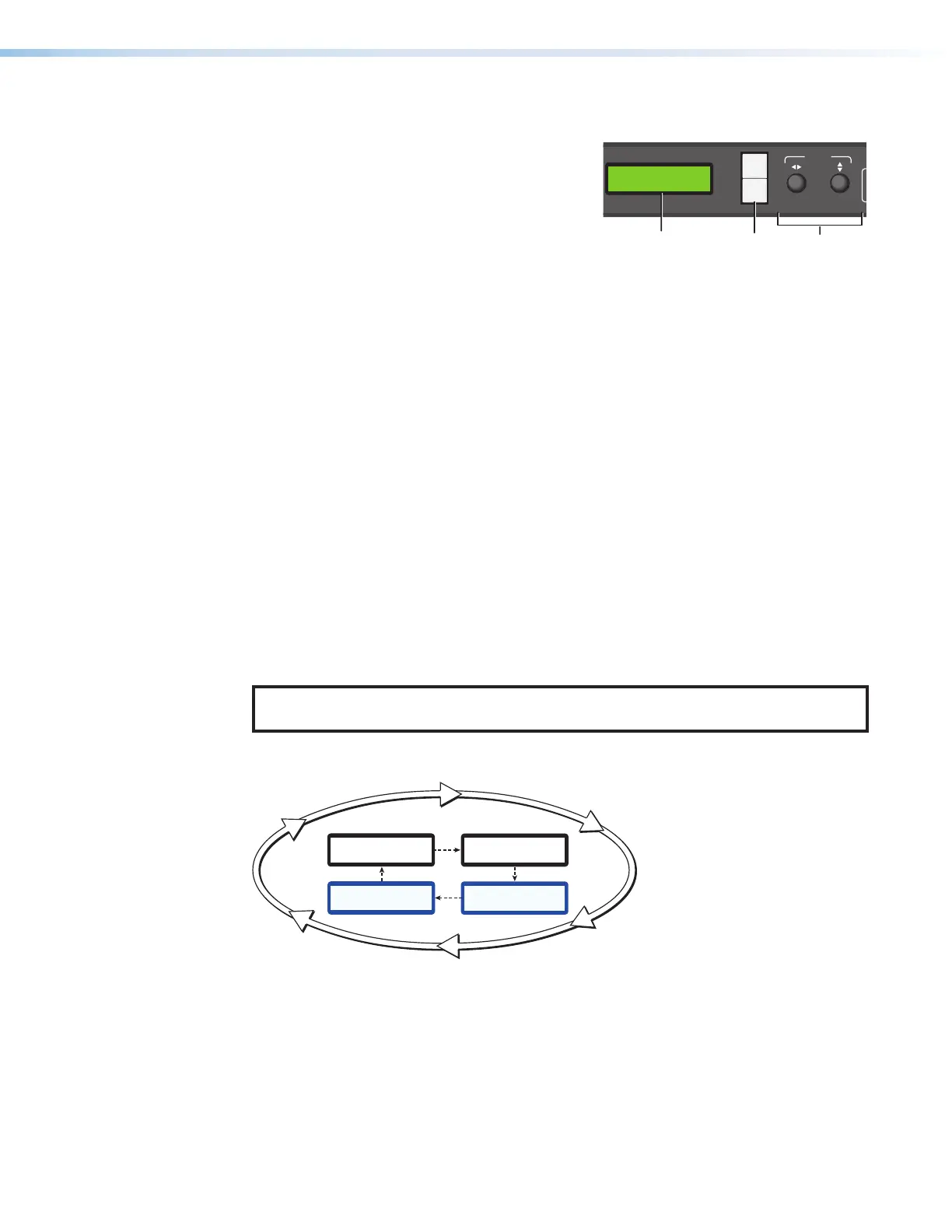

Front Panel Menu Operation
Configuration and adjustments can be
performed using the embedded web pages (see
Overview of the Web-Based User Interface
on page52), SIS commands (see Remote
Communication and Control starting on
page106), or the front panel controls and the
menus displayed on the LCD screen (see image
at the right,
G
). These menus are used primarily
during the initial set up.
USB STORAGE
Extron
CONFIG
ADJUST
1
2
3
4
I/O
AUDIO
CHANNEL A
CHANNEL B
LR
1
2
3
4
5
LAYOUT
PRESET
SWAPSWAP
NEXT
MENU
NEXT
MARK
A
A
A
B
B
B C
C
C D
D
D E
E
E F
F
F
G
G
G H
H
H
J
J
J
I
I
I
SMP 351
Streaming Media Processor
Menu Navigation
G
Menu display — Displays the configuration menus on a 16x2 LCD display.
H
Navigation buttons —
• MENU button — Press to activate menus and cycle through the main menus.
• NEXT button — Press to move between the submenus of the selected main
menu.
I
ADJUST knobs ([,{) — In configuration mode, rotate the left ([) control and right ({)
control to scroll through submenu options and to make configuration selections (see the
flowcharts in this chapter for details).
Menu Overview
After start‑up, when no adjustments are actively being made, the Default Display Cycle
(see figure13 below and figure14 on page27) runs on the Menu display LCD (
G
). The
screen progressively cycles through the input and output format information, showing the
number and video format of the active input and the current output resolution.
NOTE: If a signal is not present on the currently selected input, NOT DETECTED appears
in place of the input type. For example, IN#4 NOT DETECTED.
If there is an active recording, TIME RECORD displays the current length of the recording.
TIME REMAIN shows the time remaining for an active scheduled recording.
EXTRON
ELECTRONICS
2
sec.
EXTRON
SMP 351 FW V1.00
45
sec.
SMP 351
INITIALIZING
LOADING
FIRMWARE
30
sec.
~4
sec.
Power
On
NOTE: The information shown in the default display cycle differs
depending on the active input and the type of video signal.
Time Record displays only during a recording.
Time Remain displays the remaining time in the event and the
estimated recording time available during an unscheduled
recording.
Default Display Cycle
2
sec.
HH:MM:SS
TIME RECORD
2
sec.
2 sec.
In#1 1024x768@60
In#3 720p@60
2 sec.
ARCHIVE 5.0 MB
1280x720@30 fps
HH:MM:SS
TIME REMAIN
Figure 13. Default Display Cycle for Composite Mode
13
