SMP300 Series • Web-Based User Interface 79

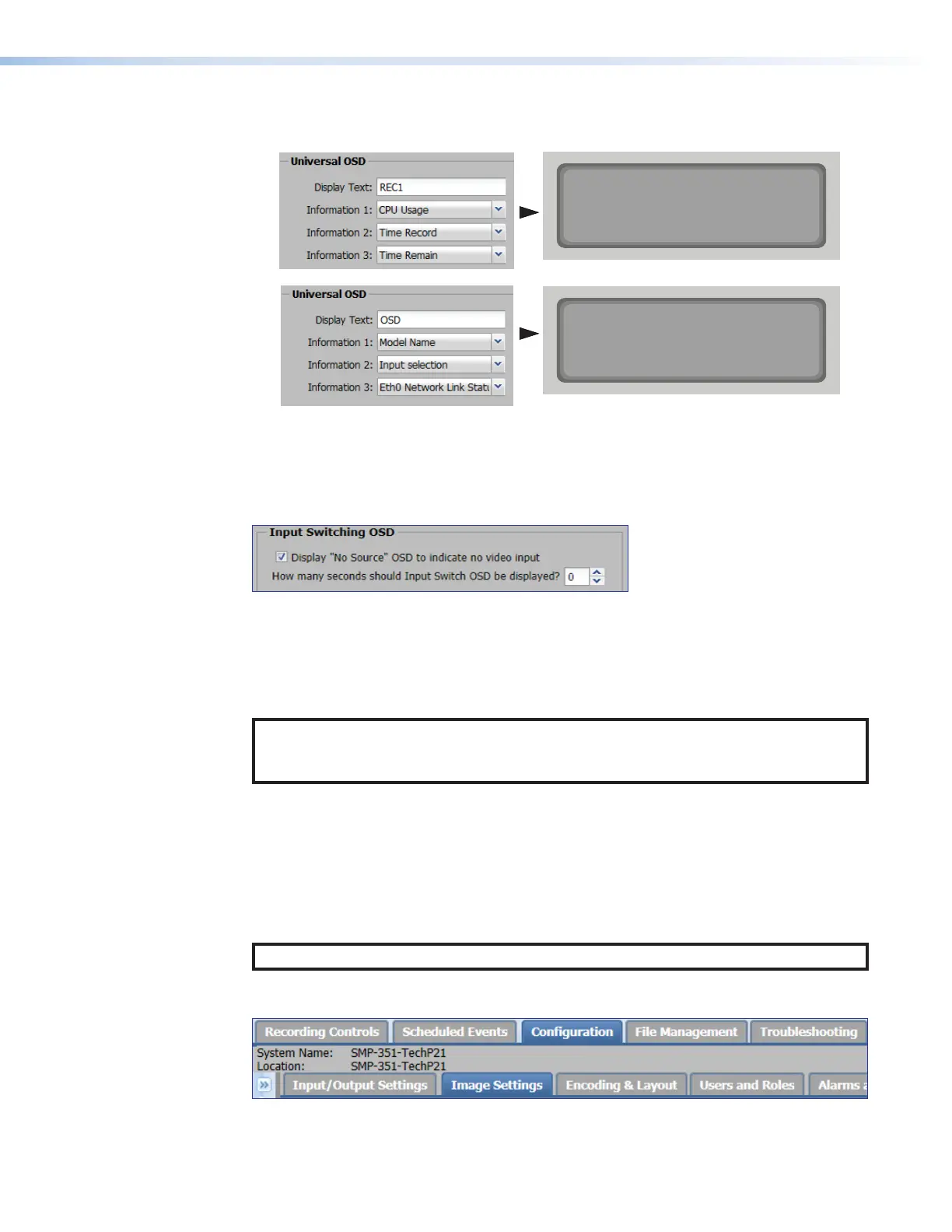

See figure57 for examples of how the configuration settings (on the left) translate to the
universal OSD (on the right).
REC1,CPU Usage 56%
00:10:33,20:10:51
OSD, SMP 351,1*4,up*100*full
Figure 57. Universal OSD Information Selection and Display
Input Switching OSD
Select the Display "No Source" OSD to indicate no video input checkbox to remove
the check mark and disable this OSD.
Figure 58. “No Source” OSD Selection
When enabled, enter a number into the How many seconds should Input Switch OSD be
displayed? field or use the Up and Down arrows next to the field to select a number from 0
to 300 seconds.
By default, the SMP displays a "No Source" OSD when there is not an active video input.
NOTE: If Active Input in Full Screen is selected in from the When there’s no
input, display drop-down in Configuration>Encoding & Layout> Layout
Presets, the "No Source" OSD will not appear.
For more options, see the SMP300SeriesEmbedded Web Pages Help File.
Image Settings
Use the controls within the Image Settings page within the Configuration tab to
configure video input sampling and sizing, set up overscanning of SMPTE input signals, and
adjust picture controls (brightness, contrast, and similar). Also save or recall input and user
presets from this page.
NOTE: A user must be logged in as an administrator to see or change these settings.
To open this page, click the Configuration tab at the top of the SMPSeries embedded
web pages and then click the Image Settings tab on the second tier of tabs.
Figure 59. Image Settings Sub-tab
