SMP300 Series • Web-Based User Interface 80
The Image Settings page opens (see figure60).

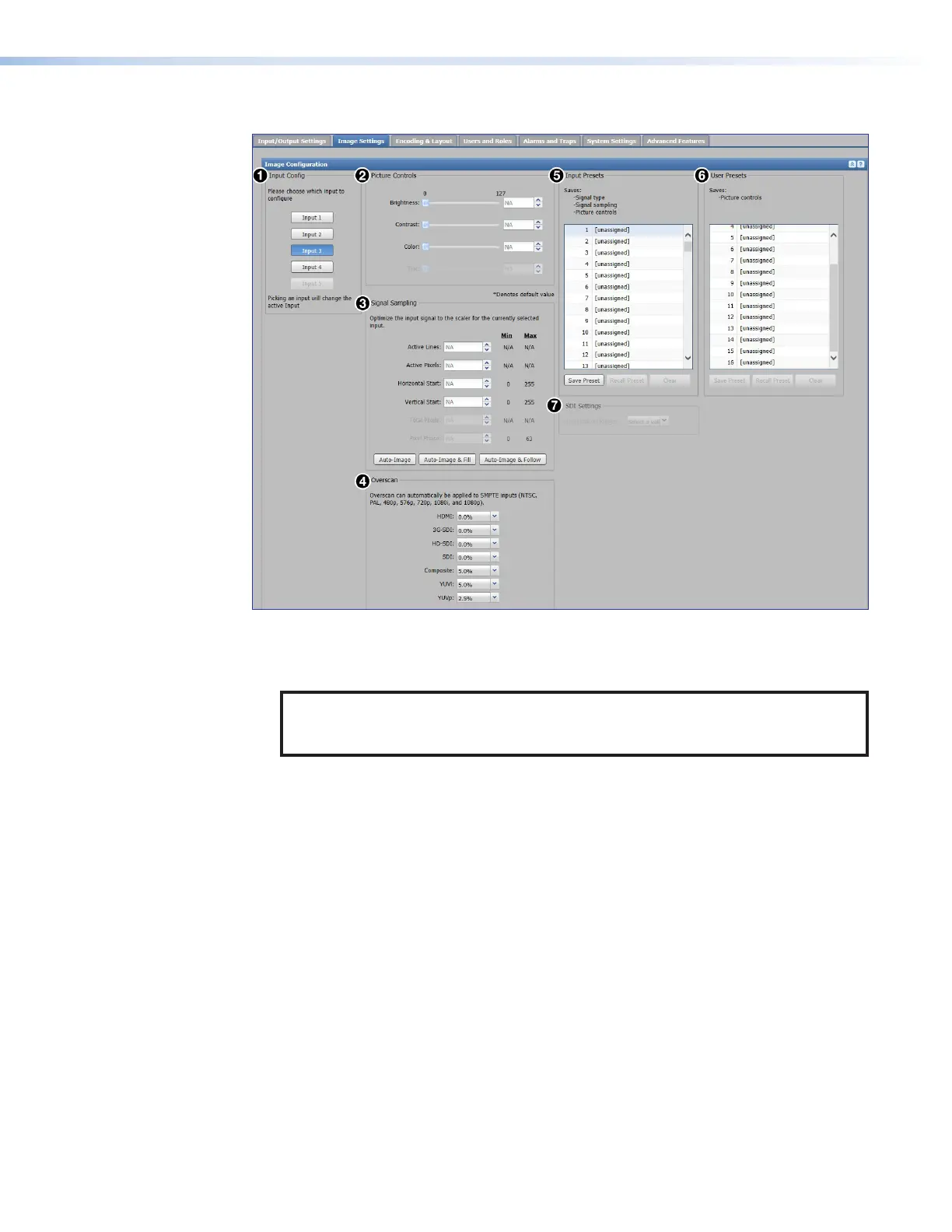

Figure 60. Image Settings Page
This page has a collapsible panel with seven sections (see figure60):
1
Input Config — Select the input to be configured.
NOTE: You must select an input from the Input  panel in the upper left
of this page before you can adjust the image settings or save or recall presets.
Selecting an input within the Image Settings page also changes the active input.
2
Picture Controls — Alter the quality of the image by changing brightness, contrast,
color, and tint.
3
Signal Sampling — Configure the size, location, and aspect ratio of the currently
selected input or select Auto-Image, Auto-Image & Fill, or Auto-Image & Follow.
4
Overscan — Set the amount (0, 2.5%, or 5%) of picture enlargement applied to each
video signal type for any SMPTE standard input.
5
Input Presets — Save up to 128 presets per input or recall one of those presets per
input, each with a combination of signal type, signal sampling, and picture controls.
6
User Presets — Save or recall up to 16 presets of picture controls per input.
7
SDI Settings (SMP3513G-SDI and 352 3G-SDI only) — Set the quantization range for
SDI signals from input 5.
Except for the overscan settings and input preset saving and recalling, the settings
on this page can also be configured using the front panel menu and controls (see the
SMP300SeriesEmbedded Web Pages Help File for more information).
60
