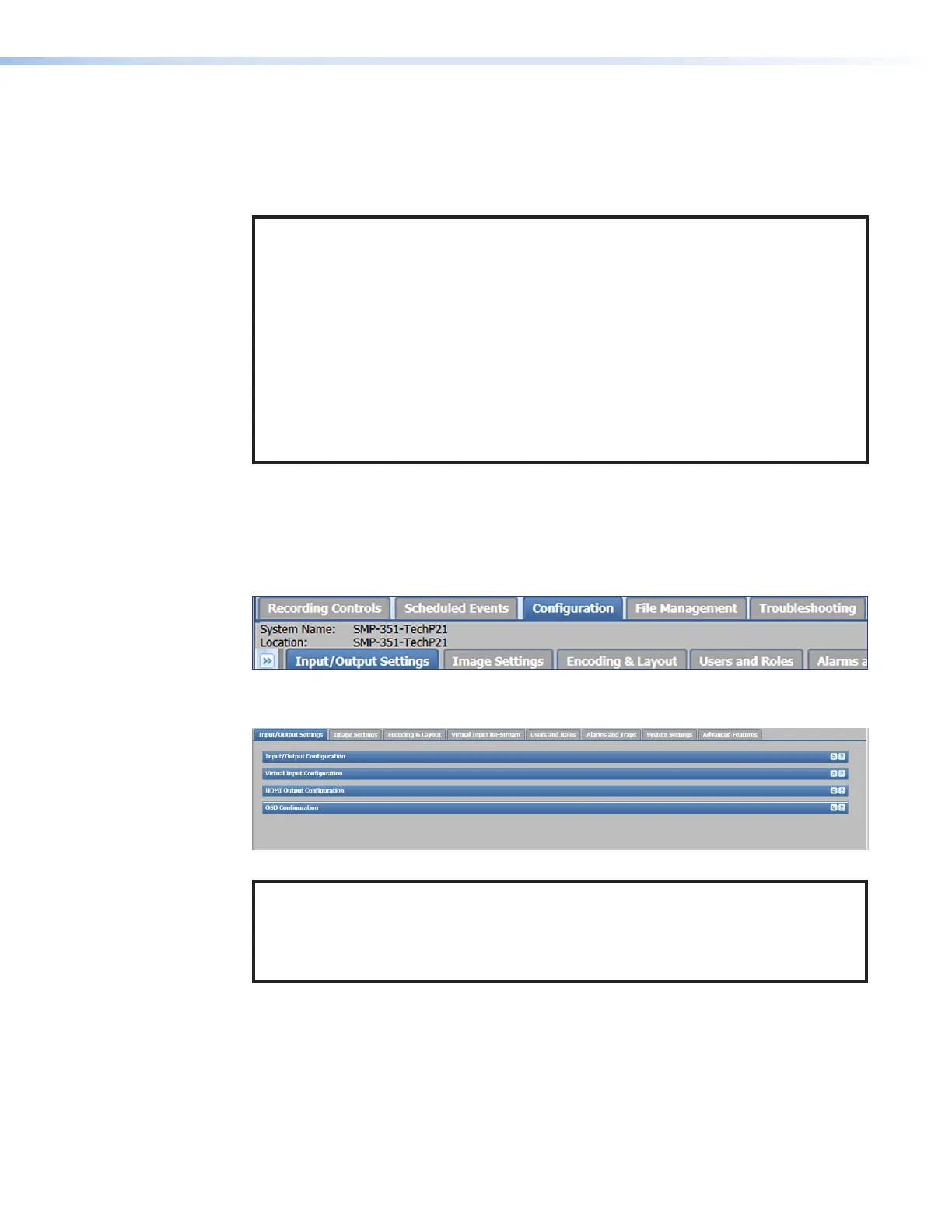

SMP300 Series • Web-Based User Interface 74
Input/Output Settings
The three expandable panels within Input/Output Settings allow an administrator to
select a number of settings for video input, test the output, and select options for audio
output format and mute. When using firmware v3.04 or higher, the virtual inputs are available
with a fourth panel to configure the additional two virtual inputs.
NOTES:
The SMP accepts up to two RTSP or Push ES/RTP multicast streams. It records
the two virtual inputs at its native resolution into m4v/mp4 files, and allows
re-streaming. In Dual channel mode, the SMP can record up to 4 files plus an
audio-only file.
The SMP does not decode and composite virtual inputs into a layout.
For this initial release of the virtual inputs, the SMP cannot connect to a virtual input
stream that requires password authentication.
Once the virtual input is turned on, the SMP connects with the incoming streams.
The virtual input status can be monitored from the web UI.
Some RTSP IP camera streams do not include RTCP packets and its packet
received or dropped status is always shown as zero on web UI.
This page includes audio configuration controls for each channel (A and B):
For the basic SMP 351 models, adjustments are for audio levels only.
For SMP 352 models or SMP 351 models with LinkLicense, adjustments can be made
to audio levels, filter and tone (bass and treble), and dynamic compression.
To open this page, click the Configuration > Input/Output Settings.
Figure 51. Input/Output Settings Sub-tab
The Input/Output Settings page opens (see figure52)
Figure 52. Input/Output Settings Page
NOTE: The selected input aspect ratio setting is applied to both the archive and
confidence outputs. If the confidence resolution is different, the applied aspect ratio
cannot be maintained. For example, if the archive resolution is 1080p with an aspect
ratio of 16:9, and the confidence display is 1024x768 with an aspect ratio of 4:3, the
input aspect ratio selection cannot be maintained for both.
Auto Image and Auto Memory
Select the checkbox to enable Auto-Image. Auto-Image simplifies setup by executing
image sizing, centering, and filtering adjustments with a single button push.
Select the checkbox to enable Auto Memory. Auto Memory recalls input and image settings
for signals that have previously been applied. When AutoMemory is disabled, the SMP300
Series treats every new input as a new source.
