OBID i-scan
®
System-Manual ID ISC.MR/PR/PRH101
FEIG ELECTRONIC GmbH Page 34 of 131 H60301-3e-ID-B.doc

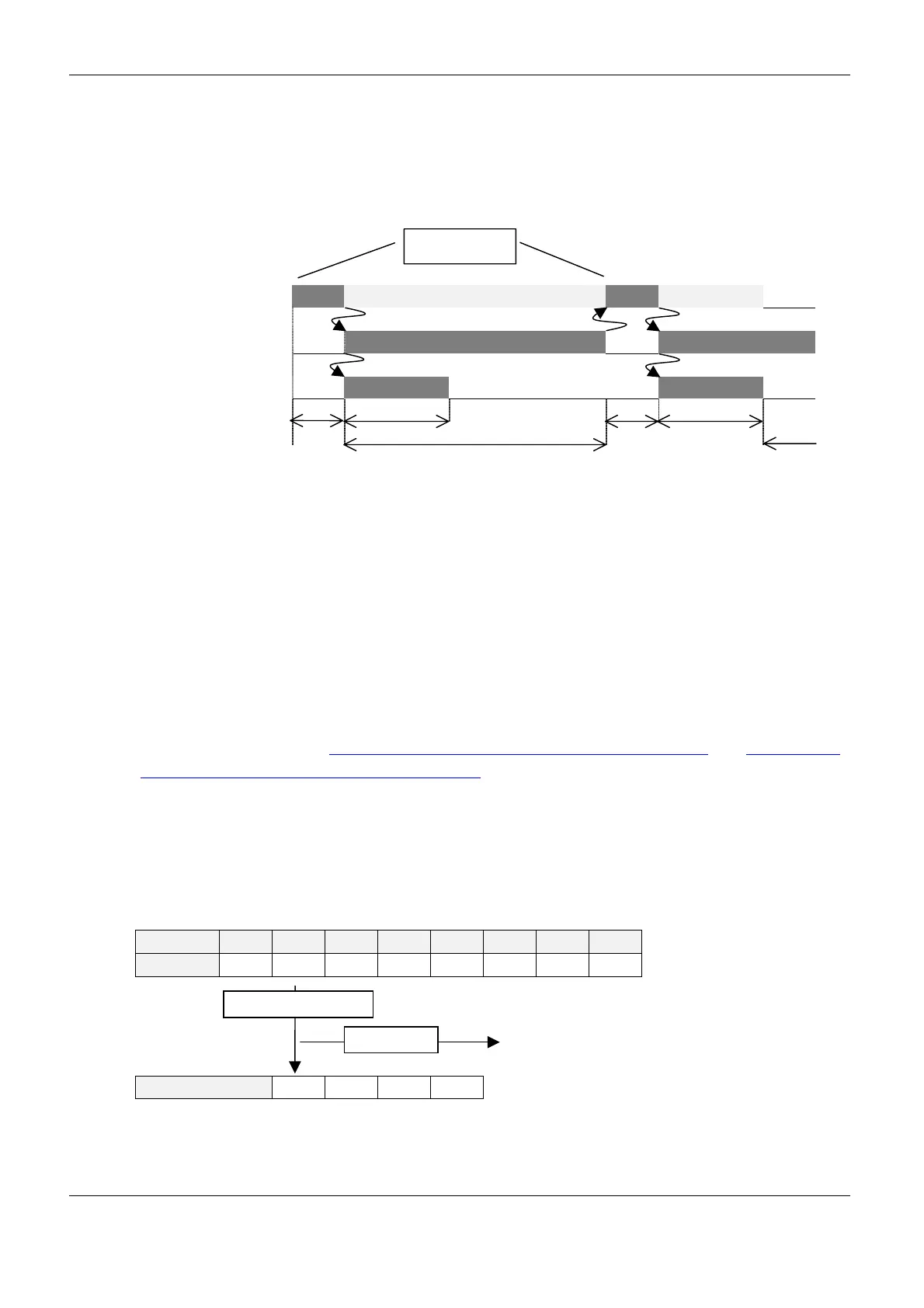

SCAN-LOCK-TIME: (1 ... 65535 * 100 ms = 100 ms ... 6553,5 sec)
The SCAN-LOCK-TIME defines the period in which the Reader does not transmit the Trans-
ponder data a second time, after it has transmitted it the first time. (regardless whether the
Transponder is in the detection range of the reader during SCAN-LOCK-TIME or not). The
SCAN-LOCK-TIME starts after the data transmission from the Transponder to the Reader.
Transponder in field
SCAN-LOCK-TIME
Data output
t
r
: Time to read the Transponder data
t
o
: Data Transmission from the Reader to the host
t
s
: SCAN-LOCK-TIME
As long as the SCAN-LOCK-TIME is active, the Transponder can be in the detection
range of the reader or outside of it.
DB-ADR:
Transponder address of the first data block which will be transferred in Scan-Mode.
Range: 0x00...0xFF.
See for valid addresses: ANNEX G: Memory Model I-Code 1 Transponders and 9.1. Suppo
r-
ted ISO15693 Host commands for ISO15693 Transponders
D-LGT:
D-LGT defines the length of raw data which are transmitted in the Scan-Mode.
Number of data bytes to be transferred, starting with the D-START.
Example:
data block
Byte 0 1 2 3 4 5 6 7
Data 0x01 0x23 0x45 0x67 0x89 0xAB 0xCD 0xEF
Output Data 0x23 0x45 0x67 0x89
D-START = 1
D-LGT = 4
start of read
t
t
t
o
t
s
t
o
t
s
