5. Parameter
5−79
Festo P.BE−CPX−CMAX−CONTROL−EN en 0908NH
Supply pressure
PNU PNU: 1141 Index: 1 Max index: 1 Class: Var Data type: int32
Values Unit: Pressure (index = 4)
Linear drive Semi−rotary drive
Dimension Default Minimum Maximum Dimension Default Minimum Maximum
SI 0,1 bar 60 30 100 0,1 bar 60 30 100
Imperial 1 psi 85 44 145 1 psi 85 44 145
Supply pressure applied to the valve.
o The parameter value cannot be changed.
ý Writing permissible only in commissioning/parametrising mode with disabled controller.
o This parameter can be written by FCT without higher−order controller.
ý After writing, controller recalculation is carried out.
Basic massload without workpiece
PNU PNU: 1142 Index: 1 Max index: 1 Class: Var Data type: int32
Values Unit: Mass (index = 5)
Linear drive Semi−rotary drive
Dimension Default Minimum Maximum Dimension Default Minimum Maximum
SI 0.1 kg 50 5 20.000 1 kg cm
2
50 1 2.000
imperial 1 lb 10 1 4.409 0.1 lb in
2
200 2 6.834
Basic mass or existing mass for all positioning tasks.

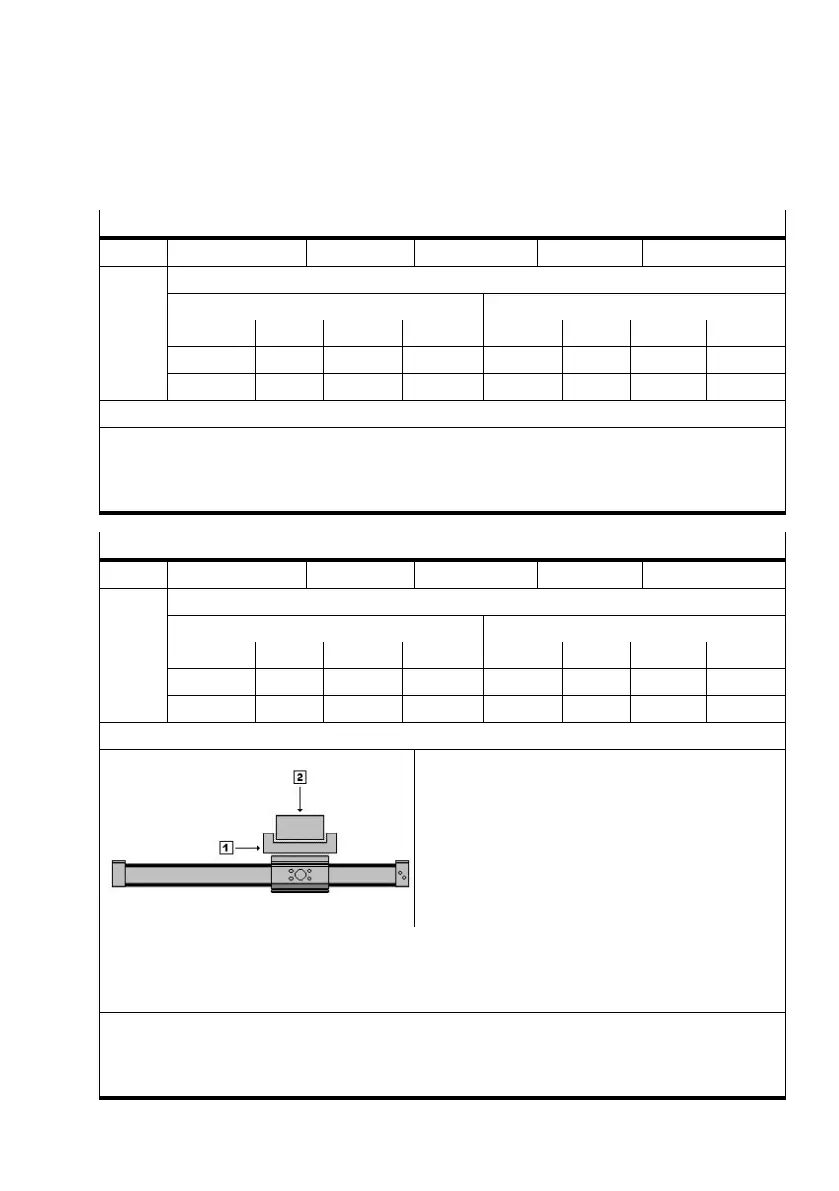

Calculation of the moving mass:
1 Moving mass without workpiece (PNU 1142)
This is the mass of the loading device fixed to the
slide. This mass must always be moved by the drive
(minimal mass to be moved).
2 Current workpiece mass (PNU 605/410/...)
If the drive also has to move workpieces of different
weights, this variable share must be defined as work
piece mass.
The CMAX calculates the sum of both mass data for every positioning process. The respective mass
is determined based on the specified variable workpiece mass (PNU 605 is the global default value).
However, it is also possible to specifiy the workpiece mass individually in each record (PNU 410), in
jog mode (PNU 536) and in direct mode (PNU 544 or 51).
o The parameter value cannot be changed.
ý Writing permissible only in commissioning/parametrising mode with disabled controller.
o This parameter can be written by FCT without higher−order controller.
ý After writing, controller recalculation is carried out.
