Festo CPX-CMAX-C1-1 User Manual

A. Notes on commissioning and service
A−6
Festo P.BE−CPX−CMA X−CONTROL−EN en 0908NH
Search for axis at
axis interface
Power on
Valve and measuring
system missing
Valve and measuring
system OK
Axis found Axis not found
Setpoint configuration
not yet available
Setpoint
configuration
available
Setpoint
configuration
available
Waiting for
system of
measurement
units
Controller
ready
PNU 1192:02 = 4 PNU 1192:02 = 0
Fault
PNU 1192:02 = 4
Waiting for
cylinder type
PNU 1192:02 = 1
Waiting for
axis data
PNU 1192:02 = 2
Movement
test
PNU 1192:02 = 3
Controller
ready
PNU 1192:02 = 4
PNU 1192:02 = 0
123
1
1 Initial start−up executed, CMAX ready
for operation
2 Faults see chapter 4
3 Status when switching on for the first
time (in delivery status or after data
reset) Waiting for initial start−up

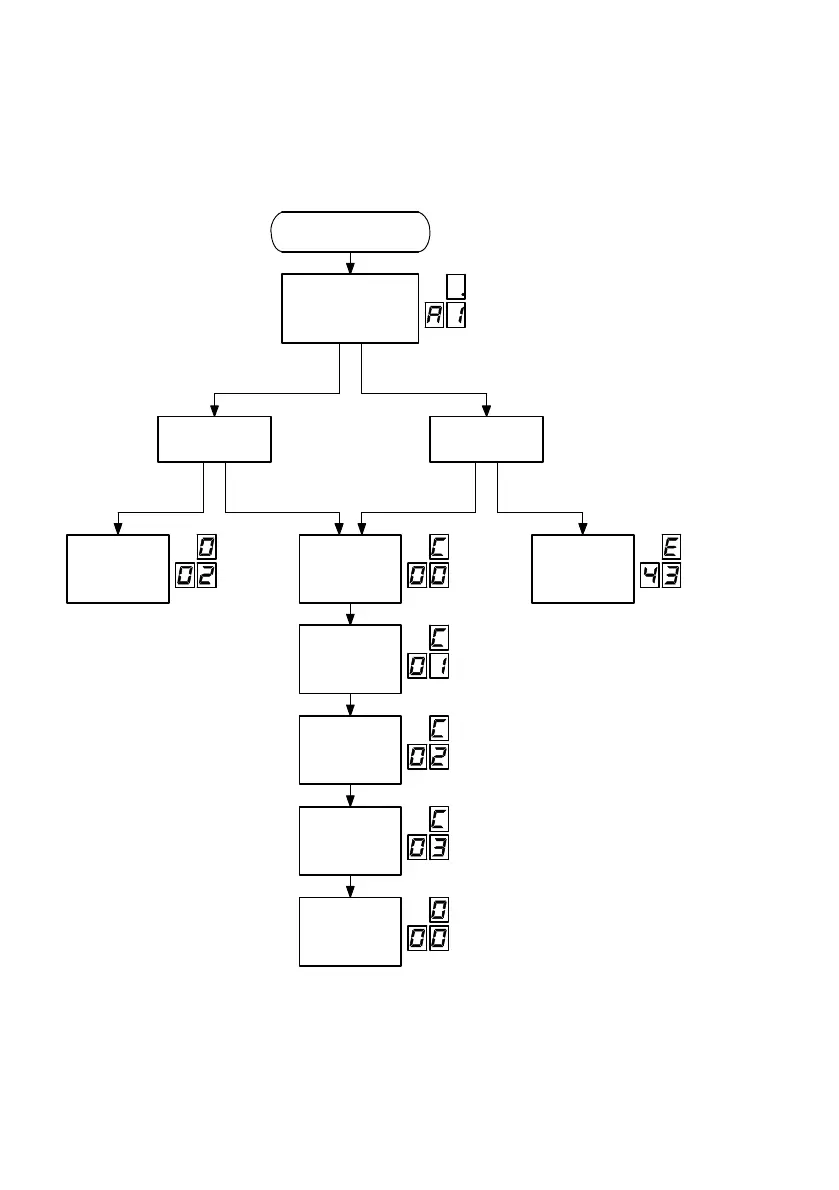

Fig.A/1: Switch−on behaviour
