A. Notes on commissioning and service
A−13
Festo P.BE−CPX−CMA X−CONTROL−EN en 0908NH
Step 3:
Define system of
measurement
units
5. Define a system of measurement units (PNU 1192:05).
1192:05 = 1 −> Metric / SI system
(metre, kilogramme, Newton, ...)
1192:05 = 2 −> Imperial system
(inch, pound, pound−force, ...)

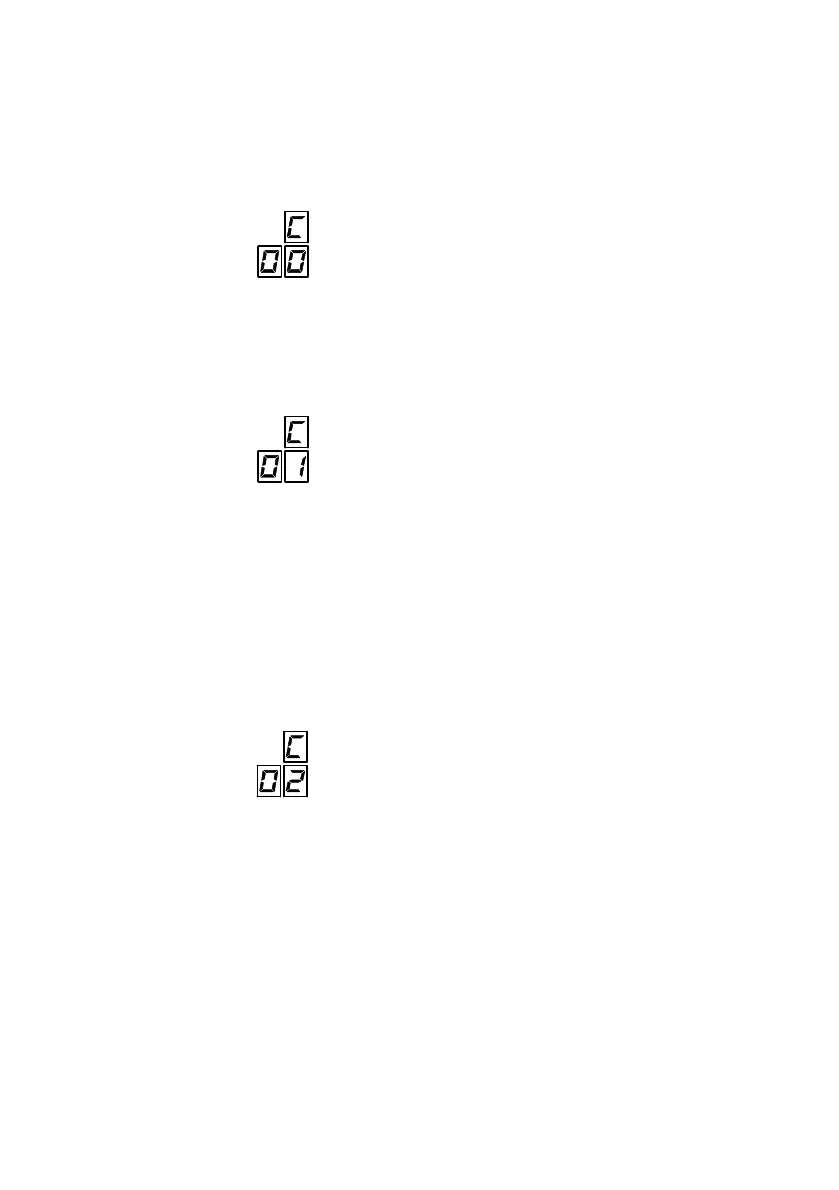

Writing the parameter sets the commissioning status
C01. This can be checked by reading the PNU 1192:02.
Step 4:
Write cylinder
type
6. Write cylinder type into the setpoint configuration
(PNU 1100:01). The cylinder type must correspond with
the value from the automatic hardware recognition. The
recognized value can be read from the actual configur
ation (PNU1190:01).
The cylinder type defines the system of measurement
units used. The CMAX now scales the length data from
the actual
configuration into the user’s system of measu
rement units and copies them to the setpoint configura
tion. Now all the parameters can be accessed.
Writing the parameter sets the commissioning status
C02. This can be checked by reading the PNU 1192:02.
Step 5:
Switch on block
download
7. Switch on block download (write PNU 1192:01 = 1)
During block download the controller is not recalculated.
The parameters are only checked for limit values during
writing. Dependencies between parameters are not chek
ked. This function permits loading parameters in any
order.
Example of dependent parameters: the software end
positions depend on the cylinder
length.
