Flexim FLUXUS F60 Series User Manual

7 Connection
FLUXUS F60* 7.2 FLUXUS *608
71
UMFLUXUS_F60xV5-0EN, 2017-10-16
7.2.4 Inputs (optional)
7.2.4.1 Temperature input
It is possible to connect temperature probes Pt100/Pt1000 (4-wire) to the inputs of the
transmitter (optional).
For the assignment and the activation of the temperature inputs, see chapter 14.
Notice!
For the connection, observe the specifications regarding the assignment of the
inputs given on the nameplate on the backside of the transmitter.
Notice!
The max. voltage between the inputs and the internal power supply of the transmit-
ter is 42 V DC (permanent).

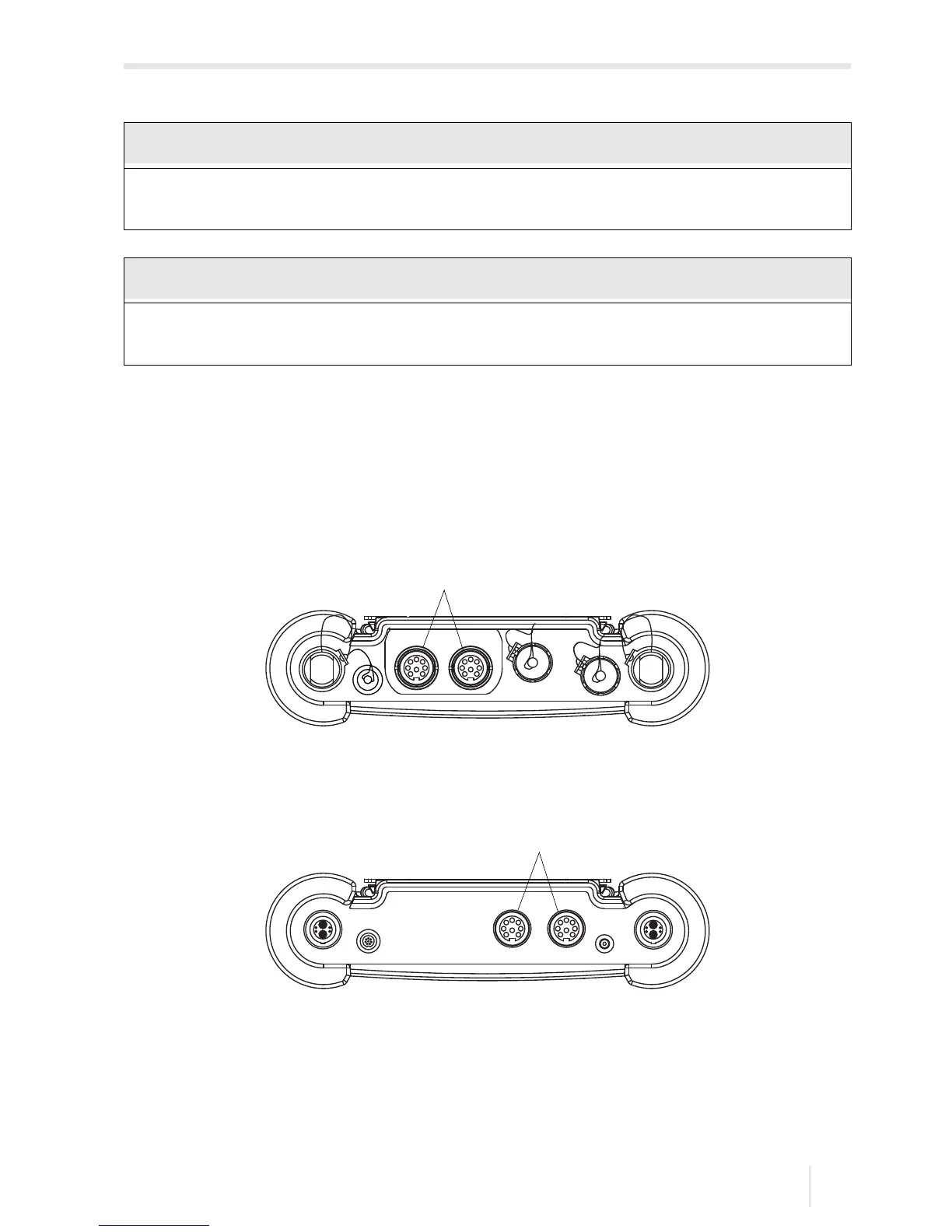

Fig. 7.24: Connections on the transmitter FLUXUS *608**-A2
1 – inputs
Fig. 7.25: Connections on the transmitter FLUXUS *608**-F2
1 – inputs
CH A
COMM
Input Output
CH B
DC-IN
1
CH A
COMM
Input
CH B
DC-IN
1
