30.2.3 BCD Cables
BCD cables provide a means to map the tuned frequency of the radio to a 4 or 5-bit Binary Coded
Decimal output representing specific bands.

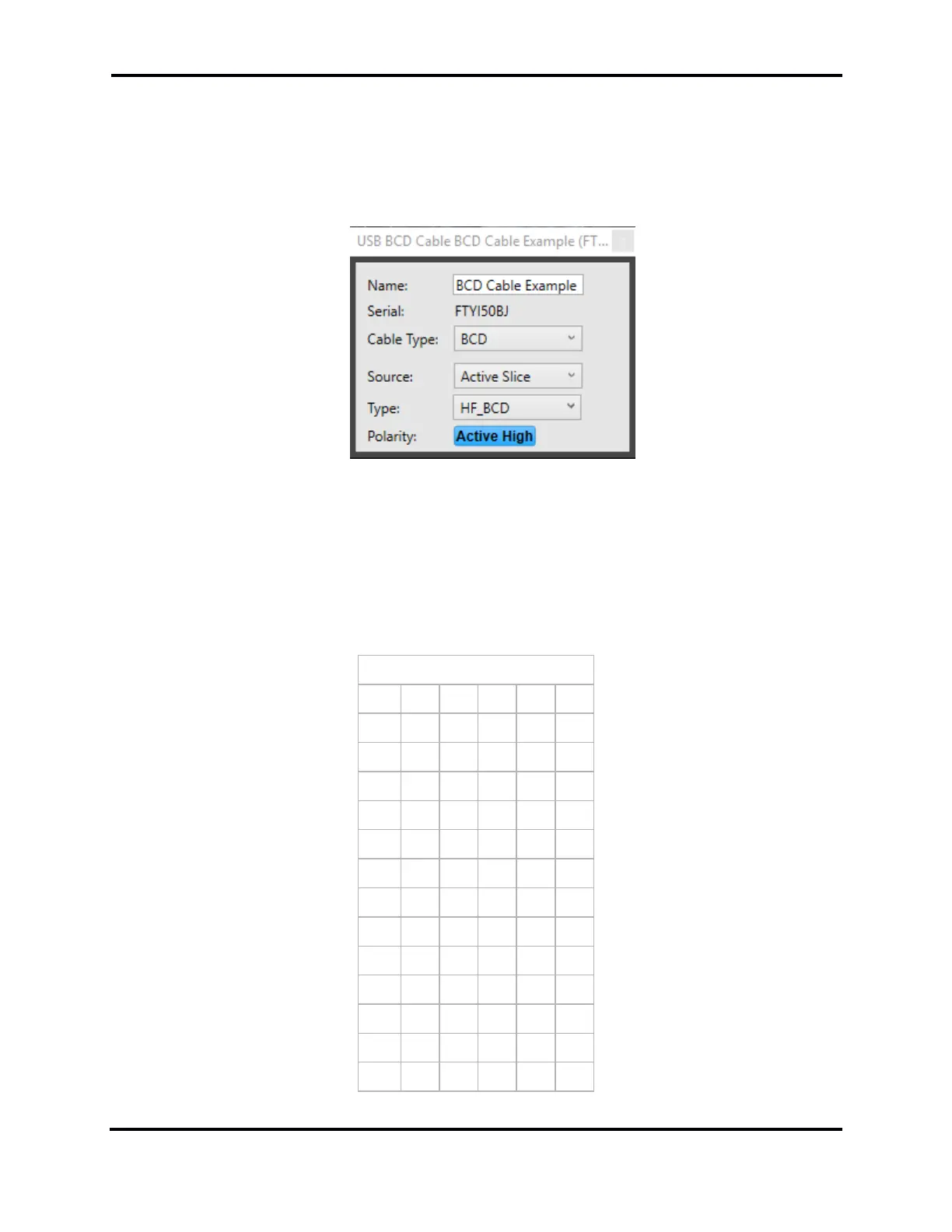

The BCD signal that appears on the cable is configured by use of the controls in the USB Cables menu:
• Source - Determines which source is used as the frequency check. The sources are the same
as for the CAT cables, listed above.
• Type – Specifies which of several available BCD mappings are generated by the cable:
o HF_BCD - Yaesu/Elecraft BCD band output
o VHF_BCD - Like HF_BCD but for VHF and higher bands
o HF_VHF_BCD - Combined HF and VHF output
BCD Output
Band
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
160
0
0
0
0
1
80
0
0
0
1
0
60
0
0
0
0
0
40
0
0
0
1
1
30
0
0
1
0
0
20
0
0
1
0
1
17
0
0
1
1
0
15
0
0
1
1
1
12
0
1
0
0
0
10
0
1
0
0
1
6
0
1
0
1
0
2
0
1
0
1
1
432
0
1
1
0
0
