FLEX-6000 Signature Series - SmartSDR for Windows Software User’s Guide

Page 49

14.3 TURNING ALL TRACKING NOTCH FILTERS ON OR OFF

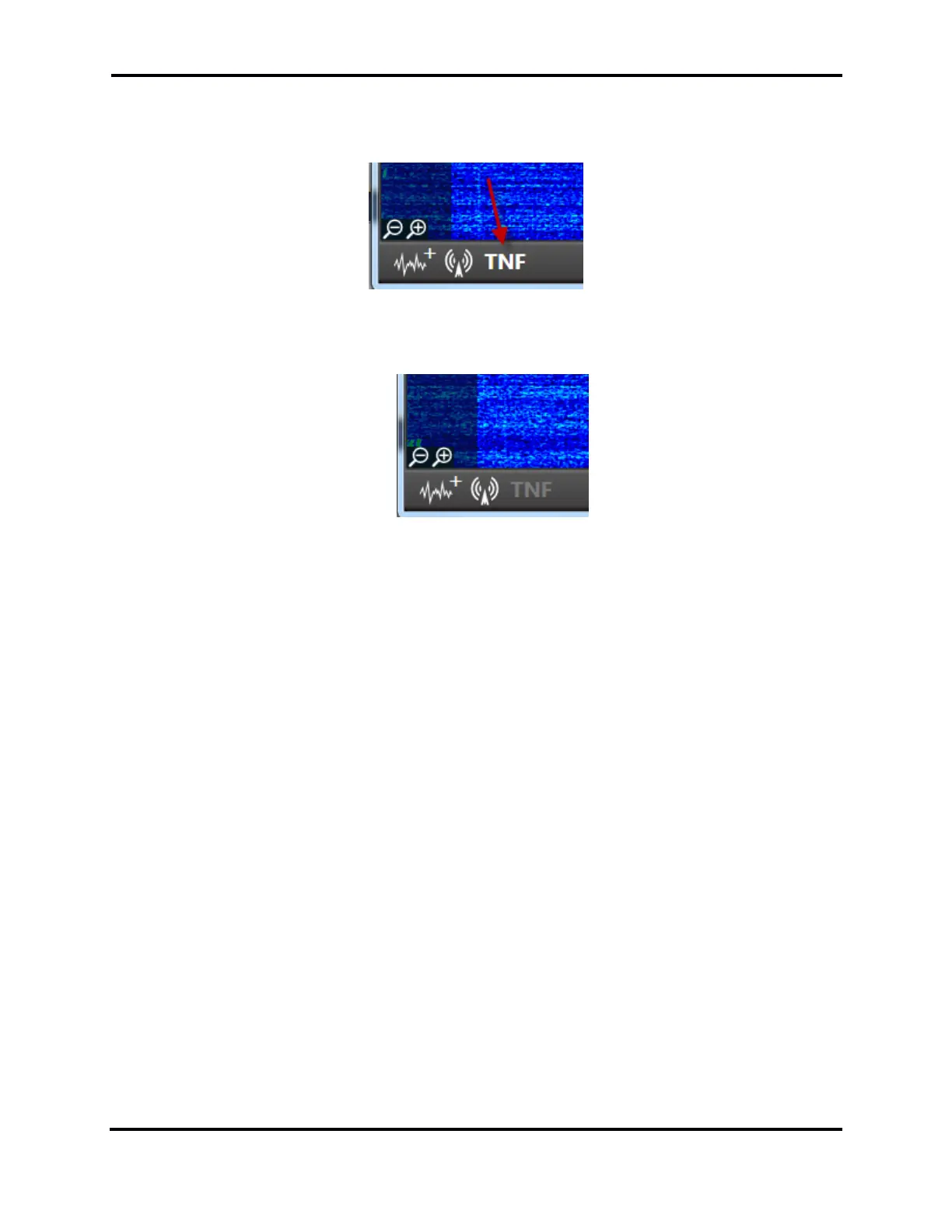

To disable all TNFs at the same time, click on the TNF icon in the bar at the bottom on SmartSDR:

When all TNFs are disabled, the TNF icon will “gray out” as shown below. To re-enable all TNFs, just

click on the button again.
