20 HOW TO OPERATE SINGLE SIDEBAND MODE (SSB)

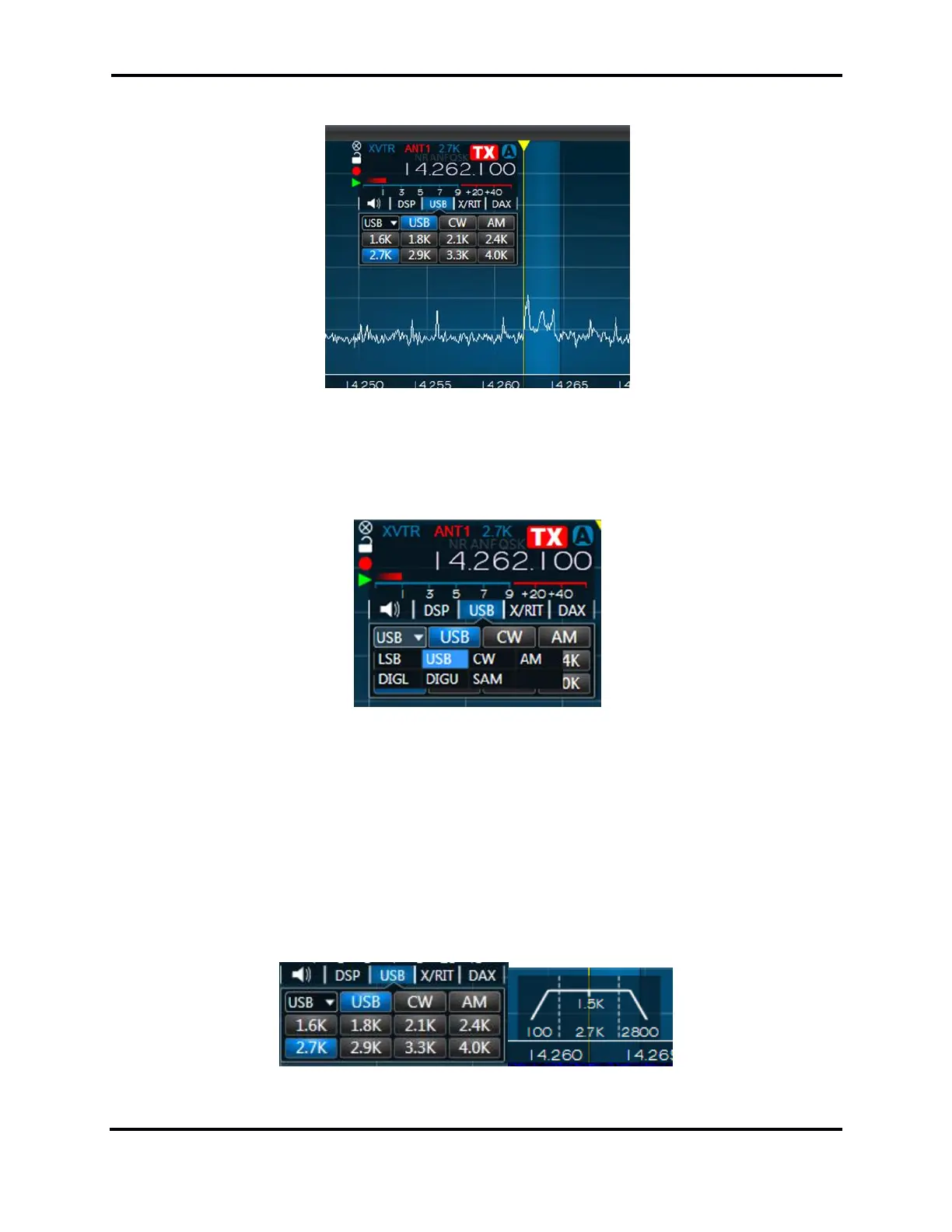

To use SmartSDR in SSB mode, select either USB or LSB in the slice mode control panel. This will bring
up the SSB specific controls in the transmit panel and show the associated receive filter presets. The
image above shows the Slice Receiver in USB mode. Conventional USB or LSB settings are
automatically selected for each band when the band selection panel is used.
To select the opposite SSB mode, click on the mode indicator as shown above. In this example, LSB
can then be selected from the drop-down menu to the left of the USB indicator.
In SSB modes, the slice carrier indicator line will be located to the left of the receiver passband for
USB and to the right for LSB. It shows exactly the location of your transmitted SSB suppressed carrier
frequency. If the slice is the active slice, the carrier indicator line will be displayed in yellow with a
triangular arrow at the top. All other Slices are displayed with no arrow and have red carrier
indicators.
20.1 HOW TO SELECT THE SSB RX FILTER BANDWIDTH
