FLEX-6000 Signature Series - SmartSDR for Windows Software User’s Guide
Page 181
Copyright 2018 FlexRadio Systems. All Rights Reserved.

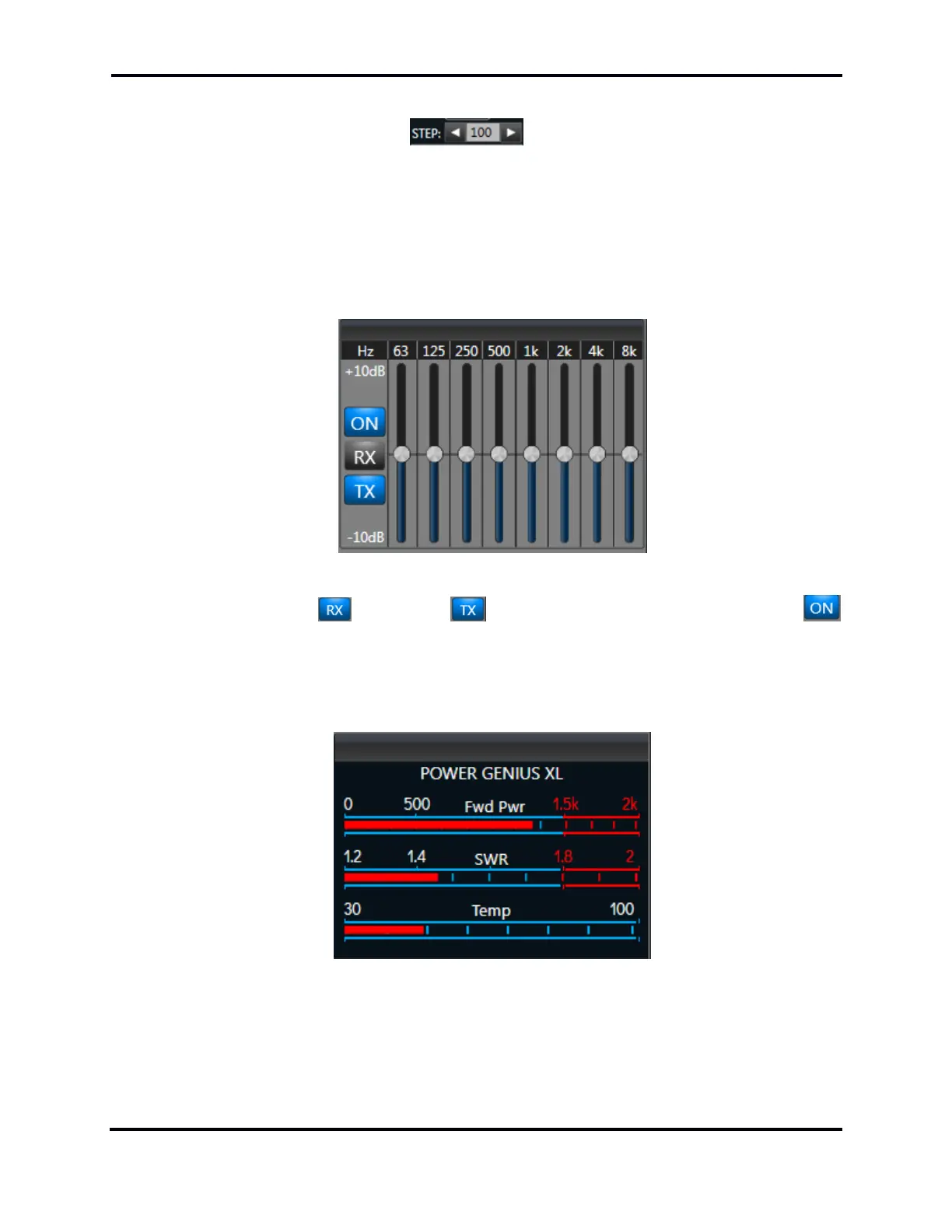

The Active Receiver Panel mirrors the controls of the active receiver. For a list of the controls and
their function see the Slice Flag Section of this manual. The tune step control is the only control that
does not also reside on the Slice Flag . You can adjust the size of your tune step by
clicking the right or left arrows. A custom tune step size can be entered into the display field and
enabled by pressing the <Enter> key. This will alter the step size of each click of the mouse wheel
and FlexControl. It will also change the snap tune function for drag tuning and click tuning. When a
slice is moved, it will automatically snap to the nearest round number at the chosen step size. This
information is remembered on a per-slice basis.
37.7.6 Equalizer Panel
The Equalizer Panel allows the user to adjust the receive and transmit equalization for the radio.
Toggle between Receive and Transmit by clicking on the corresponding button. The
will enable (Illuminated Blue) or disable (Grey) the equalizer. The eight sliders will adjust the
corresponding channel listed at the top of the panel. The slider allows for adjustments +/- 10 dB.
37.7.7 Power Genius XL Panel
When a Power Genius XL linear amplifier is connected to the radio, the Power Genius XL subpanel is
available in the Radio Control panel. The subpanel shows three meters:
• Forward Power: The output power of the amplifier, in watts, measured at the active output
terminal.
