2.1.3 Unit Weights
Table 2.2 - QX Unit Weights
Unit lb. kg
QX-1 40 18
QX-2 42 19
QX-3 80 36
QX-4 80 36
QX-5 80 36
NOTE: Weights include B4 stem nut and lubricant.
2.2 Product Identification
2.2.1 Initial Inspection and Recording Suggestions
Upon receipt of the actuator, several steps should be initially followed to ensure condition of equipment and to
establish proper record keeping.
1. After removing the actuator from the shipping carton or skid, thoroughly examine it for any physical damage
which may have occurred during shipment. If you note any damage, immediately report the damage to the
transport company and call Limitorque for further assistance.
2. A nameplate with important information is attached to each actuator. Record the following information for use
when you need to contact Limitorque with any questions about your actuator:
• Unit type/size
• Flowserve Limitorque order number
• Serial number

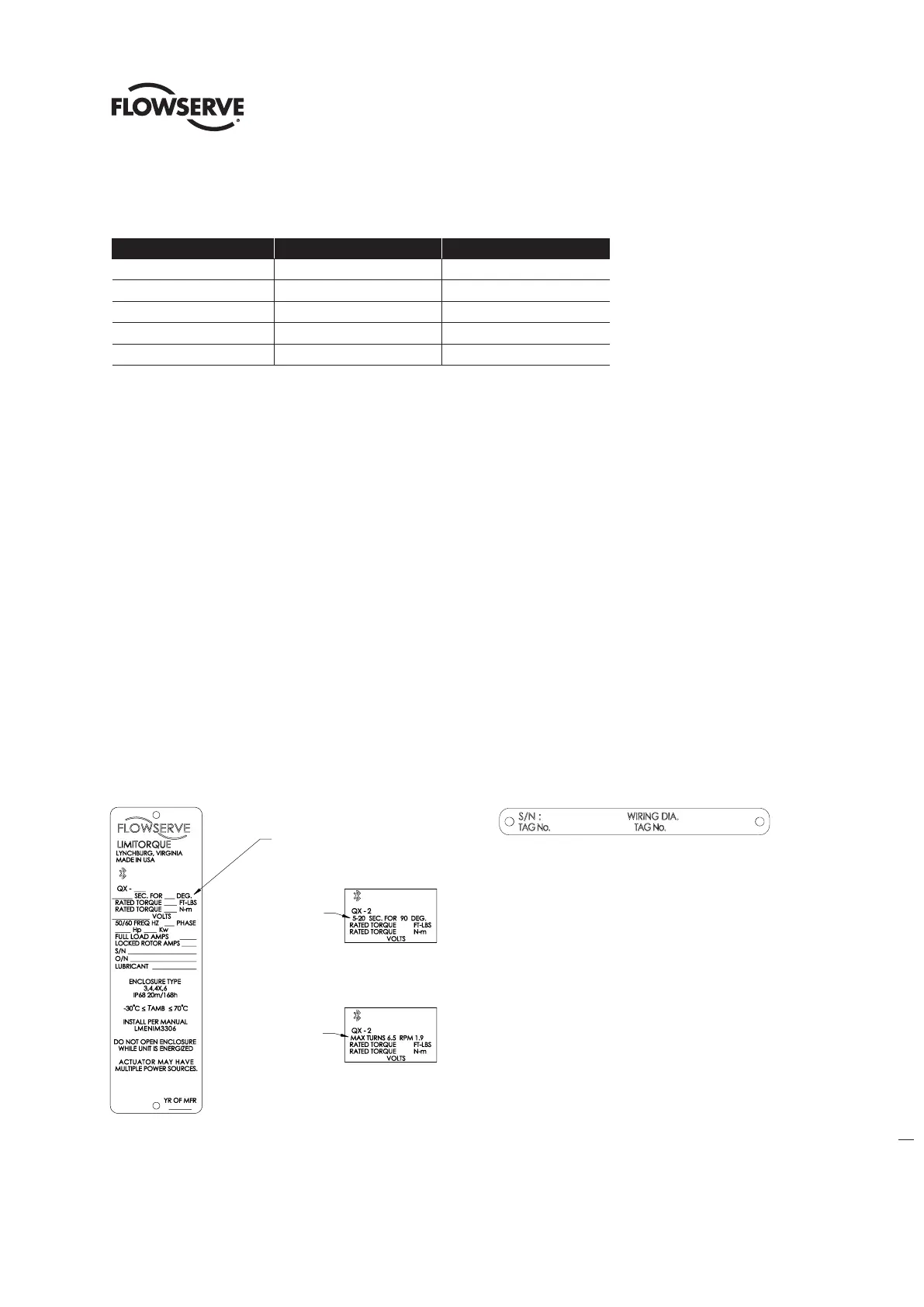

Figure 2.2 - QX Nameplate Figure 2.3 - QX Nameplate
SEE LINE EXAMPLES VIEWS
'PART TURN' AND 'MULTI TURN'.
EXAMPLE
PART TURN
PART TURN LINE
EXAMPLE
EXAMPLE
MULTI TURN
MULTI TURN LINE
EXAMPLE
