Flowserve Limitorque QX - Figure 4.5 - Handwheel Cover Subassembly, Item 10. QX-1 & 2; Table 4.4 - Handwheel Cover Subassembly Item 10. QX -1 & 2; Table 4.5 - Handwheel Cover Subassembly, Item 10. QX-3 Thru 5

25
Limitorque QX Electronic Actuator FCD LMENIM3314-01 – 06/18
flowserve.com
Table 4.4 - Handwheel Cover Subassembly Item 10. QX -1 & 2
ITEM NUMBER DESCRIPTION QTY.
10-1 COVER, HANDWHEEL 1
10-2 'O'-RING 1
10-3 SHAFT, HANDWHEEL 1
10-4 HANDWHEEL SUBASSEMBLY 1
10-5 RETAINING RING 1

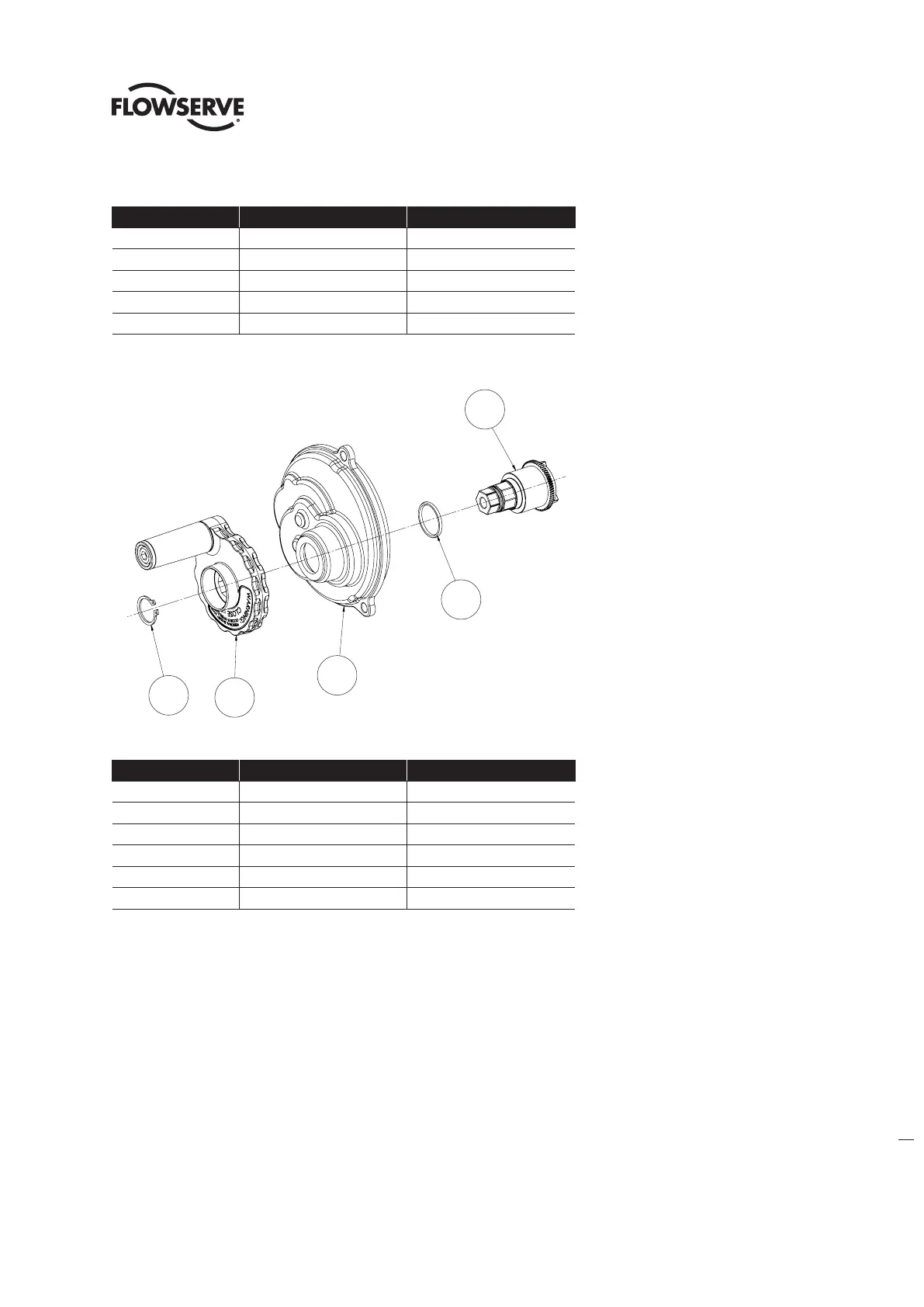

Figure 4.5 - Handwheel Cover Subassembly, Item 10. QX-1 & 2
Table 4.5 - Handwheel Cover Subassembly, Item 10. QX-3 thru 5
ITEM NUMBER DESCRIPTION QTY.
10-1 COVER, HANDWHEEL 1
10-2 'O'-RING 1
10-3 SHAFT, HANDWHEEL 1
10-4 HANDWHEEL SUBASSEMBLY 1
10-5 WASHER 2
10-6 HEX NUT 1
10-1
10-2
10-3
10-5
10-4
10-2
10-3
10-1
10-4
10-5
